Vehicle Onboard weighing load cell 15000kg Onboard Systems Load Cell

Vehicle Onboard weighing load cell 15000kg Onboard Systems Load Cell

    • Vehicle Onboard weighing load cell 15000kg Onboard Systems Load Cell
    • Vehicle Onboard weighing load cell 15000kg Onboard Systems Load Cell
  • Vehicle Onboard weighing load cell 15000kg Onboard Systems Load Cell

    Product Details:

    Place of Origin: China
    Brand Name: Forsentek
    Model Number: FHJ

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Packaging Details: Shockproof carton
    Delivery Time: 4-7 weeks
    Payment Terms: T/T, Western Union, MoneyGram,Paypal
    Supply Ability: 5000pcs/month
    Contact Now
    Detailed Product Description
    Material: Alloy Steel Capacity: 15t(15000kg)
    Output: Analog Output Principle: Strain Gauge Load Cell
    Usage: Vehicle Onboard Weighing

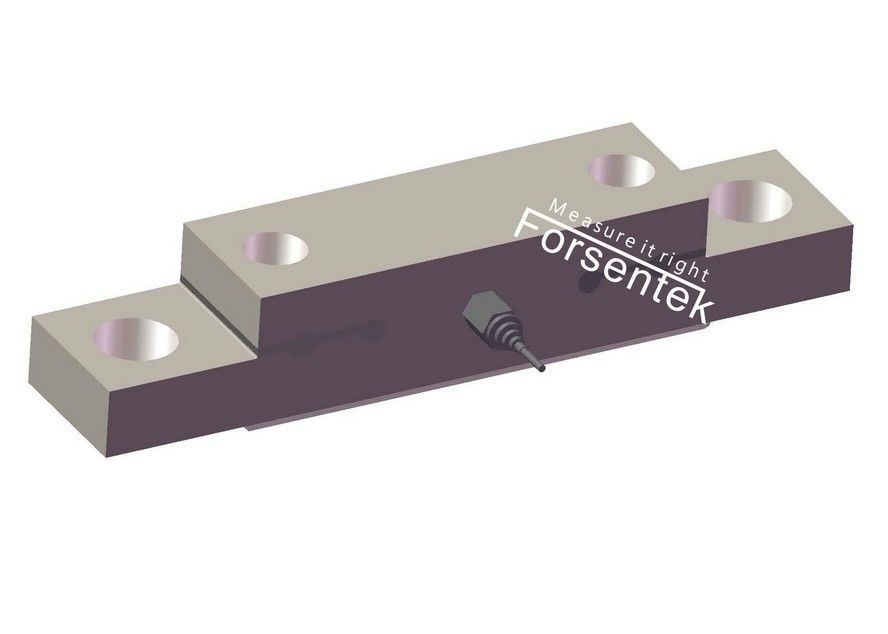

    Vehicle Onboard weighing load cell 15000kg Onboard Systems Load Cell

    Onboard weighing load cell for vehicle weighing systems.

    Customizable parameters including:

    1-Dimensions

    2-Material

    3-Measuring range

    4-Output signal(mV/V,0-5V,0-10V,4-20mA)

    Onboard weighing load cell

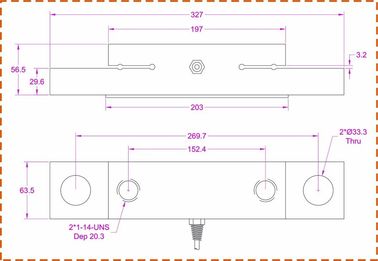

    Dimensions(Customizable)
    Onboard Systems Load Cell
    Specifications

    Rated capacity 15000kg(Customizable)
    Rated output 1.25±10%mV/V
    Excitation 3-15V
    Zero balance ±2% R.O.
    Nonlinearity ±0.5% R.O.
    Hysteresis ±0.5% R.O.
    Nonrepeatability ±0.5% R.O.
    Creep(10min) ±0.1% R.O.
    Safe overload 120% F.S.
    Ultimate overload 150% F.S.
    Compensated temperature -10...+40oC
    Operating temperature -35...+70oC
    Temperature shift zero ±0.01% R.O./oC
    Temperature shift span ±0.01% R.O./oC
    Input resistance 385±30 ohms
    Output resistance 352±5 ohms
    Insulation resistance >5000M ohms
    Ingress protection IP67
    Material of element Alloy steel
    Cable Ø5*10000mm 4-core shield cable
    Wiring code

    Red--Exc+ Black--Exc-
    Green--Sig+ White--Sig-
