    Product Details:

    Place of Origin: China
    Brand Name: Forsentek
    Model Number: FSRT

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Packaging Details: Shockproof carton
    Delivery Time: 3-25 working days
    Payment Terms: T/T, Western Union, MoneyGram,Paypal
    Supply Ability: 5000pcs/month
    Contact Now
    Detailed Product Description
    Material: Stainless Steel Capacity: 5kN 10kN 20kN 30kN 40kN 50kN 60kN 75kN
    Output: Analog Output Principle: Strain Gauge Load Cell
    Force Measure Direction: Tension And Compression

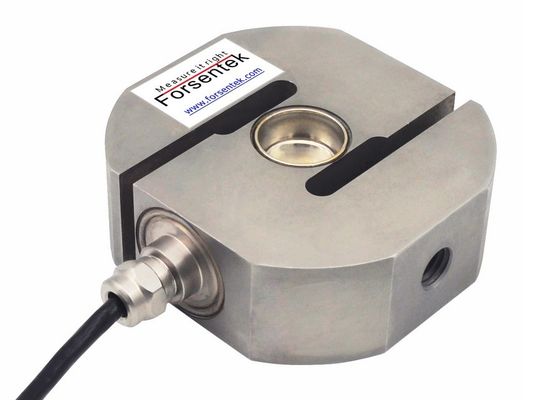

    40kN S-beam force sensor 50kN S-type force transducer 60kN s-shape load cell 75kN

    • Stainless steel construction
    • IP68 hermetically sealed for harsh working environments
    • Strain gauge based,unified 2.0mV/V output,high accuracy
    • Tension compression force measurement
    • Widely used for force gauges,hanging scales,suspended tank weighing,hopper scales,concrete batching equipment,batch scales,belt scales,laboratory testing equipment,material testing machines,etc..

    40kN S-beam force sensor 50kN
    Specifications

    Capacity

    500kg / 5kN

    1000kg / 10kN

    2000kg / 20kN

    3000kg / 30kN

    4000kg / 40kN

    5000kg / 50kN

    6000kg / 60kN

    7500kg / 75kN

    Rated output2.0 mV/V
    Excitation3-15V
    Zero balance±0.03mV/V
    Nonlinearity±0.017% R.O.
    Hysteresis±0.017% R.O.
    Nonrepeatability±0.01% R.O.
    Creep(30min)±0.017% R.O.
    Safe overload150% F.S.
    Ultimate overload300% F.S.
    Compensated temperature-10...+40oC
    Operating temperature-35...+65oC
    Temperature shift zero±0.02% R.O./10oC
    Temperature shift span±0.02% R.O./10oC
    Input resistance350±5 ohms
    Output resistance350±3 ohms
    Insulation resistance>5000M ohms
    Ingress protectionIP68
    Material of elementStainless steel
    Cable

    500kg---Ø5*3000mm
    1000kg~7500kg---Ø5*6000mm
    4-core shielded cable

    Wiring codeRed--Exc+ Black--Exc-
    Green---Sig+ White--Sig-



    40kN S-beam force sensor 50kN S-type force transducer 60kN s-shape load cell 75kN

    50kN S-type force transducer 60kN

    Dimensions(Unit in "mm")

    50kN s-shape load cell 75kN

    s-type load cell pdf
