Compression load cell 1000kN 500kN 300kN 200kN 100kN compression force measurement

Compression load cell 1000kN 500kN 300kN 200kN 100kN compression force measurement

    • Compression load cell 1000kN 500kN 300kN 200kN 100kN compression force measurement
    • Compression load cell 1000kN 500kN 300kN 200kN 100kN compression force measurement
    • Compression load cell 1000kN 500kN 300kN 200kN 100kN compression force measurement
  • Compression load cell 1000kN 500kN 300kN 200kN 100kN compression force measurement

    Product Details:

    Place of Origin: China
    Brand Name: Forsentek
    Model Number: FCM

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Packaging Details: Shockproof carton
    Delivery Time: 3-20 working days
    Payment Terms: T/T, Western Union, MoneyGram,Paypal
    Supply Ability: 5000pcs/month
    Contact Now
    Detailed Product Description
    Material: Alloy Steel Capacity: 5/10/20/30/50/70/100/200/250/300/500/600/800/1000KN
    Output: Analog Output Principle: Strain Gauge Load Cell
    Type: Compression Type Load Cell

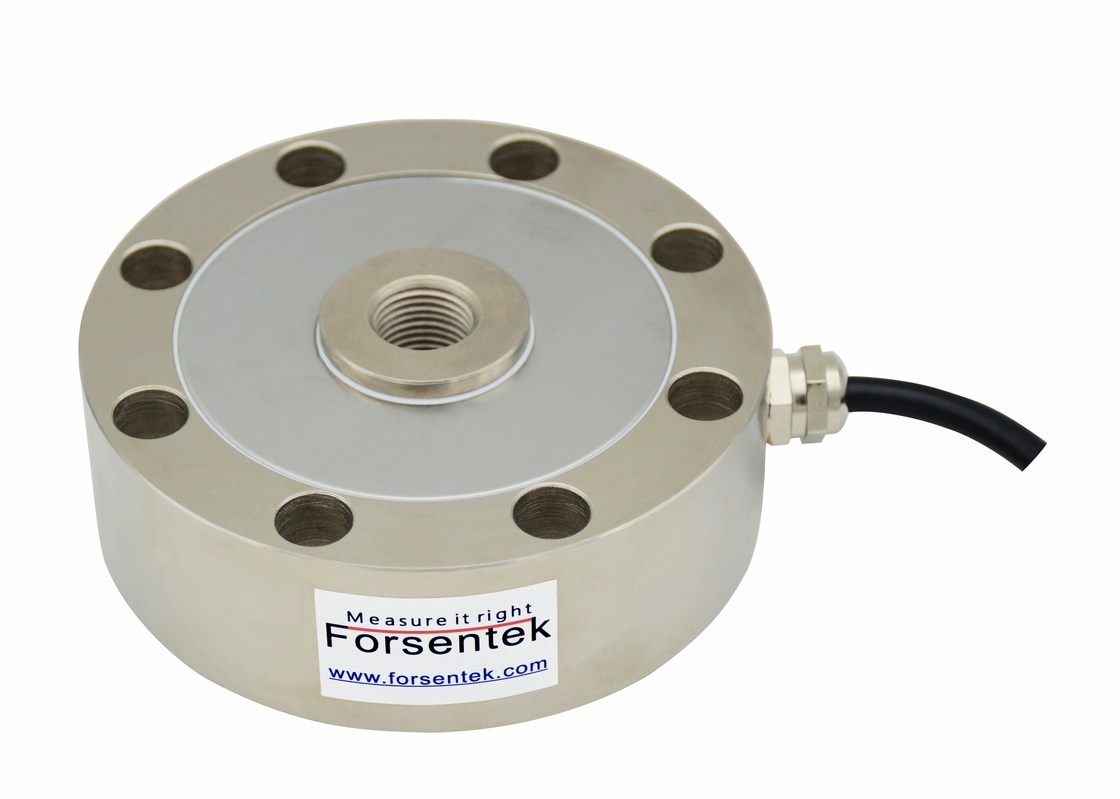

    Compression load cell 1000kN 500kN 300kN 200kN 100kN

    compression force measurement

    A load cell sensor is a transducer that converts a load or force acting on it into electronic signal which is proportional to the load(or force) being applied.The measured load or force causes deformation of the measuring element(elastic body),the bonded strain gauge deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply,the output signal between Sig+ and Sig- will change proportionally,thus the load/force can be measured by measuring the output signal from the load cell.Compression load cell FCM outputs millivolt signal ranging 0-30mV,and signal amplification may be required for most applications,a load cell signal transmitter can be used to get 0-5V,0-10V or 4-20mA signal for easy data acquisition afterwards.Weight indicator can be used to display the measured value,load cell display FPT is integrated with high accuracy 24 bit Sigma-Delta ADC,sampling speed up to 960Hz,supports RS485 or RS232 communication port,can also output 0-5V,0-10V,0-20mV or 4-20mA amplified signal.

    500kN compression load cell 1000kN
    Specifications

    Rated capacity

    5KN 10KN 20KN 30KN 50KN 70KN

    100KN 200KN 250KN 300KN 500KN

    600KN 800KN 1000KN

    Rated output  2.0 mV/V
    Excitation  3-15V
    Zero balance  ±2% of R.O.
    Nonlinearity

     ±0.05% of R.O.

    (>25t ±0.1% of R.O.)

    Hysteresis

     ±0.05% of R.O.

    (>25t ±0.1% of R.O.)

    Nonrepeatability

     ±0.05% of R.O.

    (>25t ±0.1% of R.O.)

    Creep(10min)  ±0.03% of R.O.
    Safe overload  150% of F.S.
    Ultimate overload  200% of F.S.
    Compensated temperature  -10...+40oC
    Operating temperature  -20...+60oC
    Temperature shift zero  ±0.05% R.O./10oC
    Temperature shift span  ±0.05% R.O./10oC
    Input resistance  400±30 ohms
    Output resistance  350±10 ohms
    Insulation resistance  >5000M ohms
    Ingress protection  IP66
    Material of element  Alloy steel
    Cable

    <10t Ø5*3000mm

    >7t Ø5*6000mm

    Wiring code

    Red--Exc+   Black--Exc-
    Green--Sig+ White--Sig-


    Compression load cell 1000kN 500kN 300kN 200kN 100kN compression force measurement

    300kN compression load cell 200kN

    Dimensions(in milimeter)

    50kN compression load cell 100kN

    compression load cell datasheet
