JR s-beam load cell 10N 20N 50N 100N 200N 300N 500N 1kN miniature force sensor

JR s-beam load cell 10N 20N 50N 100N 200N 300N 500N 1kN miniature force sensor

    • JR s-beam load cell 10N 20N 50N 100N 200N 300N 500N 1kN miniature force sensor
    • JR s-beam load cell 10N 20N 50N 100N 200N 300N 500N 1kN miniature force sensor
    • JR s-beam load cell 10N 20N 50N 100N 200N 300N 500N 1kN miniature force sensor
    • JR s-beam load cell 10N 20N 50N 100N 200N 300N 500N 1kN miniature force sensor
  • JR s-beam load cell 10N 20N 50N 100N 200N 300N 500N 1kN miniature force sensor

    Product Details:

    Place of Origin: China
    Brand Name: Forsentek
    Certification: CE
    Model Number: FSSM

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Packaging Details: Shockproof carton
    Delivery Time: 3-20 working days
    Payment Terms: T/T, Western Union, MoneyGram,Paypal
    Supply Ability: 3620pcs/month
    Contact Now
    Detailed Product Description
    Structure: JR S-beam Load Cell Capacity: 10N 20N 50N 100N 200N 300N 500N 1000N
    Output: Analog Transducer Type: Miniature Force Sensor
    Force Direction: Tension And Compression

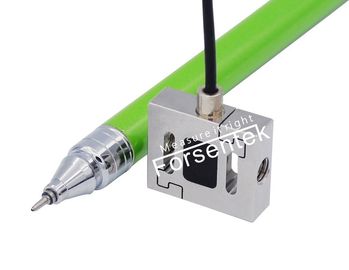

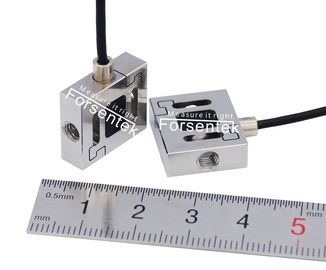

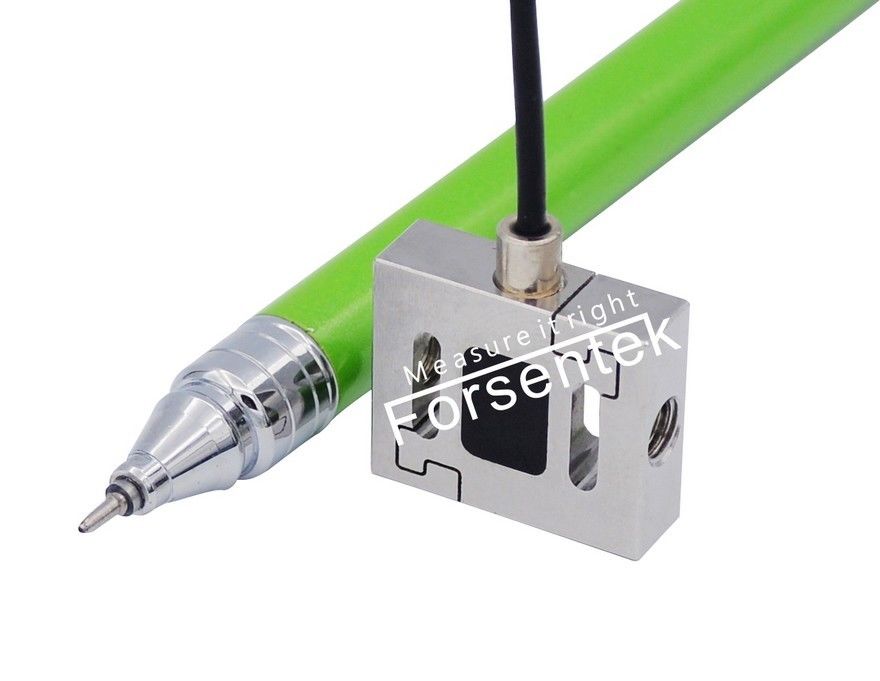

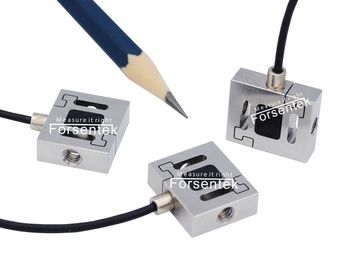

    JR s-beam load cell 10N 20N 50N 100N 200N 300N 500N 1kN miniature force sensor

    Forsentek miniature jr s-beam force transducer FSSM offers a compact design for a variety of applications. the S Beam Load Cell series provides accuracy, compact design features, and a wide capacity range from 10N to 1000N to choose from.The mini load cell FSSM utilizes metal foil strain gauge technology to deliver 2.0mV/V output with maximum 0.1% non-linearity,the compact design enables the FSSM to be easily embedded into machinery or test equipment – ideal for packaging machinery, assembly machinery or end-of-line test equipment.The sensor features threaded holes on two sides for the mounting of attachments or implements,this micro force sensor can be used for both tension and compression force measurement in applications with limited space.You may find junior S beam load cell FSSM interchangeable with FUTEK load cell LSB200,Mark Miniature Force Sensors Series R04,flintec s-beam force sensor ISA,flintec force transducer ISB,etc..A force sensor is a transducer that converts force acting on it into electronic signal which is proportional to the applied force.The acting force causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply,the output signal between Sig+ and Sig- will change proportionally,thus the force can be measured by measuring the output signal from the load cell.Tension and compression force transducer FSSM is designed to measure force in both tension and compression direction,outputs millivolt signal ranging -30~30mV, and signal amplification may be required for most applications, a load cell signal conditioner can be used to get -5~5V, 0-10V or 4-20mA signal which is proportional to applied force.The amplified output is can be easily processed by PLCs and data acquisition software.The force can be displayed through force indicator,force meter FPT is integrated with high accuracy/low noise 24 bit Sigma-Delta ADC,sampling speed up to 960Hz makes it suitable for both static and dynamic measurement;FPT also supports Modbus RTU protocol with RS485 or RS232 communication port,amplified signal 0-5V,0-10V,0-20mV or 4-20mA is also achievable from FPT.

    JR s-beam load cell

    Specifications

    Capacity 10N / 1kgf / 2.2 lbf
    20N / 2kgf / 4.4 lbf
    50N / 5kgf / 11.2 lbf
    100N / 10kgf / 22.4 lbf
    200N / 20kgf / 45 lbf
    300N / 30kg / 67 lbf
    500N / 50kgf / 112 lbf
    1kN / 100kgf / 224 lbf
    Rated output 2.0mV/V
    Excitation 3-12V
    Zero balance ±0.05mV/V
    Nonlinearity ±0.1% R.O.
    Hysteresis ±0.1% R.O.
    Nonrepeatability ±0.05% R.O.
    Creep(5min) ±0.1% R.O.
    Safe overload 150% F.S.
    Ultimate overload 200% F.S.
    Compensated temperature -10...+40oC
    Operating temperature -20...+60oC
    Temperature shift zero ±0.03% R.O./oC
    Temperature shift span ±0.02% R.O./oC
    Input resistance 380±30 ohms
    Output resistance 350±5 ohms
    Insulation resistance >2000M ohms
    Ingress protection IP62
    Material of element Stainless steel
    Cable Ø2*4000mm 4-core shielded
    Wiring code

    Compression@
    Red--Excitation+ Black--Excitation-

    Green--Signal+ White--Signal-



    Miniature s-beam force sensor 10N 20N 50N 100N 200N 300N 500N 1000N

    jr s-beam force sensor

    Dimensions(in milimeter)

    futek load cell LSB200

    Click here to download datasheet
