Motor rotating torque transducer 0-500Nm for servo motor test bench
Rotary torque transducer FY01 is a transducer that converts a torsional mechanial input into an electrical output signal,torque transducer FY01 is CE certified with 0-10NM / 0-20NM / 0-30NM / 0-50NM / 0-100NM / 0-200NM / 0-300NM / 0-500NM eight measuring ranges to choose from.Built-in wheatstone bridge delivers mV/V output with maximum 0.2% non-linearity of the full scale. Keyed shafts located on both ends of the sensor can be connected to motor and load through couplings.Rotating speed of model FY01 can go up to 4000RPM,it is also suitable for non-rotating and low-speed torque measurement applications.Signal conditioner and torque meter is also available to get the readout and 0-5V/0-10V/4-20mA output.Typical applications for this type of torque transducer are for example servo motor torque measurement, test bench applications, valve torque test, torque measurement for stirring devices, screw driver calibration, twist measurement, actuator test,etc..

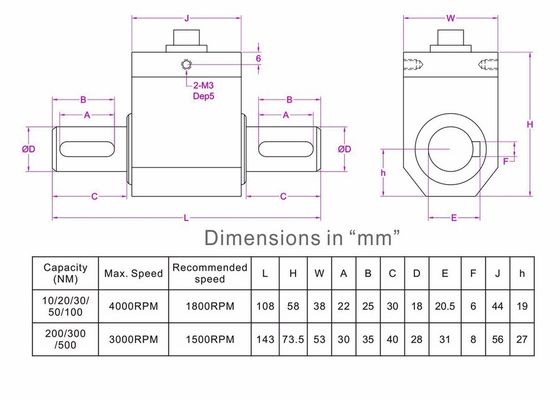

Dimensions
| Ordering code of rotary torque sensor FY01 | ||
|---|---|---|
| Part No. | Torque measuring range | Torque measurement direction |
| FY01-10NM | 0~10NM | Clockwise and anticlockwise |
| FY01-20NM | 0~20NM | |
| FY01-30NM | 0~30NM | |
| FY01-50NM | 0~50NM | |
| FY01-100NM | 0~100NM | |
| FY01-200NM | 0~200NM | |
| FY01-300NM | 0~300NM | |
| FY01-500NM | 0~500NM | |
Specifications
| Capacity |
10NM 20NM 30NM 50NM 100NM 200NM 300NM 500NM |
| Rated output | 1.5 mV/V |
| Excitation | 3-15V |
| Zero balance | ±2% R.O. |
| Nonlinearity | ±0.15% R.O. |
| Hysteresis | ±0.15% R.O. |
| Nonrepeatability | ±0.05% R.O. |
| Creep(5min) | ±0.1% R.O. |
| Safe overload | 120% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temp. | -10...+40oC |
| Operating temp. | -20...+60oC |
| Temp. shift zero | ±0.01% R.O./oC |
| Temp. shift span | ±0.01% R.O./oC |
| Input resistance | 350±30 ohms |
| Output resistance | 350±10 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP50 |
| Material of element | Stainless steel |
| Cable | Ø5.5*3000mm 4-core shielded |
| Wiring code |
Red--Exc+ Green--Exc- Green--Sig+ White--Sig- |
