Rod end load cell 5000kg 2000kg 1000kg 500kg in line loadcell

Rod end load cell 5000kg 2000kg 1000kg 500kg in line loadcell

    • Rod end load cell 5000kg 2000kg 1000kg 500kg in line loadcell
    • Rod end load cell 5000kg 2000kg 1000kg 500kg in line loadcell
    • Rod end load cell 5000kg 2000kg 1000kg 500kg in line loadcell
  • Rod end load cell 5000kg 2000kg 1000kg 500kg in line loadcell

    Product Details:

    Place of Origin: China
    Brand Name: Forsentek
    Certification: CE
    Model Number: FLR

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Packaging Details: Shockproof carton
    Delivery Time: 3-20 working days
    Payment Terms: T/T, Western Union, MoneyGram,Paypal
    Supply Ability: 5000pcs/month
    Contact Now
    Detailed Product Description
    Type: Threaded Rod End Load Cell Capacity: 50kN 30kN 20kN 10kN 5kN
    Output: Analog Sensor Structure: In-line Force Transducer
    Connection: M24 Thread

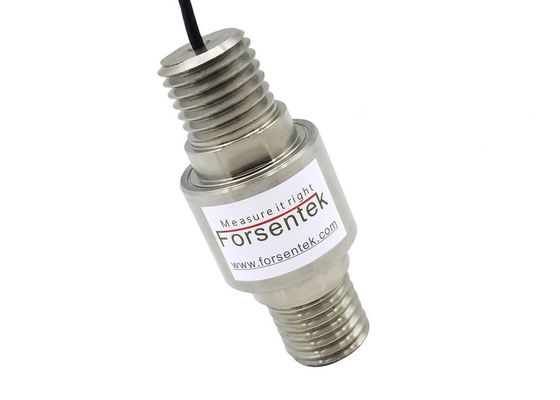

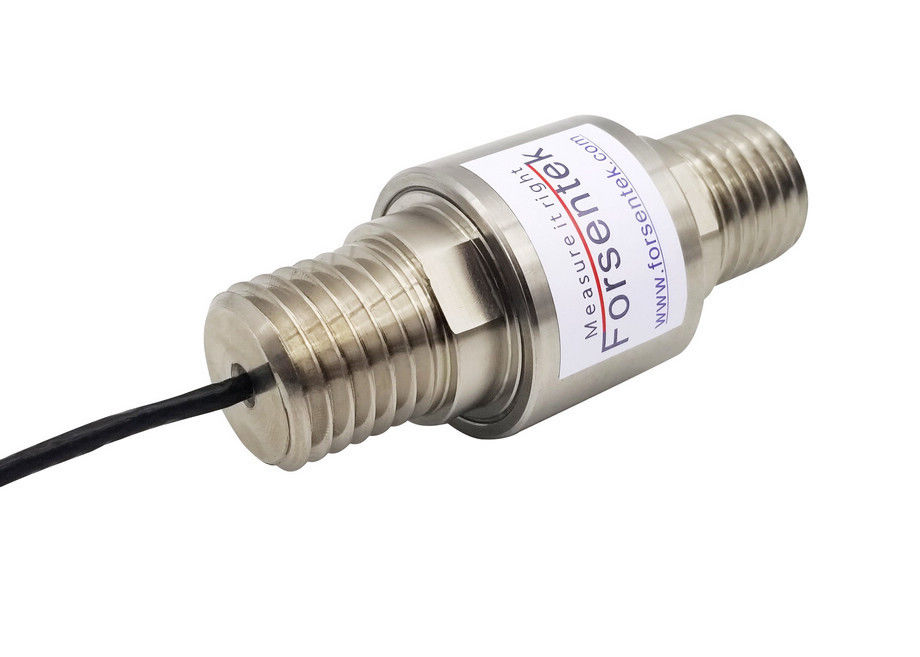

    Rod end load cell 50kN 30kN 20kN 10kN 5kN in line type force sensor

    Rod end load cell FLR is strain gauge based intended for both tension and compression force measurement, inline force sensor FLR offers 0~5kN / 0~10kN / 0~20kN / 0~30kN / 0~50kN five measuring ranges to choose from.M24 metric threaded rods located on both ends enables transducer FLR to be easily embedded into mechanical shaft.Stainless steel construction,compact design,you may find in line force transducer applicable for  tension/compression force measurement applications with limited mounting space.The standard FLR in-line load cell can be modified or customized to meet your requirements.

    in_line_load_cell_5000kg_2000kg_1000kg_500kg

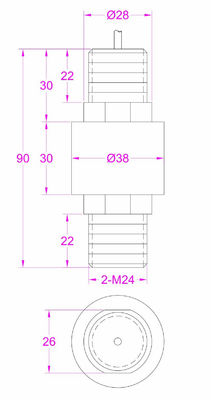

    Dimensions

    in_line_load_cell_50KN_30KN_20KN_10KN_5KN

    Specifications

    Capacity

    50kN 30kN 20kN 10kN 5kN

    (5000kg 3000kg 2000kg 1000kg 500kg)

    Rated output 1.5 mV/V
    Excitation 3-15 V
    Zero balance ±0.1mV/V
    Nonlinearity ±1% R.O.
    Hysteresis ±1% R.O.
    Nonrepeatability ±0.5% R.O.
    Creep(5min) ±0.2% R.O.
    Safe overload 150% F.S.
    Ultimate overload 200% F.S.
    Compensated temperature -10...+40oC
    Operating temperature -20...+60oC
    Temperature shift zero ±0.05% R.O./oC
    Temperature shift span ±0.05% R.O./oC
    Input resistance 385±50 ohms
    Output resistance 350±5 ohms
    Insulation resistance >5000M ohms
    Ingress protection IP62
    Material of element Stainless steel
    Cable Ø3*3000mm 4-core shielded
    Wiring code

    Red--Excitation+ Black--Excitation-

    Green--Signal+ White--Signal-



    Rod end load cell 50kN 30kN 20kN 10kN 5kN in line type force sensor

    Rod_end_load_cell_500kg_1000kg_2000kg_3000kg

    Click here to download datasheet
