Load cell signal amplifier 0-5V/0-10V/4-20mA load cell conditioner

Load cell signal amplifier 0-5V/0-10V/4-20mA load cell conditioner

    • Load cell signal amplifier 0-5V/0-10V/4-20mA load cell conditioner
    • Load cell signal amplifier 0-5V/0-10V/4-20mA load cell conditioner
    • Load cell signal amplifier 0-5V/0-10V/4-20mA load cell conditioner
  • Load cell signal amplifier 0-5V/0-10V/4-20mA load cell conditioner

    Product Details:

    Place of Origin: China
    Brand Name: Forsentek
    Model Number: FSC

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Packaging Details: Shockproof carton
    Delivery Time: 1-7 working days
    Payment Terms: T/T, Western Union, MoneyGram,Paypal
    Supply Ability: 5000pcs/month
    Contact Now
    Detailed Product Description
    Housing: Aluminum Power: 24V DC/12V DC
    Excitation For Load Cell: 5V DC Type: Analog Type

    Load cell signal amplifier 0-5V/0-10V/4-20mA load cell conditioner

    Analog load cell amplifier FSC can work with all our load cell sensors and torque transducers with mV/V configuration to deliver -5-5V / 0-3.3V / 0-5V / 0-10V / 0-20mA / 4-20mA for further data acquisition.Analog load cell conditioner FSC is mainly used for single load cell signal amplification, using Zero adjustment and Gain adjustment for signal calibration. Mating connector along with 1m-long cable is provided for easy connection.

    load_cell_signal_conditioner_with_0-5V_output

    Specifications

    Function Turn mV signal into V or mA signal
    Accuracy 0.1%
    Power supply 24V DC or 12V DC
    Output signal -5-5V,-10-10V,0-5V,0-10V,4-20mA,0-20mA
    Excitation for load cell 5V DC
    Applicable sensitivity 0.6mV/V~3mV/V
    Working temperature -10...+60oC
    Material of housing Aluminum
    Ingress protection IP50
    Cable Ø5*1000mm cable with mating connector
    Wiring

    3-wire connection

    Red---Power+

    Green---Output+

    Black---Power-/Output-



    Wiring example for load cell with amplifier FSC

    load-cell-with-signal-conditioner

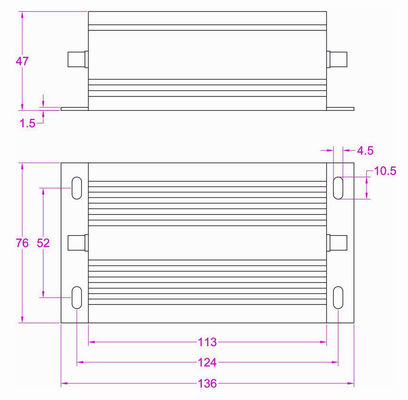

    Dimensions(in mm)

    load_cell_signal_amplifier_0-10V_output

    load_cell_signal_amplifier_pdf
