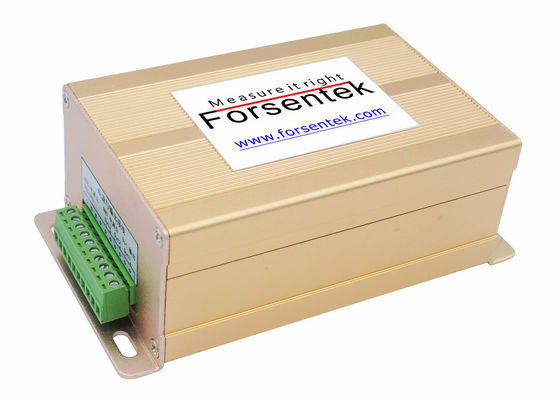

Multi-channel load cell amplifier 0-5V 0-10V 4-20mA with 4 inputs and 4 outputs

Multi-channel load cell amplifier 0-5V 0-10V 4-20mA with 4 inputs and 4 outputs

    • Multi-channel load cell amplifier 0-5V 0-10V 4-20mA with 4 inputs and 4 outputs
    • Multi-channel load cell amplifier 0-5V 0-10V 4-20mA with 4 inputs and 4 outputs
    • Multi-channel load cell amplifier 0-5V 0-10V 4-20mA with 4 inputs and 4 outputs
    • Multi-channel load cell amplifier 0-5V 0-10V 4-20mA with 4 inputs and 4 outputs
    • Multi-channel load cell amplifier 0-5V 0-10V 4-20mA with 4 inputs and 4 outputs
  • Multi-channel load cell amplifier 0-5V 0-10V 4-20mA with 4 inputs and 4 outputs

    Product Details:

    Place of Origin: China
    Brand Name: Forsentek
    Model Number: LC4A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Packaging Details: Shockproof carton
    Delivery Time: 1-7 working days
    Payment Terms: T/T, Western Union, MoneyGram,Paypal
    Supply Ability: 5000pcs/month
    Contact Now
    Detailed Product Description
    Housing: Aluminum Power: 24V DC/12V DC
    Excitation For Load Cell: 5V DC Type: Analog Type

    Multi-channel load cell amplifier 0-5V 0-10V 4-20mA with 4 inputs and 4 outputs

    4-input load cell signal amplifier LC4A can work with all our load cell sensors and torque transducers with mV/V configuration to deliver -5-5V / 0-3.3V / 0-5V / 0-10V / 0-20mA / 4-20mA for further data acquisition. Multi-channel load cell signal conditioner LC4A has 4 inputs and 4 outputs,each channel supports Zero adjustment and Gain adjustment for loadcell calibration.Analog signal amplifier LC4A offers a compact signal processing solution for load measurement applications where multiple load cells are involved.

    4_channel_load_cell_amplifier_0-5V

    Specifications

    Function Turn mV signal into V or mA signal
    Accuracy 0.15%
    Power supply 24V DC or 12V DC
    Output signal -5-5V,-10-10V,0-5V,0-10V,4-20mA,0-20mA
    Excitation for load cell 5V DC
    Applicable sensitivity 0.6mV/V~3mV/V
    Working temperature -10...+60oC
    Material of housing Aluminum
    Ingress protection IP40

    Input end of multi channel load cell amplifier LC4A

    4_channel_load_cell_amplifier_0-10V

    Power with output end of 4-channel load cell conditioner LC4A

    multi_channel_load_cell_amplifier_4-20mA

    Dimensions(in mm)

    load_cell_amplifier_with_4_inputs

    multi_channel_load_cell_amplifier_pdf
