Micro button load cell 5kg 10kg 20kg 50kg compression force load cell

Micro button load cell 5kg 10kg 20kg 50kg compression force load cell

    • Micro button load cell 5kg 10kg 20kg 50kg compression force load cell
    • Micro button load cell 5kg 10kg 20kg 50kg compression force load cell
    • Micro button load cell 5kg 10kg 20kg 50kg compression force load cell
  • Micro button load cell 5kg 10kg 20kg 50kg compression force load cell

    Product Details:

    Place of Origin: China
    Brand Name: Forsentek
    Certification: CE
    Model Number: FC10C

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Packaging Details: Shockproof carton
    Delivery Time: 3-20 working days
    Payment Terms: T/T, Western Union, MoneyGram,Paypal
    Supply Ability: 3335pcs/month
    Contact Now
    Detailed Product Description
    Type: Miniature Compression Load Cell Capacity: 5kg 10kg 20kg 50kg
    Output: Analog Sensor Structure: Button Load Cell
    Application: Compression Force Measurement

    Micro button load cell 5kg 10kg 20kg 50kg compression force load cell

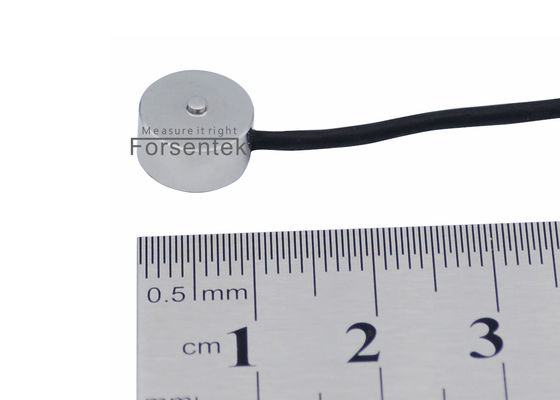

    Subminiature compression force load cell FC10C is made of stainless steel based on metal foil stain gauge technology intended for compression force measurement.Miniature button load cell FC10C offers 5kgf / 10kgf / 20kgf / 50kgf four measuring ranges to choose from.Small size compression load cell FC10C is featured with only 10mm outer diameter and 6mm total height which makes it extremely suitable for force measurement applications with limited mounting space.Typical applications for loadcell FC10C are such as clamping force measurement,force overload protection,load distribution analysis,pressing die force measurement,auto equipment,assembly line and so on.
    miniature_compression_force_load_cell_5kg
    Dimensions(in "mm")
    miniature_compression_force_load_cell_20kg
    Specifications

    Capacity

    5kg / 50N / 11 lb

    10kg / 100N / 22lb

    20kg / 200N / 44 lb

    50kg / 500N / 110 lb

    Rated output 1.0mV/V
    Excitation 3-10V
    Zero balance ±0.05mV/V
    Nonlinearity ±1% R.O.
    Hysteresis ±1% R.O.
    Nonrepeatability ±0.5% R.O.
    Creep(3min) ±0.5% R.O.
    Safe overload 150% F.S.
    Ultimate overload 200% F.S.
    Compensated temperature -10...+40oC
    Operating temperature -20...+60oC
    Temperature shift zero ±0.05% R.O./oC
    Temperature shift span ±0.05% R.O./oC
    Input resistance 900±100 ohms
    Output resistance 900±100 ohms
    Insulation resistance >2000M ohms
    Ingress protection IP65
    Material of element Stainless steel
    Cable Ø2*4000mm 4-core shielded
    Wiring code

    Red--Excitation+ Black--Excitation-

    Green--Signal+ White--Signal-

    Load cell output: = (Power supply * Rated output) * Load / Capacity
    Rated output is normally within 1mV/V~3mV/V.
    Power supply is normally within 3-15V.
    Load / Capacity is within 0-1.
    So the load cell output signal is normally within 0-45mV(-45mV...+45mV for bidirectional load cell).
    Example one: FC10C-5kg with 1.0mV/V sensitivity powered by 10V DC,the output range is 0~10mV.
    Example two: FC10C-10kg with 1.0mV/V sensitivity powered by 3.3V DC,the output range is 0~3.3mV.

    Load cell + Signal amplifier:
    Load cell normally outputs -20mV...+20mV which sometimes cannot be recognized by signal processing units directly,so signal conditioner is introduced to convert mV signal into 0-5V/0-10V/4-20mA for easy signal processing.
    Example: Micro load cell FC10C-10kg working with 0-10V amplifier,the load-output relationship will be 0-10kg load VS 0-10V output,it is linear within the error range.

    Micro button load cell 5kg 10kg 20kg 50kg compression force load cell

    miniature_compression_force_load_cell_10kg

    Click here to download datasheet
