Miniature Tension Compression Load Cell Flange to Flange Press Force Load Cell

Miniature Tension Compression Load Cell Flange to Flange Press Force Load Cell

    • Miniature Tension Compression Load Cell Flange to Flange Press Force Load Cell
    • Miniature Tension Compression Load Cell Flange to Flange Press Force Load Cell
    • Miniature Tension Compression Load Cell Flange to Flange Press Force Load Cell
    • Miniature Tension Compression Load Cell Flange to Flange Press Force Load Cell
    • Miniature Tension Compression Load Cell Flange to Flange Press Force Load Cell
  • Miniature Tension Compression Load Cell Flange to Flange Press Force Load Cell

    Product Details:

    Place of Origin: China
    Brand Name: Forsentek
    Certification: CE
    Model Number: FFG

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Packaging Details: Shockproof carton
    Delivery Time: 3-20 working days
    Payment Terms: T/T, Western Union, MoneyGram,Paypal
    Supply Ability: 4200pcs/month
    Contact Now
    Detailed Product Description
    Type: Miniature Cylinder Load Cell Capacity: 2kg 5kg 10kg 20kg 50kg 100kg 200kg
    Output: Analog Sensor Load Direction: Tension And Compression
    Mounting: Flange-to-Flange

    Miniature Tension Compression Load Cell Flange to Flange Press Force Load Cell

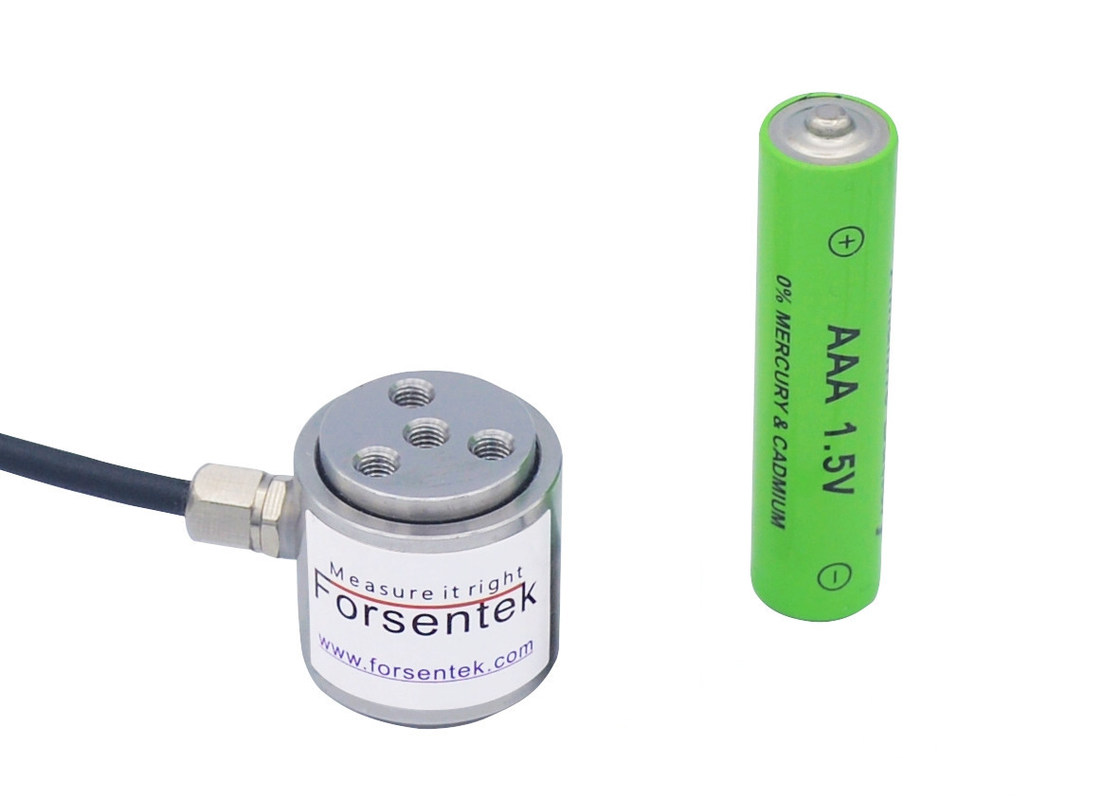

    Miniature Flange Mounted Load Cell FFG is made of stainless steel utilizing strain gauge technology to deliver maximum 0.1% non-linearity of rated output.Miniature force sensor FFG has 20N / 50N / 100N / 200N / 500N / 1000N / 2000N seven rated capacities to choose from,this model is suitable for both tension tension and compression force measurement.Stainless steel construction, flange-to-flange mounting, compact size, bidirectional force measurement, high accuracy, competitive price, flange mounted press force transducer FFG offers a perfect mixture for applications such as wire tension control, force distribution analysis, automated control, assembly force monitoring, spring testing, ultrasonic welding clamp force control, hand press force verification,and so on. In addition to the standard specifications, Forsentek is also willing to provide custom design service as per clients' specific requirements.

    flange_type_load_cellMiniature Tension Compression Load Cell Flange to Flange Press Force Load Cell

    Ordering code Measurement Range Force direction
    FFG-20N 0-20N / 0-2kgf Tension/compression
    FFG-50N 0-50N / 0-5kgf
    FFG-100N 0-100N / 0-10kgf
    FFG-200N 0-200N / 0-20kgf
    FFG-500N 0-500N / 0-50kgf
    FFG-1kN 0-1000N / 0-100kgf
    FFG-2kN 0-2000N / 0-200kgf

    Specifications

    Rated capacity

    20N / 50N / 100N / 200N / 500N / 1kN / 2kN
    2kg / 5kg / 10kg / 20kg / 50kg / 100kg / 200kg
    4.5lb / 10lb / 20lb / 45lb / 110lb / 220lbs / 450lbf

    Rated output 2.0 mV/V Compensated temperature -10...+40oC
    Excitation 3-15V Operating temperature -20...+60oC
    Zero balance ±0.05mV/V Temperature shift zero ±0.02% R.O./oC
    Nonlinearity ±0.1% R.O. Temperature shift span ±0.02% R.O./oC
    Hysteresis ±0.1% R.O. Input resistance 380±30 ohms
    Nonrepeatability ±0.05% R.O. Output resistance 350±5 ohms
    Creep(5min) ±0.05% R.O. Insulation resistance >5000Mohms
    Safe overload 150% F.S. Ingress protection IP62
    Ultimate overload 200% F.S. Material of element Stainless steel
    Cable Ø3*3000mm 4-core shielded cable
    Wiring code

    Red--Power input+

    Black--Power input-

    Green--Signal output+

    White--Signal output-



    Output signal of load cell and amplifier:
    Load cell output: = (Power supply * Rated output) * Load / Capacity
    Rated output of Flanged Force Transducer FFG is normally around 2.0mV/V.
    Power supply of Flange Type Force Sensor FFG is normally within 3-15V.
    Load / Capacity is within 0-1.
    So the output range of Traction/Compression Force Sensor FFG is normally within -30mV…+30mV.
    Example one: Tensile Compressive Force Transducer FFG-50N with 2.0mV/V sensitivity powered by 10V DC,the output range is -20mV...+20mV.
    Example two: Tension And Compression Load Cell FFG-20N with 2.0mV/V rated output powered by 5V DC,the output range is -10mV...+10mV.

    thrust force measurement 200Nthrust force measurement 100N

    The mV/V output from the wheatstone bridge sometimes can hardly be processed directly, a signal conditioner can be used with the load cell to deliver -5~5V, 0-10V or 4-20mA output.
    Example one: Flange Type Tension Compression Sensor FFG-100N working with amplifier FSC(-10-10V)-24V,the Load-Voltage relationship will be 0-100N compression force VS 0-10V output, 0-100N tensile force VS 0-(-10V) output, which is linear regardless of the measurement error, 1V output corresponds to 10N compressive load, (-2V) output corresponds to 20N tension load, and so on.
    Example two: Cylindrical Tension and Compression Load Cell FFG-1kN working with amplifier FSC(4-12-20mA)-24V,the Force-Current relationship will be 0-1kN compression force VS 12-20mA output, 0-1kN tension force VS 12-4mA, which is linear regardless of the measurement error, 12mA output corresponds to “0” load, 12.8mA output corresponds to 100N compressive load, 8mA output corresponds to 500N tensile load, and so on.

    Miniature Tension Compression Load Cell Flange to Flange Press Force Load Cell

    flange_mounted_load_cellThrust Force Measurement 100N

    Click here to download datasheet
