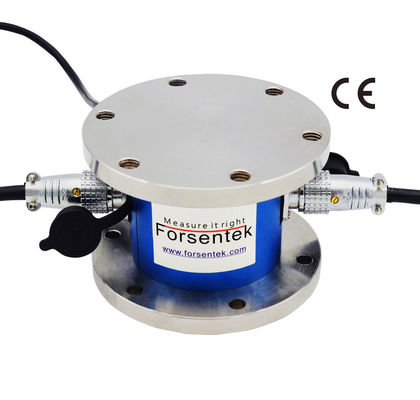

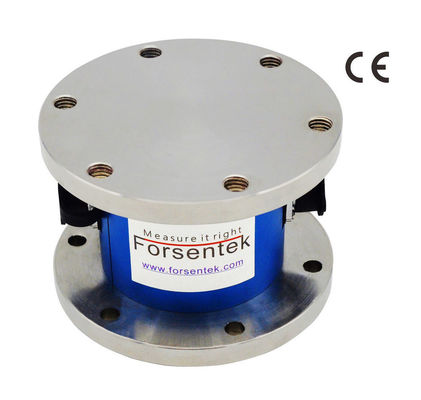

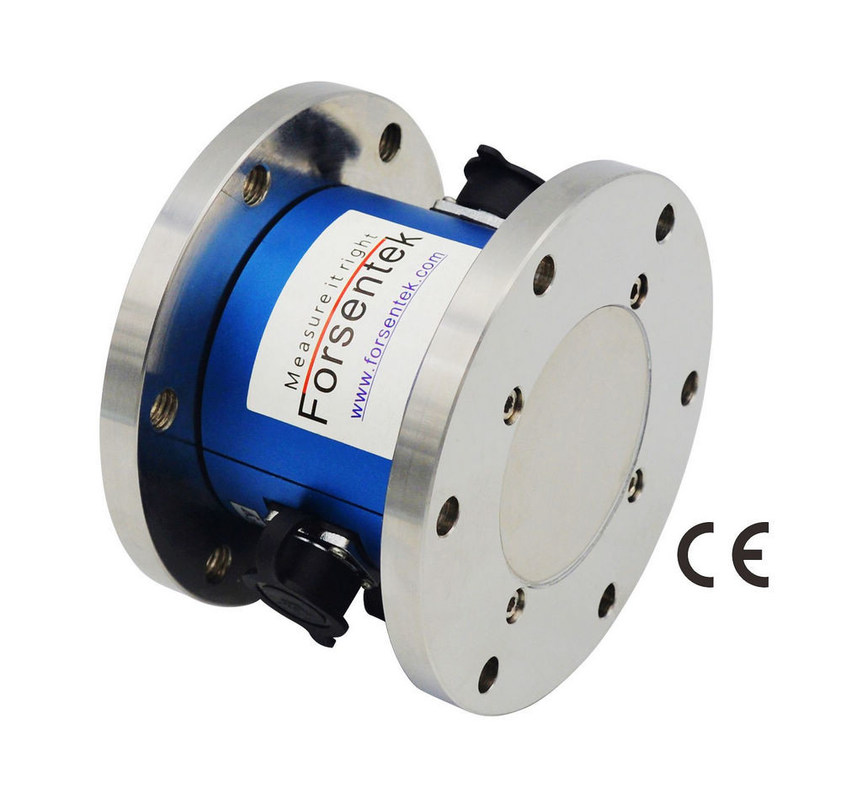

Flange Type 3-Axis Load Sensor 0-1000kg Multi Axis Load Cell With Flange Mounting

Flange Type 3-Axis Load Sensor 0-1000kg Multi Axis Load Cell With Flange Mounting

    • Flange Type 3-Axis Load Sensor 0-1000kg Multi Axis Load Cell With Flange Mounting
    • Flange Type 3-Axis Load Sensor 0-1000kg Multi Axis Load Cell With Flange Mounting
    • Flange Type 3-Axis Load Sensor 0-1000kg Multi Axis Load Cell With Flange Mounting
  • Flange Type 3-Axis Load Sensor 0-1000kg Multi Axis Load Cell With Flange Mounting

    Product Details:

    Place of Origin: China
    Brand Name: Forsentek
    Certification: CE
    Model Number: F3A/F3B

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Packaging Details: Shockproof carton
    Delivery Time: 4-5 weeks
    Payment Terms: T/T, Western Union, MoneyGram,Paypal
    Supply Ability: 1090pcs/month
    Contact Now
    Detailed Product Description
    Material: Stainless Steel Output: Analog Output
    Usage: 3-axis Force Measurement Connection: Flange To Flange

    Flange Type 3-Axis Load Sensor 0-1000kg Multi Axis Load Cell With Flange Mounting

    Flange-to-Flange Multi Axis Load Cell F3A/F3B is made of stainless steel based on strain gauge technology with mV/V output, it is designed to measure force in Fx/Fy/Fz at the same time,each axis is able to measure force in both tension and compression direction. Flanged mounting, easy to install, tri-axial force sensor F3A/F3B offers 500N / 1KN / 2KN / 3KN / 5KN / 10KN for each axis to choose from. Typical applications for this type of transducer are for example force exertion control in robotics, industrial test benches, grinding force control, actuator operating force measurement and so on. 3-Axis Force Load Cell F3A/F3B can be modified or customized as per requirements of our clients.

    flange to flange multi axis load cell

    Specifications

    Rated capacity

    50kg / 500N / 110lb
    100kg / 1kN / 220lbf
    200kg / 2kN / 440lb
    300kg / 3kN / 660lbf
    500kg / 5kN / 1100lbf
    1000kg / 10kN / 2200lb

    Rated output 1.0 mV/V Compensated temperature -10...+40oC
    Excitation 3-15V Operating temperature -20...+60oC
    Zero balance ±0.05mV/V Temperature shift zero ±0.02% R.O./oC
    Nonlinearity ±0.5% R.O. Temperature shift span ±0.02% R.O./oC
    Hysteresis ±0.3% R.O. Input resistance 180±30 ohms
    Nonrepeatability ±0.2% R.O. Output resistance

    Fx/Fy: 385±30 ohms

    Fz: 700±100 ohms

    Creep(5min) ±0.1% R.O. Insulation resistance >2000Mohms
    Safe overload 150% F.S. Ingress protection IP50
    Ultimate overload 200% F.S. Material of element Stainless steel
    Cable Ø6*3000mm 8-core shielded cable with mating connector



    Flange to Flange Multi-Axis Load Cell 50kg 100kg 200kg 500kg 1000kg 3 Axis Force Load Cell

    flange to flange 3-axis load cell

    Click here to download datasheet
