Miniature Compression Force Sensor 5kN 2kN 1kN 500N 200N 100N 50N Button Type Load Cell

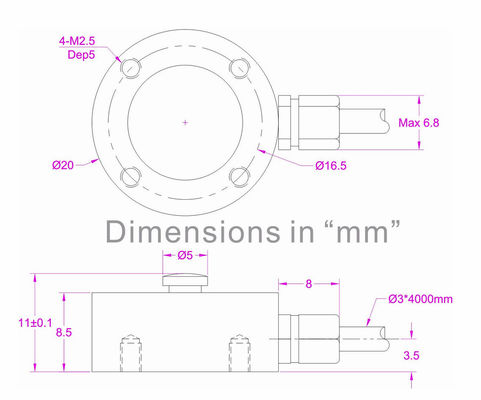

Miniature Button Load Cell FCLB is made of stainless steel based on strain gauge technology which offers 0-50N / 0-100N / 0-200N / 0-500N / 0-1000N / 0-2000N / 0-5000N seven rated measuring ranges to choose from, miniature force sensor FCLB utilizes 1000ohms strain gauges to deliver better stability with lower power consumption compared to commonly used 350ohms gages.Compact design makes button type load cell FCLB suitable for compression force measurement applications with limited mounting space. Each sensor comes with a 4-meter-long shielded cable, 4xM2.5 threaded holes located on the bottom make it easy to mount Micro Load Cell FCLB to a flat platform,you may find Miniature Force Transducer FCLB suitable for applications such as load distribution analysis, mold pressure measurement, force overload protection, clamping force measurement, assembly force monitoring, hydraulics force control and so on.
Specifications
| Rated capacity |
50N / 5kg / 11lb 100N / 10kg / 22lb 200N / 20kg / 45lb 500N / 50kg / 112lb 1kN / 100kg / 224lb 2kN / 200kg / 450lb 5kN / 500kg / 1.12klb |
||
| Rated output | 1.5 mV/V | Compensated temperature | -10...+40oC |
| Excitation | 3-12V | Operating temperature | -20...+60oC |
| Zero balance | ±0.1mV/V | Temperature shift zero | ±0.05% R.O./oC |
| Nonlinearity | ±0.5% R.O. | Temperature shift span | ±0.05% R.O./oC |
| Hysteresis | ±0.5% R.O. | Input resistance | 1000±100 ohms |
| Nonrepeatability | ±0.2% R.O. | Output resistance | 1000±100 ohms |
| Creep(3min) | ±0.2% R.O. | Insulation resistance | >2000Mohms |
| Safe overload | 150% F.S. | Ingress protection | IP65 |
| Ultimate overload | 200% F.S. | Material of element | Stainless steel |
| Cable | Ø3*3000mm 4-core cable | ||
| Wiring code |
Red--Power input+ Black--Power input- Green--Signal output+ White--Signal output- |
||
A load cell (or loadcell) is a transducer which converts force into a measurable electrical output. Although there are many varieties of loadcells, strain gauge load cells are the most commonly used type which is comprised of a solid metal body on which strain gauges have been secured to form a wheatstone bridge which delivers mV/V output.
Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output is normally within 1mV/V~3mV/V.
Power supply is normally within 3-15V.
Load / Capacity is within 0-1.
So the load cell output signal is normally within 0-45mV(-45mV...+45mV for bidirectional load cell).
Example one: Button Load Cell FCLB-500N with 1.5mV/V sensitivity powered by 10V DC,the output range is 0~15mV.
Example two: Miniature Compression Load Cell FCLB-2kN with 1.2mV/V sensitivity powered by 5V DC,the output range is 0~6mV.
Load cell + Signal amplifier:
A signal conditioner can be used to convert mV signal into 0-5V/0-10V/4-20mA for easy signal processing.
Example one: Load Button Load Cell FCLB-1kN working with amplifier FSC(0-10V)-24V,the load-voltage relationship will be 0-1000N load VS 0-10V output.
Example two: Micro Load Cell FCLB-200N working with amplifier FSC(4-20mA)-24V,the load-current relationship will be 0-200N load VS 4-20mA output.
