Thin Button Type Load Cell 100kg 50kg 20kg 10kg 5kg Compression Sensor

Thin Button Type Load Cell 100kg 50kg 20kg 10kg 5kg Compression Sensor

    • Thin Button Type Load Cell 100kg 50kg 20kg 10kg 5kg Compression Sensor
    • Thin Button Type Load Cell 100kg 50kg 20kg 10kg 5kg Compression Sensor
    • Thin Button Type Load Cell 100kg 50kg 20kg 10kg 5kg Compression Sensor
    • Thin Button Type Load Cell 100kg 50kg 20kg 10kg 5kg Compression Sensor
  • Thin Button Type Load Cell 100kg 50kg 20kg 10kg 5kg Compression Sensor

    Product Details:

    Place of Origin: China
    Brand Name: Forsentek
    Certification: CE
    Model Number: FCCK

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Packaging Details: Shockproof carton
    Delivery Time: 3-20 working days
    Payment Terms: T/T, Western Union, MoneyGram,Paypal
    Supply Ability: 2320pcs/month
    Contact Now
    Detailed Product Description
    Type: Subminiature Button Load Cell Capacity: 0-100kg(Selectable)
    Output: Analog Usage: Compression Force Transducer
    Diameter: 12.7mm Height: 4mm

    Thin Button Type Load Cell 100kg 50kg 20kg 10kg 5kg Compression Sensor

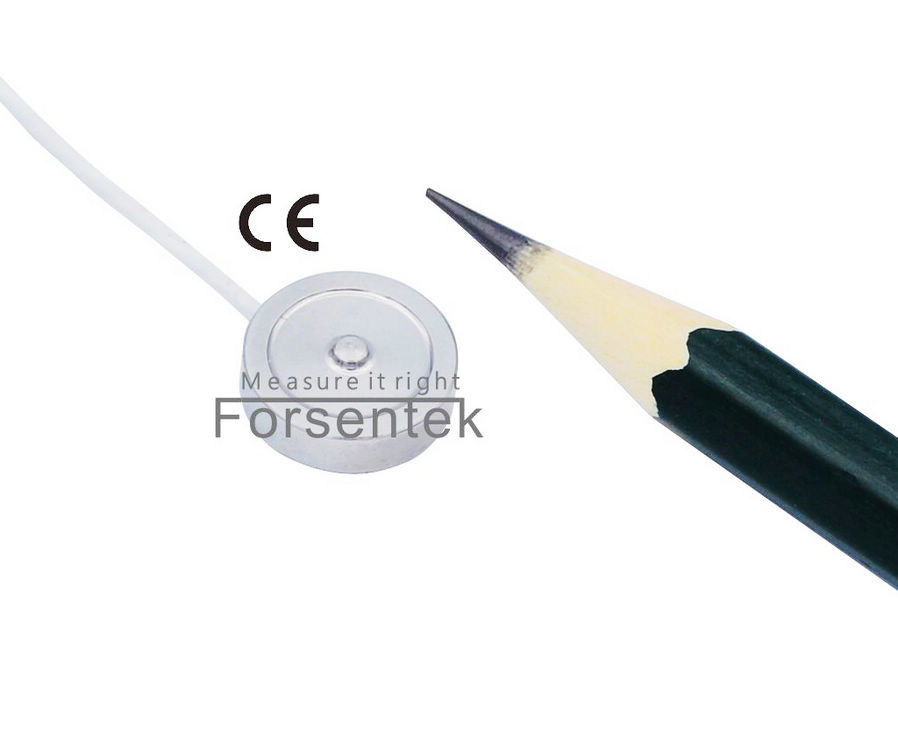

    Miniature Compression Sensor FCCK is made of stainless steel based on strain gauge technology, very compact size with 12.7mm outer diameter and 3.95mm height which makes Thin Loadcell FCCK suitable for compression force measurement applications with limited mounting space. Low Profile Compression Load Cell FCCK offers 0-100kg / 0-50kg / 0-20kg / 0-10kg / 0-5kg five rated measuring ranges to choose from. Micro Load Sensor FCCK utilizes 1000 ohms bridge resistance for lower heat emission and better stability, you may find Subminiature Compression Load Cell FCCK suitable for applications such as clamping force measurement, force overload protection, load distribution measurement, pressing die force measurement, auto equipment, medical divices, assembly line,etc..Custom made service is available for similar structures with different measuring ranges.

    miniature compression sensor 100kg 50kg 20kg 10kg 5kgminiature compression transducer 1kN 500N 200N 100N 50N

    Specifications

    Rated capacity

    50N / 5kg / 11lb
    100N / 10kg / 22lb
    200N / 20kg / 44lb
    500N / 50kg / 110lb
    1000N / 100kg / 220lb

    Rated output 1.5 mV/V Compensated temperature -10...+40oC
    Excitation 3-12V Operating temperature -20...+60oC
    Zero balance ±0.1mV/V Temperature shift zero ±0.05% R.O./oC
    Nonlinearity ±2% R.O. Temperature shift span ±0.05% R.O./oC
    Hysteresis ±2% R.O. Input resistance 1000±100 ohms
    Nonrepeatability ±0.5% R.O. Output resistance 1000±100 ohms
    Creep(3min) ±0.5% R.O. Insulation resistance >2000Mohms
    Safe overload 150% F.S. Ingress protection IP64
    Ultimate overload 200% F.S. Material of element Stainless steel
    Cable Ø1.2*3000mm 4-core cable
    Wiring code

    Red--Power input+    Black--Power input-

    Green--Signal output+    White--Signal output-


    A load cell (or loadcell) is a transducer which converts force into a measurable electrical output. Although there are many varieties of loadcells, strain gauge load cells are the most commonly used type which is comprised of a solid metal body on which strain gauges have been secured to form a wheatstone bridge which delivers mV/V output.

    Load cell output: = (Power supply * Rated output) * Load / Capacity

    Rated output is normally within 1mV/V~3mV/V.
    Power supply is normally within 3-15V.
    Load / Capacity is within 0-1.
    So the load cell output signal is normally within 0-45mV(-45mV...+45mV for bidirectional load cell).
    Example one: Subminiature Compression Sensor FCCK-50N with 1.0mV/V rated output powered by 5V DC,the output range is 0~5mV.
    Example two: Micro Compression Loadcell FCCK-100N with 1.0mV/V rated output powered by 3.3V DC,the output range is 0~3.3mV.

    Load cell + Signal amplifier:
    A signal conditioner can be used to convert mV signal into 0-5V/0-10V/4-20mA for easy signal processing.
    Example one: Button Type Load Cell FCCK-500N working with amplifier FSC(0-5V)-24V, the load-voltage relationship will be 0-500N compression load VS 0-5V output.

    Example two: Miniature Compression Transducer FCCK-200N working with amplifier FSC(4-20mA)-24V, the force-current relationship will be 0-200N compression force VS 4-20mA output.

    Low Profile Compression Sensor 100kg 50kg 20kg 10kg 5kg Button Type Load Cell

    miniature compression sensor 1kN 500N 200N 100N 50N

    Click here to download datasheet
