Precision Single Point Load Cell 5lb 10lb 20lb 30lb 40lb Off Center Weighing Sensor

Precision Single Point Load Cell 5lb 10lb 20lb 30lb 40lb Off Center Weighing Sensor

    • Precision Single Point Load Cell 5lb 10lb 20lb 30lb 40lb Off Center Weighing Sensor
    • Precision Single Point Load Cell 5lb 10lb 20lb 30lb 40lb Off Center Weighing Sensor
    • Precision Single Point Load Cell 5lb 10lb 20lb 30lb 40lb Off Center Weighing Sensor
    • Precision Single Point Load Cell 5lb 10lb 20lb 30lb 40lb Off Center Weighing Sensor
    • Precision Single Point Load Cell 5lb 10lb 20lb 30lb 40lb Off Center Weighing Sensor
  • Precision Single Point Load Cell 5lb 10lb 20lb 30lb 40lb Off Center Weighing Sensor

    Product Details:

    Place of Origin: China
    Brand Name: Forsentek
    Certification: CE
    Model Number: FNK

    Payment & Shipping Terms:

    Minimum Order Quantity: 10pcs
    Packaging Details: Shockproof carton
    Delivery Time: 3-20 working days
    Payment Terms: T/T, Western Union, MoneyGram,Paypal
    Supply Ability: 8660pcs/month
    Contact Now
    Detailed Product Description
    Structure: Single Point Load Cell Output: Analog
    Range: 3/5/10/20kg Usage: Weighing
    Type: Off Center Weighing Sensor

    Precision Single Point Load Cell 5lb 10lb 20lb 30lb 40lb Off Center Weighing Sensor

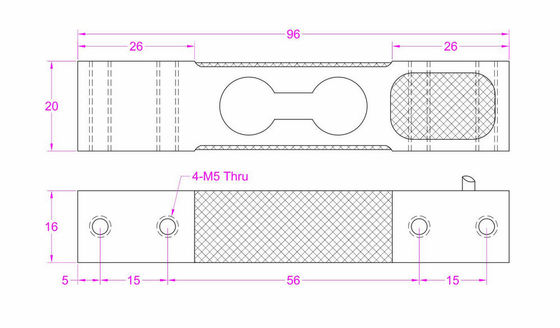

    High Accuracy Single Point Load Cell FNK is a strain gauge based weight transducer which offers 0-6.6lb / 0-11lb / 0-22 lb / 0-33lb / 0-44lb five rated measuring ranges to choose from. High accuracy weighing sensor FNK delivers maximum 0.02% non-linearity of the full capacity. Off center load cell FNK is corner trimmed for platform sizes up to 200x200mm which makes it suitable for off-center load measurement. Weight Transducer FNK delivers stable performance within the declared working temperature range thanks to its temperature compensation process. Load sensor FNK utilizes strain gauges with 1000 ohms resistance to reduce power consumption, it is designed with 2xM5 threaded holes on each end for easy installation. You may find Load Cell Transducer FNK suitable for applications such as packaging machines, counting scales, feeding machines, force simulators, and so on.

    weight sensor 5lb 10 lb 20lb 30 lb 40lb

    weight transducer 5 lb 10lb 20 lb 30lb 40 lb

    Specifications

    Rated capacity

    3kg / 30N / 6.6lb
    5kg / 50N / 11lb
    10kg / 100N / 22lb
    15kg / 150N / 33lb

    20kg / 200N / 44lb

    Sensitivity 2.0 mV/V Compensated temperature -10...+40oC
    Excitation 3-15V Operating temperature -20...+60oC
    Zero balance ±0.1mV/V Temperature shift zero ±0.05% R.O./10oC
    Nonlinearity ±0.02% R.O. Temperature shift span ±0.03% R.O./10oC
    Hysteresis ±0.015% R.O. Input resistance 1130±20 ohms
    Nonrepeatability ±0.015% R.O. Output resistance 1000±10 ohms
    Creep(30min) ±0.03% R.O. Insulation resistance >2000Mohms
    Safe overload 150% F.S. Ingress protection IP65
    Ultimate overload 200% F.S. Material of element Aluminum
    Cable Ø4*400mm 4-core shielded
    Wiring code

    Red--Power input+    Black--Power input-

    Green--Signal output+    White--Signal output-



    A weight sensor is a transducer that converts mechanical load into electrical signal which is proportional to the load being applied.The measured load or force causes deformation of the measuring element(elastic body),the bonded strain gauge deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply, the output signal between Sig+ and Sig- will change proportionally, thus the load/force can be measured by measuring the output signal from the load cell which is normally within 0-30mV for single point weighing load cell FNK. Overloading is the most common cause of loadcell failure, a load sensor is just like a spring in certain aspects, which will be damaged if overstretched or overloaded. A machanical stop(refer to below picture) can be used to protect the sensor from excessive deformation. The deformation gap can be determined by loading the sensor with rated capacity, then adjust the meachnical stop to reach the bottom of the transducer. In most cases, the load cell will be used to measure load at 40-80% of the full capacity, thus the deformation distance can be adjusted using reference load a bit higher than the target load to be measured instead of the rated capacity.

    weight transducer with overload protection

    Precision Off Center Load Cell 5lb 10lb 20lb 30lb 40lb Weight Sensor

    off center load cell 5lb 10 lb 20lb 30lb 40 lb

    Click here to download datasheet
