    Detailed Product Description
    Material: Aluminum Alloy Output: Analog Output
    Principle: Strain Gauge Load Cell

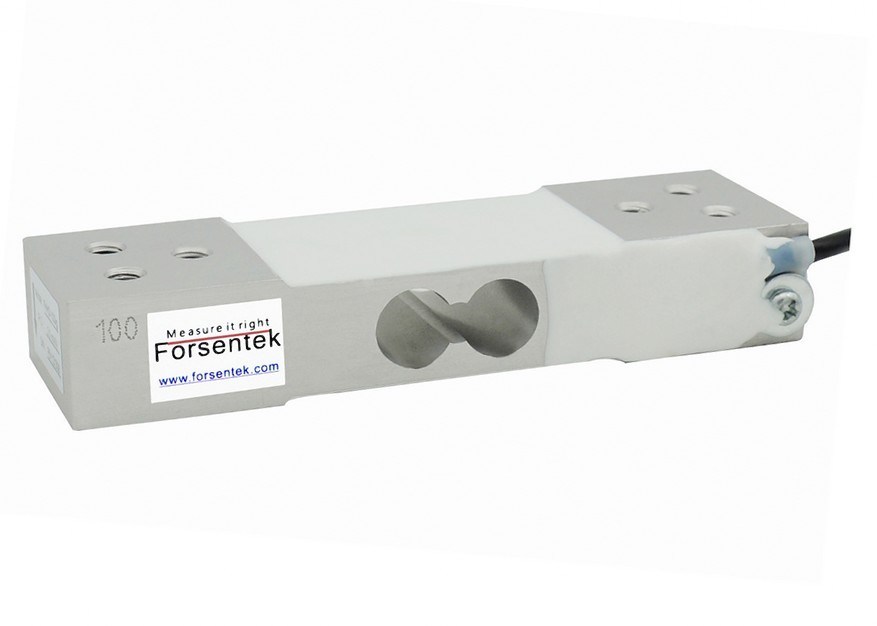

    Weight sensor 20kg 60kg 100kg 150kg 200kg 200kg Off center weighing transducer

    weight sensor

    load cell pdf

    Features

    • Aluminum construction,low profile
    • Parallel beam structure,easy to install
    • Stain gauge load cell,high accuracy
    • Corner compensated for 250*350mm platform,low off-center error
    • Competitive price
    • Widely used for bench scales and industrial weighing applications

    Dimensions

    low profile load cell

    Specifications

    Rated capacity 20kg 60kg 100kg 150kg 200kg 300kg
    Rated output 2.0mV/V
    Excitation 3-15V
    Zero balance ±0.1mV/V
    Nonlinearity ±0.015% of R.O.
    Hysteresis ±0.01% of R.O.
    Nonrepeatability ±0.01% of R.O.
    Creep(30min) ±0.02% of R.O.
    Safe overload 150% of F.S.
    Ultimate overload 200% of F.S.
    Compensated temperature -10...+40oC
    Operating temperature -20...+60oC
    Temperature shift zero ±0.02% of F.S./10oC
    Temperature shift span ±0.02% of F.S./10oC
    Input resistance 405±10 ohms
    Output resistance 350±5 ohms
    Insulation resistance >5000M ohms
    Ingress protection IP65
    Material of element Aluminum alloy
    Cable Ø4*1500mm 4-core shielded
    Wiring code

    Red--EXC+ Black--EXC-

    Green--SIG+ White--SIG-



    Strain gauge load cell weight measurement sensor

    load cell sensor

    A load cell is a transducer that converts mechanical force into electrical signal whose magnitude is proportional to the weight(or force) being applied.The measured load or force causes deformation of the measuring element(elastic body),the bonded strain gauge deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply,the output signal between Sig+ and Sig- will change proportionally,thus the load/force can be measured by measuring the output signal from the load cell.

    strain gauge load cell diagram

    The output range of a standard strain gauge load cell is normally between 0-30mV(-30~30mV for bidirectional sensor),and signal amplification is needed for most applications,a load cell transdmitter can be used to get ±5V,±10V,0-5V,0-10V or 4-20mA signal.

    load cell amplifier

    Digital indicator can be used to display the measured value,load cell display FPT is CE certified with 24 bit high accuracy ADC,sampling speed up to 960Hz,supports RS485 or RS232 communication port,can also output 0-5V,0-10V,0-20mV or 4-20mA amplified signal.

    load cell display
