Rod end load cell force transducer compression force measurement sensor

Rod end load cell force transducer compression force measurement sensor

    • Rod end load cell force transducer compression force measurement sensor
    • Rod end load cell force transducer compression force measurement sensor
    • Rod end load cell force transducer compression force measurement sensor
    • Rod end load cell force transducer compression force measurement sensor
  • Rod end load cell force transducer compression force measurement sensor

    Product Details:

    Place of Origin: China
    Brand Name: Forsentek
    Certification: CE
    Model Number: FL34A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Packaging Details: Shockproof carton
    Delivery Time: 3-20 working days
    Payment Terms: T/T, Western Union, MoneyGram,Paypal
    Supply Ability: 2200pcs/month
    Contact Now
    Detailed Product Description
    Type: Rod End Load Cell Capacity: 50kg 100kg 200kg 300kg 500kg
    Output: Analog Connection: M10 Threaded Rod
    Load Direction: Tension And Compression

    Rod end load cell force transducer compression force measurement

    Rod end load cell

    load cell datasheet
    Features

    • Stainless steel construction
    • Rod end structure,easy to install
    • Strain gauge technology,analog output
    • Compression force measurement for limited space
    • Widely used for force overload protection,pressure distribution measurement,auto equipment,production line,press machine.etc.

    Dimensions(unit in "mm“)

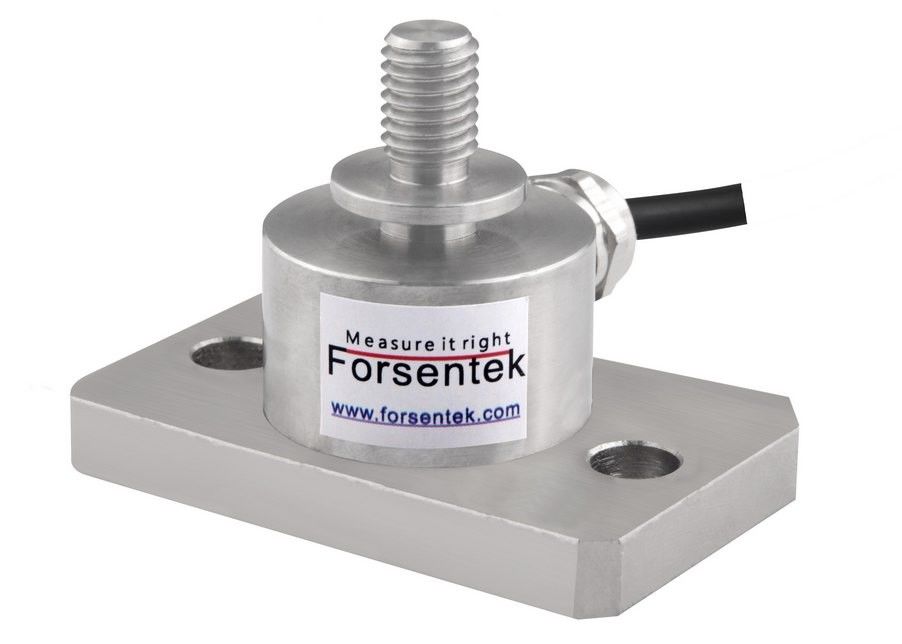

    rod end load cell FL34A

    Specifications

    Rated capacity

    50kg / 500N / 112lb

    100kg / 1kN / 225lb

    200kg / 2kN / 450lb

    300kg / 3kN / 674lb

    500kg / 5kN / 1.12klb

    Rated output 1.5 mV/V Compensated temperature -10...+40oC
    Excitation 3-15V Operating temperature -20...+60oC
    Zero balance ±0.05mV/V Temperature shift zero ±0.02% R.O./oC
    Nonlinearity ±0.5% R.O. Temperature shift span ±0.02% R.O./oC
    Hysteresis ±0.5% R.O. Input resistance 385±30 ohms
    Nonrepeatability ±0.2% R.O. Output resistance 350±5 ohms
    Creep(10min) ±0.1% R.O. Insulation resistance >5000Mohms
    Safe overload 150% F.S. Ingress protection IP66
    Ultimate overload 200% F.S. Material of element Stainless steel
    Cable Ø4*3000mm 4-core shielded cable
    Wiring code

    Red--Powert+ Black--Power-

    Green--Output+ White--Output-



    A rod end load cell is a transducer that converts load or force acting on it into electronic signal which is proportional to the applied force.The acting force causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply,the output signal between Sig+ and Sig- will change proportionally,thus the load/force can be measured by measuring the output signal from the load cell.

    load cell signal conditioner

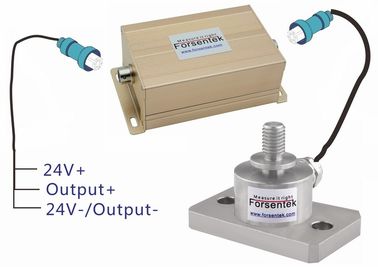

    Rod end load cell FL34A outputs millivolt signal ranging 0-20mV, and signal amplification may be required for most applications, a load cell signal conditioner can be used to get 0-5V, 0-10V or 4-20mA signal which is proportional to applied force.The amplified output is can be easily processed by PLCs and data acquisition software.

    compression force measurement

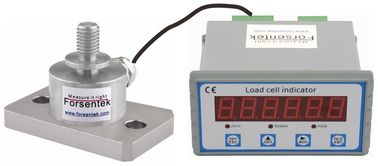

    The applied force can be displayed through a force indicator,force meter FPT is integrated with high accuracy/low noise 24 bit Sigma-Delta ADC,sampling speed up to 960Hz makes it suitable for both static and dynamic measurement,supports RS485 or RS232 communication port,can also output 0-5V,0-10V,0-20mV or 4-20mA amplified signal.
