Micro weight sensor small load cell sensor mini load cell 20N 50N 100N

Micro weight sensor small load cell sensor mini load cell 20N 50N 100N

    • Micro weight sensor small load cell sensor mini load cell 20N 50N 100N
    • Micro weight sensor small load cell sensor mini load cell 20N 50N 100N
    • Micro weight sensor small load cell sensor mini load cell 20N 50N 100N
    • Micro weight sensor small load cell sensor mini load cell 20N 50N 100N
    • Micro weight sensor small load cell sensor mini load cell 20N 50N 100N
  • Micro weight sensor small load cell sensor mini load cell 20N 50N 100N

    Product Details:

    Place of Origin: China
    Brand Name: Forsentek
    Model Number: FMB

    Payment & Shipping Terms:

    Minimum Order Quantity: 50pcs
    Packaging Details: Shockproof carton
    Delivery Time: 3-20 working days
    Payment Terms: T/T, Western Union, MoneyGram,Paypal
    Supply Ability: 50000pcs/month
    Contact Now
    Detailed Product Description
    Material: Aluminum Alloy Capacity: 20N 50N 100N (Customizable)
    Output: Analog Output Principle: Strain Gauge Load Cell

    Micro weight sensor small load cell sensor mini load cell
     micro weight sensor
    Features

    • Aluminum construction,miniature size
    • Strain gauge technology,high accuracy
    • 1000ohms resistance,low heat emission compared to normal 350ohms version
    • Single point load cell,easy to install
    • Competitive price
    • Force control for medical equipments and auto machines

    small weight sensor

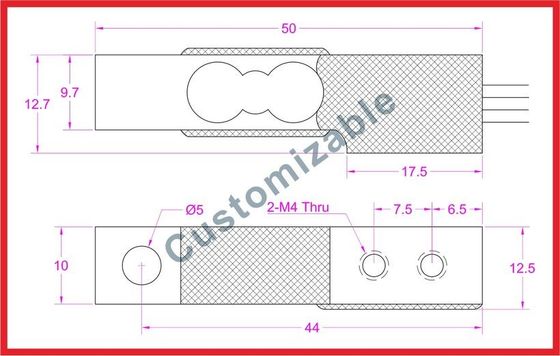

    Dimensions(unit in "mm")
     miniature weight sensor
    mini load cell

    Specifications

    Rated capacity  20N 50N 100N (Customizable)
    Rated output  1.0±20%mV/V
    Excitation  3-6V
    Zero balance  ±0.1mV/V
    Nonlinearity  ±0.05% R.O.
    Hysteresis  ±0.05% R.O.
    Nonrepeatability  ±0.03% R.O.
    Creep(2min)  ±0.05% R.O.
    Safe overload  150% F.S.
    Ultimate overload  200% F.S.
    Compensated temperature  0...+25oC
    Operating temperature  -10...+40oC
    Temperature shift zero  ±0.2% R.O./oC
    Temperature shift span  ±0.05% R.O./10oC
    Input resistance  1130±100 ohms
    Output resistance  1000±100 ohms
    Insulation resistance  >2000M ohms
    Ingress protection  IP62
    Material of element  Aluminum alloy
    Cable  30AWG*180mm(Longer cable available)
    Wiring code

     Red--Exc+ Black--Exc-
     Green--Sig+ White--Sig-


    miniature weight sensor
    Micro load cell sensor is a transducer that converts mechanical force into electrical signal which is proportional to the weight(or force) being applied.The measured load or force causes deformation of the measuring element(elastic body),the bonded strain gauge deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply,the output signal between Sig+ and Sig- will change proportionally,thus the load/force can be measured by measuring the output signal from the load cell.
    micro weight sensor schematic
