    Product Details:

    Place of Origin: China
    Brand Name: Forsentek
    Model Number: FNB

    Payment & Shipping Terms:

    Minimum Order Quantity: 3pcs
    Packaging Details: Shockproof carton
    Delivery Time: 3-20 working days
    Payment Terms: T/T, Western Union, MoneyGram,Paypal
    Supply Ability: 20000pcs/month
    Contact Now
    Detailed Product Description
    Material: Aluminum Alloy Capacity: 0.3kg 0.5kg 1kg 2kg 3kg
    Output: Analog Output Principle: Strain Gauge Load Cell

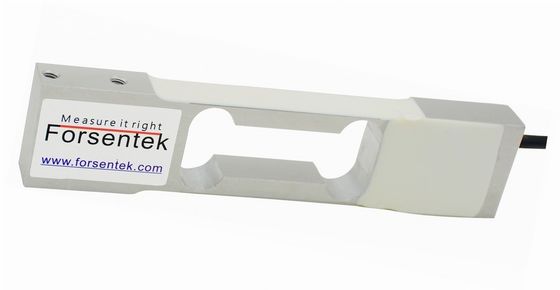

    Load cell sensor weight sensors

    load cell sensor
    Features

    • Aluminum construction
    • Strain gauge technology,high accuracy
    • Temperature compensated
    • Suitable for platform sizes up to 150*150(mm)
    • Competitive price
    • Widely used for weighing balance and high accuracy weighing applications

    Dimensions
    single point load cell
    load sensors
    Specifications

    Capacity 0.3kg 0.5kg 1kg 2kg 3kg
    Rated output 1.3±10%mV/V
    Excitation 3-15V
    Zero balance ±5% R.O.
    Nonlinearity ±0.02% R.O.
    Hysteresis ±0.02% R.O.
    Nonrepeatability ±0.015% R.O.
    Creep(30min) ±0.03% R.O.
    Safe overload 150% F.S.
    Ultimate overload 200% F.S.
    Compensated temperature -10...+40oC
    Operating temperature -20...+60oC
    Temperature shift zero ±0.05% R.O./10oC
    Temperature shift span ±0.03% R.O./10oC
    Input resistance 405±100 ohms
    Output resistance 350±5 ohms
    Insulation resistance >2000M ohms
    Ingress protection IP65
    Material of element Aluminum alloy
    Cable Ø4*250mm(Longer cable available)
    Wiring code

     Red--Exc+ Black--Exc-

     Green--Sig+ White--Sig-


    Load cell sensor weight sensors

    load cells
    A load cell sensor is a transducer that converts mechanical force or weight into electrical signal whose magnitude is proportional to the weight(or force) being applied.The measured load or force causes deformation of the measuring element(elastic body),the bonded strain gauge deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply,the output signal between Sig+ and Sig- will change proportionally,thus the weight/force can be measured by measuring the output signal from the load cell.
    load sensor wiring schematic
