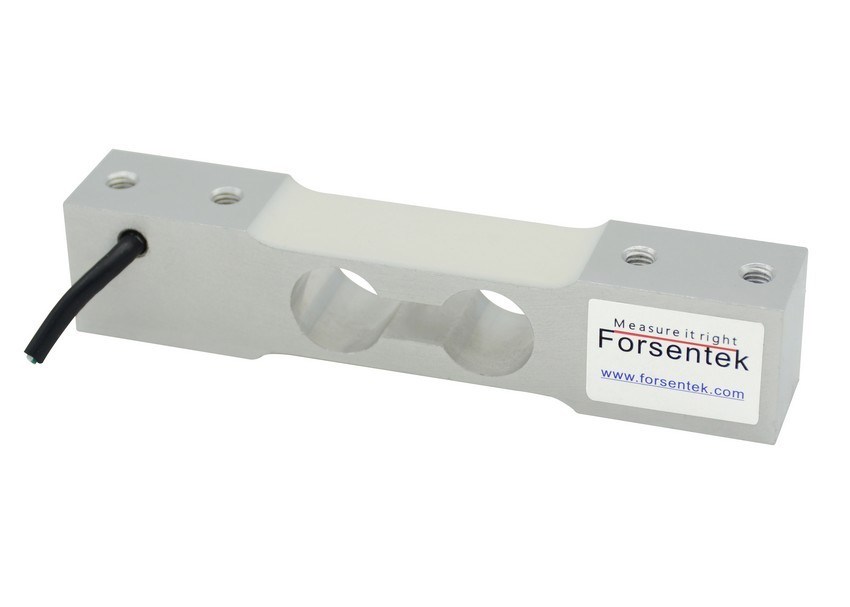

Load transducer|Load transducers|Load measurement transducer

Load transducer|Load transducers|Load measurement transducer

    • Load transducer|Load transducers|Load measurement transducer
    • Load transducer|Load transducers|Load measurement transducer
    • Load transducer|Load transducers|Load measurement transducer
  • Load transducer|Load transducers|Load measurement transducer

    Product Details:

    Place of Origin: China
    Brand Name: Forsentek
    Model Number: FNK

    Payment & Shipping Terms:

    Minimum Order Quantity: 2pcs
    Packaging Details: Shockproof carton
    Delivery Time: 3-20 working days
    Payment Terms: T/T, Western Union, MoneyGram,Paypal
    Supply Ability: 10000pcs/month
    Contact Now
    Detailed Product Description
    Material: Aluminum Alloy Capacity: 3kg 5kg 10kg 15kg 20kg
    Output: Analog Output Principle: Strain Gauge Load Cell
    Usage: Load Measurement Transducer

    Load transducer|Load transducers|Load measurement transducer

    Features

    • Aluminum construction,4-wire connection
    • Strain gauge technology,high accuracy
    • 1000ohms resistance,low heat emmission compared to normal 350ohms version
    • Single point load cell,easy to install
    • Corner trimmed for platform sizes up to 200*200(mm)
    • Competitive price
    • Widely used for price computing scales,counting scales,bench scales.etc.

    load transducer
    Dimensions(Unit in "mm")
    load sensors FNK

    Specifications

    Rated capacity3kg 5kg 10kg 15kg 20kg
    Rated output2.0±10%mV/V
    Excitation3-15V
    Zero balance±5% R.O.
    Nonlinearity±0.02% R.O.
    Hysteresis±0.02% R.O.
    Nonrepeatability±0.015% R.O.
    Creep(30min)±0.03% R.O.
    Safe overload150% F.S.
    Ultimate overload200% F.S.
    Compensated temperature-10...+40oC
    Operating temperature-20...+60oC
    Temperature shift on zero±0.05% R.O./10oC
    Temperature shift on span±0.03% R.O./10oC
    Input resistance1130±20 ohms
    Output resistance1000±10 ohms
    Insulation resistance>2000M ohms
    Ingress protectionIP65
    Material of elementAluminum alloy
    CableØ4*400mm(Longer cable available)
    Wiring code

    Red--Exc+ Black--Exc-
    Green--Sig+ White--Sig-


    Load transducer load measurement sensor
    load transducers


    A load transducer can convert mechanical force into electrical signal which is proportional to the weight(or force) being applied.The measured load or force causes deformation of the measuring element(elastic body),the bonded strain gauge deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply,the output signal between Sig+ and Sig- will change proportionally,thus the load/force can be measured by measuring the output signal from the load cell.
