| Place of Origin: | China |
| Brand Name: | Forsentek |
| Model Number: | FNI |
| Minimum Order Quantity: | 2pcs |
|---|---|
| Packaging Details: | Shockproof carton |
| Delivery Time: | 3-20 working days |
| Payment Terms: | T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 10000pcs/month |
| Material: | Aluminum Alloy | Capacity: | 20kg 30kg 40kg 50kg 60kg 100kg |
|---|---|---|---|
| Output: | Analog Output | Principle: | Strain Gauge Load Cell |
Features
Dimensions(unit in "mm")
Specifications
| Rated capacity | 20kg 30kg 40kg 50kg 60kg 100kg |
| Rated output | 2.0mV/V |
| Excitation | 5-15V |
| Zero balance | ±5% of R.O. |
| Nonlinearity | ±0.015% of R.O. |
| Hysteresis | ±0.01% of R.O. |
| Nonrepeatability | ±0.01% of R.O. |
| Creep(30min) | ±0.02% of R.O. |
| Safe overload | 150% of F.S. |
| Ultimate overload | 200% of F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.02% of F.S./10oC |
| Temperature shift span | ±0.02% of F.S./10oC |
| Input resistance | 405±10 ohms |
| Output resistance | 350±5 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP65 |
| Material of element | Aluminum alloy |
| Cable | Ø4*400mm(Longer cable available) |
| Wiring code |
Red--EXC+ Black--EXC- Green--SIG+ White--SIG- |

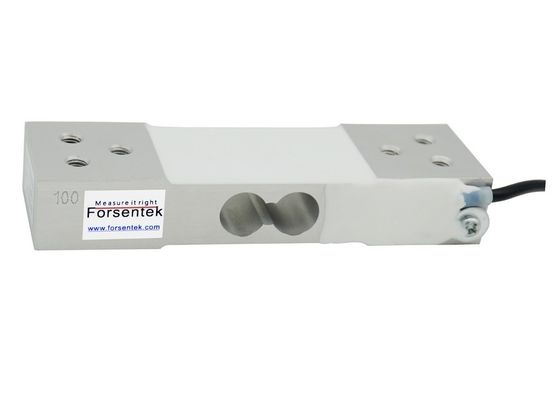

Weight measurement sensor weight measurement transducer
A weight measurement sensor is a transducer that converts mechanical force into electrical signal whose magnitude is proportional to the weight(or force) being applied.The measured load or force causes deformation of the measuring element(elastic body),the bonded strain gauge deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply,the output signal between Sig+ and Sig- will change proportionally,thus the load/force can be measured by measuring the output signal from the load cell.
