    Detailed Product Description
    Material: Aluminum Alloy Capacity: 15kg 20kg 30kg 50kg 100kg 200kg
    Output: Analog Output Principle: Strain Gauge Load Cell

    Weight measuring sensor|Weight measurement transducer

    weight measurement

    Features

    • Aluminum construction,steel cover plate protect the strain gauge area
    • Strain gauge technology,6-wire connection,
    • Temperature compensated,high accuracy
    • Single point load cell,easy to install
    • Suitable for platform sizes up to 400*400(mm)
    • Widely used for bench scales and high accuracy industrial weighing applications

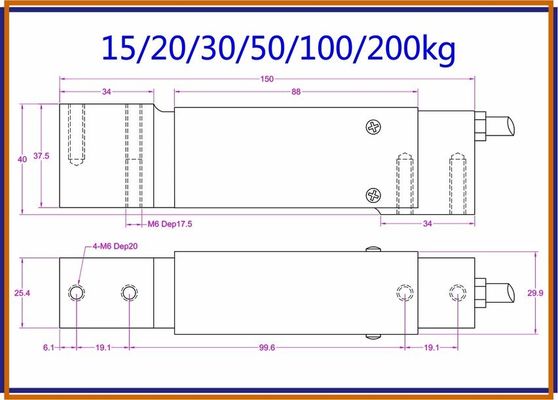

    Dimensions
    weight measuring
     weight measurements
    Specifications

    Rated capacity 15kg 20kg 30kg 50kg 100kg 200kg
    Rated output 2.0±5%mV/V
    Excitation 5-15V
    Zero balance ±5% R.O.
    Non-linearity ±0.015% R.O.
    Hysteresis ±0.01% R.O.
    Non-repeatability ±0.01% R.O.
    Creep(30min) ±0.02% R.O.
    Safe overload 150% F.S.
    Ultimate overload 200% F.S.
    Compensated temperature -10...+40oC
    Operating temperature -20...+60oC
    Temperature shift zero ±0.02% R.O./10oC
    Temperature shift span ±0.02% R.O./10oC
    Input resistance 405±10 ohms
    Output resistance 350±3 ohms
    Insulation resistance >2000M ohms
    Ingress protection IP65
    Material of element Aluminum alloy
    Cable Ø6*1500mm(Longer cable available)
    Wiring code

    Red--Exc+ Black--Exc-
    Blue--Sen+  Yellow--Sen-
    Green--Sig+ White--Sig-


    Weight measuring sensor for weight measurement

    measure weight
    Weight measuring sensor FNM is a strain gauge based load cell which converts weight into electrical signal whose magnitude is proportional to the weight being applied.The added weight causes deformation of the measuring element(elastic body),the bonded strain gauge deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply,the output signal between Sig+ and Sig- will change proportionally,thus the weight can be measured by measuring the output signal from the load cell.
