    Product Details:

    Place of Origin: China
    Brand Name: Forsentek
    Model Number: FNI

    Payment & Shipping Terms:

    Minimum Order Quantity: 2pcs
    Packaging Details: Shockproof carton
    Delivery Time: 3-20 working days
    Payment Terms: T/T, Western Union, MoneyGram,Paypal
    Supply Ability: 10000pcs/month
    Contact Now
    Detailed Product Description
    Material: Aluminum Alloy Capacity: 20kg 30kg 40kg 50kg 60kg 100kg
    Output: Analog Output Principle: Strain Gauge Load Cell

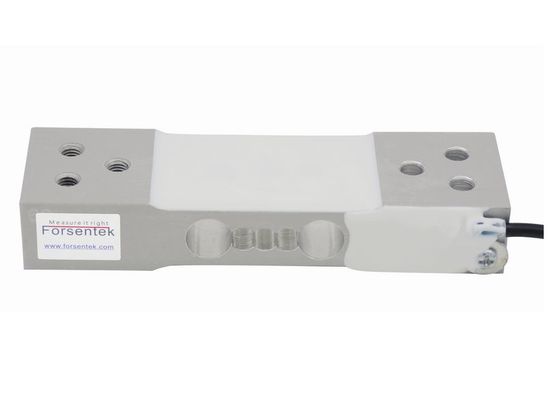

    Load sensors|Load cell sensor|Load measurement

    load sensor
     Features

    • Aluminum construction,low profile
    • Parallel beam structure,easy to install
    • Stain gauge load cell,temperature compensated,high accuracy
    • Suitable for platform sizes up to 250*350mm
    • Competitive price
    • Widely used for bench scales and industrial weighing applications

    Dimensions(unit in "mm")
    load measurement
    load cell sensor
    Specifications

    Rated capacity20kg 30kg 40kg 50kg 60kg 100kg
    Rated output2.0mV/V
    Excitation5-15V
    Zero balance±5% of R.O.
    Nonlinearity±0.015% of R.O.
    Hysteresis±0.01% of R.O.
    Nonrepeatability±0.01% of R.O.
    Creep(30min)±0.02% of R.O.
    Safe overload150% of F.S.
    Ultimate overload200% of F.S.
    Compensated temperature-10...+40oC
    Operating temperature-20...+60oC
    Temperature shift zero±0.02% of F.S./10oC
    Temperature shift span±0.02% of F.S./10oC
    Input resistance405±10 ohms
    Output resistance350±5 ohms
    Insulation resistance>5000M ohms
    Ingress protectionIP65
    Material of elementAluminum alloy
    CableØ4*400mm(Longer cable available)
    Wiring code

    Red--EXC+ Black--EXC-

    Green--SIG+ White--SIG-


    Load cell sensor load measurement sensor
    load sensor

    A load sensor is a transducer that converts mechanical force into electrical signal whose magnitude is proportional to the weight(or force) being applied.The measured load or force causes deformation of the measuring element(elastic body),the bonded strain gauge deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply,the output signal between Sig+ and Sig- will change proportionally,thus the load/force can be measured by measuring the output signal from the load cell.
    load measurement
