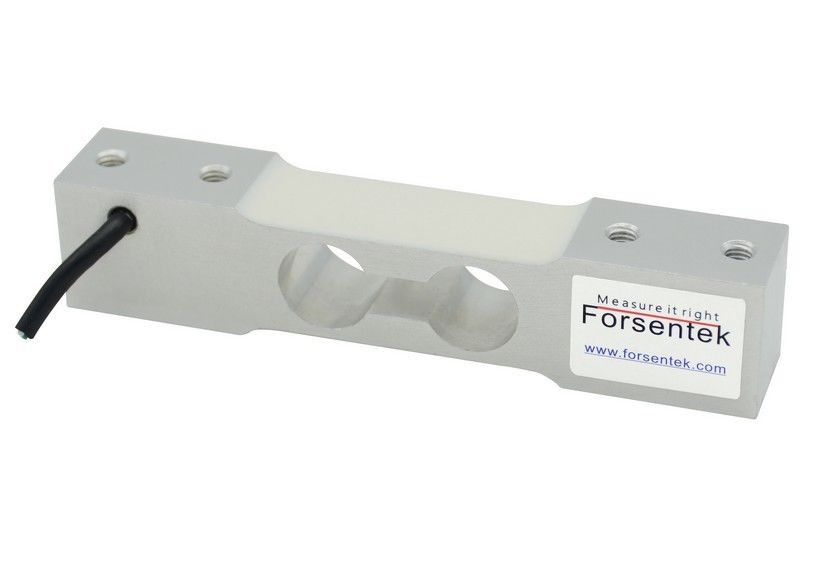

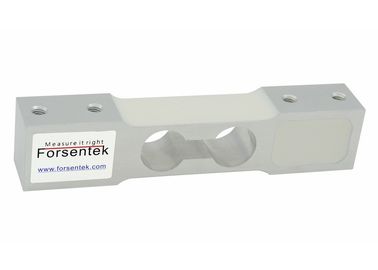

Weighing load cell 15kg load cell 20kg

Weighing load cell 15kg load cell 20kg

    • Weighing load cell 15kg load cell 20kg
    • Weighing load cell 15kg load cell 20kg
    • Weighing load cell 15kg load cell 20kg
  • Weighing load cell 15kg load cell 20kg

    Product Details:

    Place of Origin: China
    Brand Name: Forsentek
    Model Number: FNK

    Payment & Shipping Terms:

    Minimum Order Quantity: 3pcs
    Packaging Details: Shockproof carton
    Delivery Time: 3-20 working days
    Payment Terms: T/T, Western Union, MoneyGram,Paypal
    Supply Ability: 10000pcs/month
    Contact Now
    Detailed Product Description
    Material: Aluminum Alloy Capacity: 3kg 5kg 10kg 15kg 20kg
    Output: Analog Output Principle: Strain Gauge Load Cell
    Usage: Weight Measurement,weighing

    Weighing load cell 15kg load cell 20kg


    weight sensor pdf

    Features

    • Aluminum construction,4-wire connection
    • Strain gauge technology,temperature compensated,high accuracy
    • 1000ohms resistance,low heat emmission compared to normal 350ohms version
    • Single point load cell,easy to install
    • Corner trimmed for platform sizes up to 200*200(mm)
    • Competitive price
    • Widely used for price computing scales,counting scales,bench scales.etc.

    load cell 15kg

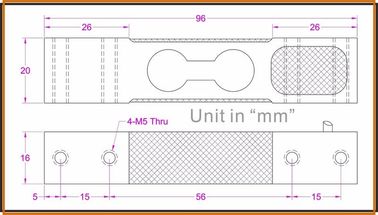

    Dimensions
    load cell 20kg

    Specifications

    Rated capacity 3kg 5kg 10kg 15kg 20kg
    Rated output 2.0±10%mV/V
    Excitation 3-15V
    Zero balance ±5% R.O.
    Nonlinearity ±0.02% R.O.
    Hysteresis ±0.02% R.O.
    Nonrepeatability ±0.015% R.O.
    Creep(30min) ±0.03% R.O.
    Safe overload 150% F.S.
    Ultimate overload 200% F.S.
    Compensated temperature -10...+40oC
    Operating temperature -20...+60oC
    Temperature shift zero ±0.05% R.O./10oC
    Temperature shift span ±0.03% R.O./10oC
    Input resistance 1130±20 ohms
    Output resistance 1000±10 ohms
    Insulation resistance >2000M ohms
    Ingress protection IP65
    Material of element Aluminum alloy
    Cable Ø4*400mm(Longer cable available)
    Wiring code

    Red--Exc+ Black--Exc-
    Green--Sig+ White--Sig-


    Load cell 20kg 15kg 10kg 5kg 3kg
    load cell 20kg


    A load sensor is a transducer that converts mechanical force into electrical signal which is proportional to the weight being applied.The measured load or force causes deformation of the elastic body,the bonded strain gauge deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply,the output signal between Sig+ and Sig- will change proportionally,thus the load can be measured by measuring the output signal from the load cell.
    load cell wiring
