Drehmomentsensor 0-100kNM statisch Drehmomentsensoren mit Flanschanschluss

Drehmomentsensor 0-100kNM statisch Drehmomentsensoren mit Flanschanschluss

    • Drehmomentsensor 0-100kNM statisch Drehmomentsensoren mit Flanschanschluss
    • Drehmomentsensor 0-100kNM statisch Drehmomentsensoren mit Flanschanschluss
    • Drehmomentsensor 0-100kNM statisch Drehmomentsensoren mit Flanschanschluss
    • Drehmomentsensor 0-100kNM statisch Drehmomentsensoren mit Flanschanschluss
    • Drehmomentsensor 0-100kNM statisch Drehmomentsensoren mit Flanschanschluss
  • Drehmomentsensor 0-100kNM statisch Drehmomentsensoren mit Flanschanschluss

    Product Details:

    Place of Origin: China
    Brand Name: Forsentek
    Model Number: FT03

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Packaging Details: Shockproof carton
    Delivery Time: 3-20 working days
    Payment Terms: Western Union, MoneyGram, T/T,Paypal
    Supply Ability: 2000pcs/month
    Contact Now
    Detailed Product Description
    Material: Alloy Steel Capacity: 0-100000Nm
    Type: Reaction Type Torque Sensor Principle: Strain Gauge Torque Sensor

    Drehmomentsensor statisch Drehmomentsensoren mit Flanschanschluss

    Drehmomentsensoren mit Flanschanschluss
    Features

    • Alloy steel construction
    • Strain gauge technology,analog output
    • Flange to flange mounting
    • Reaction torque measurement,non-rotating torque measurement

    Drehmomentsensor mit Flansch

    Specifications

    Rated capacity

     200NM 300NM 500NM 1000NM 2000NM 3000NM 5000NM 10000NM 20000NM 30000NM 40000NM 50000NM 60000NM 100000NM

    Rated output  1.5mV/V
    Excitation  3-15V
    Zero balance  ±2% R.O.
    Non-linearity

    200NM~10kNM: ±0.25% R.O.

    20k~10kNM: ±0.5% R.O.

    Hysteresis

    200NM~10kNM: ±0.25% R.O.

    20k~10kNM: ±0.5% R.O.

    Non-repeatability

    200NM~10kNM: ±0.1% R.O.

    20k~10kNM: ±0.2% R.O.

    Creep(30min)  ±0.1% R.O.
    Safe overload  150% F.S.
    Ultimate overload  200% F.S.
    Compensated temp.  -10...+40oC
    Operating temp.  -20...+60oC
    Temp. shift zero  ±0.02% R.O./oC
    Temp. shift span  ±0.02% R.O./oC
    Input resistance  700±100 ohms
    Output resistance  700±10 ohms
    Insulation resistance  >5000M ohms
    Ingress protection  IP62
    Material of element  Alloy steel
    Cable  Ø5.5*3000mm
    Wiring code

    Clockwise@

    Red--Exc+ Black--Exc-

    Green--Sig+ White--Sig-


    Statischer Drehmomentsensor mit Flanschanschluss

    Drehmomentsensor statisch

    A torque sensor is a transducer that converts a torsional mechanial input into an electrical output signal. Torque transducer can be devided into two types:rotary torque sensor and reaction torque sensor depending on the torque it's going to measure.Rotary torque sensors are able to measure both rotating torque and non-rotating torque while reaction torque transducers can only measure non-rotating torque or torque with small rotating angle.

    Drehmoment messen

    Flange type reaction torque sensor FT03 is designed to measure static torque which is also known as reaction torque.The output range of FT03 is normally between -20~20mV which is proportional to applied torque, signal conditioner can be used to get ±5V,±10V,0-5V,0-10V or 4-20mA output for easy data acquisition.

    Statischer Drehmomentsensor

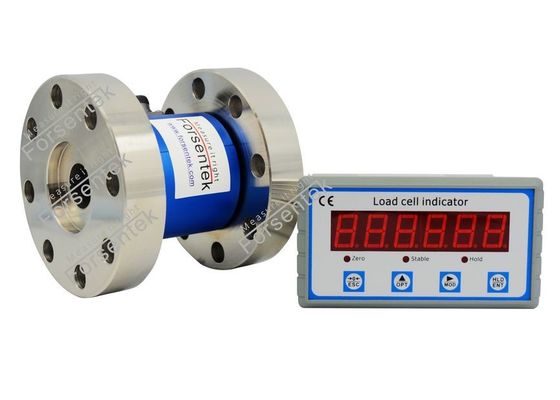

    Torque meter can be used to display the torque value.Digital display FPT is integrated with high accuracy 24-bit ADC,up to 960Hz sampling speed make it suitable for both static measurement and dynamic measurement.FPT also supports RS485/RS232 communication interface and amplified signal output 0-10V/0-5V/4-20mA proportional to the measured value.

    Statische Drehmomentsensoren

    Drehmomentsensoren

    Dimensions(Unit in "mm")

    drehmoment sensor

    Drehmomentsensor 0-100kNM statisch Drehmomentsensoren mit Flanschanschluss
