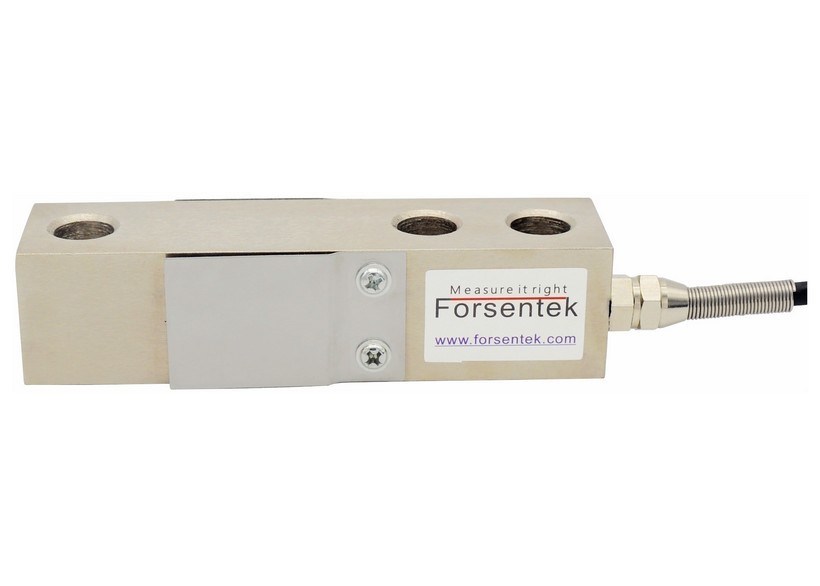

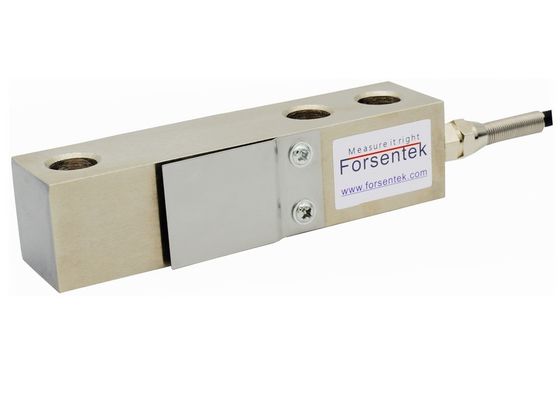

0-10V 4-20mA Load cell with built in amplifier

0-10V 4-20mA Load cell with built in amplifier

    • 0-10V 4-20mA Load cell with built in amplifier
    • 0-10V 4-20mA Load cell with built in amplifier
    • 0-10V 4-20mA Load cell with built in amplifier
    • 0-10V 4-20mA Load cell with built in amplifier

    Product Details:

    Place of Origin: China
    Brand Name: Forsentek
    Model Number: FHAS/FHSS

    Payment & Shipping Terms:

    Minimum Order Quantity: 5pcs
    Packaging Details: Shockproof carton
    Delivery Time: 3-25 working days
    Payment Terms: T/T, Western Union, MoneyGram,Paypal
    Supply Ability: 5000pcs/month
    Contact Now
    Detailed Product Description
    Material: Alloy Steel/Stainless Steel Capacity: 50kg 100kg 200kg 300kg
    Output: 2.0mV/V,0-5V,0-10V,4-20mA Principle: Strain Gauge Load Cell

    0-10V 4-20mA Load cell with built in amplifier

    load cell with built in amplifier

    Features

    • Stainless steel or alloy steel construction
    • 0-5V 0-10V 4-20mA Load cell with built-in amplifier
    • Strain gauge technology,high accuracy
    • Widely used for force measurement in industrial applications

    load cell 4-20mA output

    Specifications

    Rated capacity 50kg 100kg 200kg 300kg
    Rated output 2.0mV/V(0-5V,0-10V,4-20mA)
    Excitation 5-15V(12V DC,24V DC)
    Zero balance ±3% R.O.
    Non-linearity ±0.02% R.O.(±0.15% R.O.)
    Hysteresis ±0.02% R.O.(±0.15% R.O.)
    Non-repeatability ±0.02% R.O.(±0.1% R.O.)
    Creep(30min) ±0.02% R.O.(±0.1% R.O.)
    Safe overload 150% F.S.
    Ultimate overload 200% F.S.
    Compensated temperature -10...+40oC
    Operating temperature -20...+60oC
    Temperature shift zero ±0.02% R.O./10oC(±0.1% R.O./10oC)
    Temperature shift span ±0.02% R.O./10oC(±0.1% R.O./10oC)
    Input resistance 385±30 ohms
    Output resistance 385±30 ohms
    Insulation resistance >2000M ohms
    Ingress protection IP66
    Material of element Alloy steel/Stainless steel
    Cable Ø6*2800mm
    Wiring code Red--E+ Black--E- Green--S+ White--S-



    Dimensions(Unit in "mm")

    load cell 0-10V
