| Place of Origin: | China |
| Brand Name: | Forsentek |
| Model Number: | LPG |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | Shockproof carton |
| Delivery Time: | 3-20 working days |
| Payment Terms: | Western Union, MoneyGram, T/T,Paypal |
| Supply Ability: | 2000pcs/month |
| Material: | Stainless Steel | Capacity: | 4t 10t 20t 30t(Customizable) |
|---|---|---|---|
| Principle: | Strain Gauge Torque Sensor | Application: | Force Overload Protection |

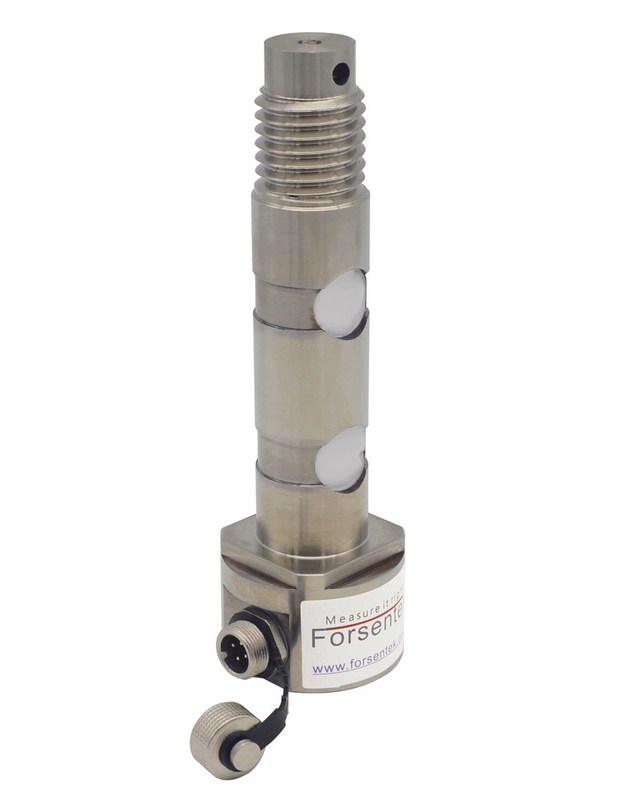

Pin load cell 30 tons 20tons 10 ton Pin force sensor
Pin force sensors are widely used for overload protection in hoisting equipment,mooring devices, winches, coupling devices, construction machinery and so on.Load pins can replace the shaft pins in exsiting system without changing the current structure thanks to its fully customized dimensions.Bonded wheatstone full bridge delivers unamplified mV/V signal output,built-in amplifier for 0-5V/0-10V/4-20mA output is also avaialble depending on the dimensions of the pin load cells.Forsentek is capable of customizing load pins ranging up to 50 tons upon client's specific requirements.
Specifications
| Rated capacity | 4t 10t 20t 30t (Customizable) |
| Rated output | 1.5 mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.05mV/V |
| Non-linearity | ±0.5% F.S. |
| Hysteresis | ±0.5% F.S. |
| Non-repeatability | ±0.2% F.S. |
| Creep(5min) | ±0.1% F.S. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temp. | -10...+40oC |
| Operating temp. | -20...+60oC |
| Temp. shift zero | ±0.03% F.S./oC |
| Temp. shift span | ±0.03% F.S./oC |
| Input resistance | 790±100 ohms |
| Output resistance | 705±10 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP64 |
| Material of element | Stainless steel |
| Cable | Ø5*3000mm 4-core shielded cable |
| Wiring code |
Red--Exc+ Black--Exc- Green--Sig+ White--Sig- |
