Micro Load Cell 10lb 20lb 50lb 100lb Compression Force Measurement Transducer

Micro Load Cell 10lb 20lb 50lb 100lb Compression Force Measurement Transducer

    • Micro Load Cell 10lb 20lb 50lb 100lb Compression Force Measurement Transducer
    • Micro Load Cell 10lb 20lb 50lb 100lb Compression Force Measurement Transducer
    • Micro Load Cell 10lb 20lb 50lb 100lb Compression Force Measurement Transducer
    • Micro Load Cell 10lb 20lb 50lb 100lb Compression Force Measurement Transducer
    • Micro Load Cell 10lb 20lb 50lb 100lb Compression Force Measurement Transducer
  • Micro Load Cell 10lb 20lb 50lb 100lb Compression Force Measurement Transducer

    Product Details:

    Place of Origin: China
    Brand Name: Forsentek
    Certification: CE
    Model Number: FC10C

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Packaging Details: Shockproof carton
    Delivery Time: 3-20 working days
    Payment Terms: T/T, Western Union, MoneyGram,Paypal
    Supply Ability: 2520pcs/month
    Contact Now
    Detailed Product Description
    Material: Stainless Steel Capacity: 50N 100N 200N 500N
    Output: Analog Output Principle: Strain Gauge Load Cell
    Usage: Compression Force Measurement Diameter: 10mm
    Height: 6mm

    Micro Load Cell 10lb 20lb 50lb 100lb Compression Force Measurement Transducer

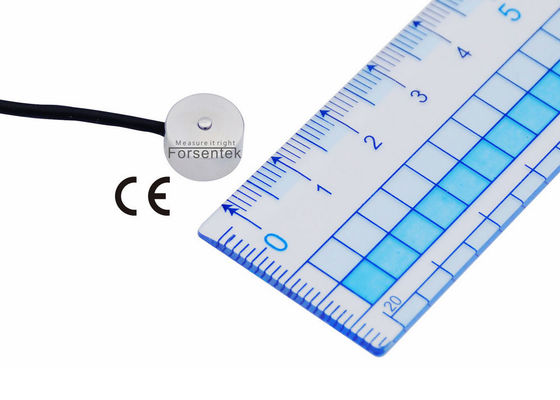

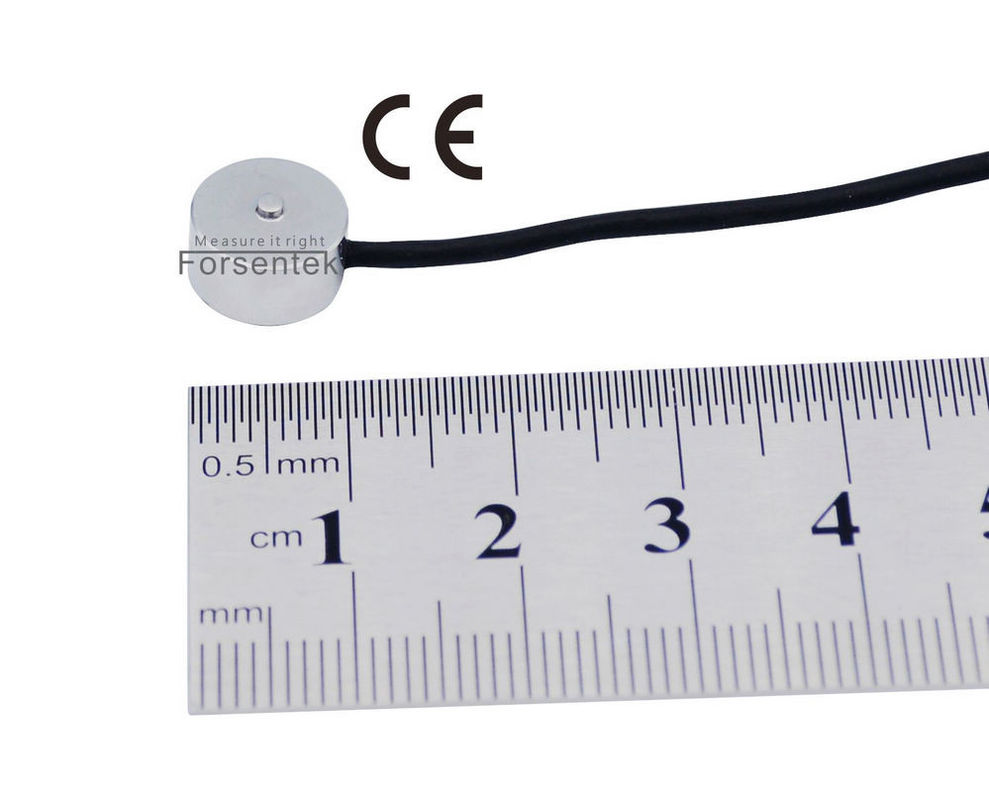

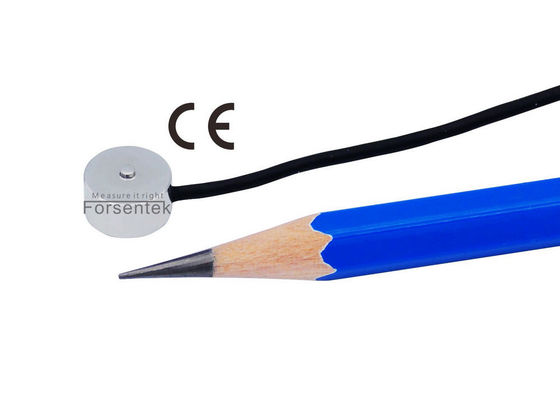

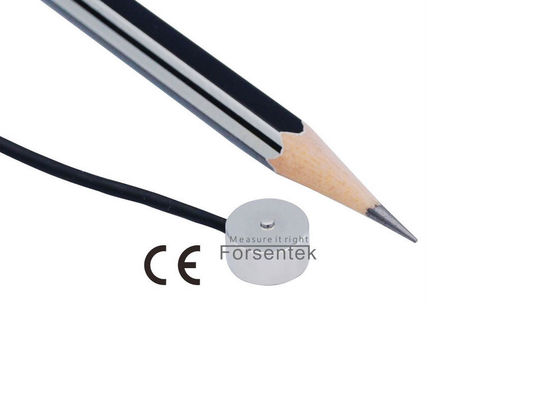

    Miniature Compression Load Cell Force Sensor FC10C is made of stainless steel based on metal foil strain gauge technology intended for compression force measurement. Subminiature button load cell FC10C offers 0-11lbf / 0-22lbf / 0-44lbf / 0-110lbf four measuring ranges to choose from. Micro Button Load Cell FC10C is featured with only 10mm outer diameter and 6mm total height which makes it extremely suitable for force measurement applications where mounting space is limited. Typical applications for smallest compression load cell FC10C are such as clamping force measurement, force overload protection, load distribution analysis, pressing die force measurement, auto equipment, assembly line and so on. Custom made service is available at Forsentek if our clients want to make modifications based on the standard specifications.

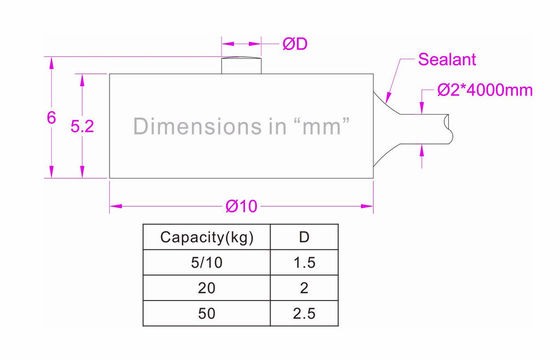

    miniature button load cell 10lb 20 lb 50lbf 100lbminiature compression force sensor 10 lb 20lb 50 lb 100lb

    Specifications

    Rated capacity

    5kg / 50N / 11 lb

    10kg / 100N / 22 lb

    20kg / 200N / 44 lb

    50kg / 500N / 110 lb

    Rated output 1.0 mV/V Compensated temperature -10...+40oC
    Excitation 3-10V Operating temperature -20...+60oC
    Zero balance ±0.1mV/V Temperature shift zero ±0.05% R.O./oC
    Nonlinearity ±1% R.O. Temperature shift span ±0.05% R.O./oC
    Hysteresis ±1% R.O. Input resistance 900±100 ohms
    Nonrepeatability ±0.5% R.O. Output resistance 900±100 ohms
    Creep(5min) ±0.5% R.O. Insulation resistance >2000Mohms
    Safe overload 150% F.S. Ingress protection IP65
    Ultimate overload 200% F.S. Material of element Stainless steel
    Cable Ø2*4000mm 4-core shielded cable
    Wiring code

    Red--Power input+    Black--Power input-

    Green--Signal output+    White--Signal output-


    A load cell (or loadcell) is a transducer which converts force into a measurable electrical output. Although there are many varieties of loadcells, strain gauge load cells are the most commonly used type which is comprised of a solid metal body on which strain gauges have been secured to form a wheatstone bridge which delivers mV/V output.

    Load cell output: = (Power supply * Rated output) * Load / Capacity

    Rated output of micro force sensor FC10C is around  1.0mV/V.
    Power supply is normally within 3-10V.
    Load / Capacity is within 0-1.
    So the output signal of button loadcell FC10C is normally within 0-10mV.
    Example one: Miniature Compresssion Sensor FC10C-5kg with 1.0mV/V rated output powered by 5V DC,the output range is 0~5mV.
    Example two: Micro Button Load Cell FC10C-10kg with 1.0mV/V sensitivity powered by 3.3V DC,the output range is 0~3.3mV.

    Load cell + Signal amplifier: A signal conditioner can be used to convert mV signal into 0-5V/0-10V/4-20mA for easy signal processing.
    Example one: Micro load cell FC10C-10kg working with amplifier FSC(0-10V)-24V,the load-voltage relationship will be 0-10kg compressive load VS 0-10V output.

    Example two: Miniature Load Cell FC10C-5kg working with amplifier FSC(4-20mA)-24V,the load-current relationship will be 0-5kg compression force VS 4-20mA output.

    Miniature Force Transducer 10lb 20lb 50lb 100lb Compression Force Measurement Sensor

    miniature compression load cell 10 lbf 20 lbf 50 lb 100 lb

    Click here to download datasheet
