| Place of Origin: | China |
| Brand Name: | Forsentek |
| Certification: | CE |
| Model Number: | FFA |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | Shockproof carton |
| Delivery Time: | 3-20 working days |
| Payment Terms: | T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 1970pcs/month |
| Material: | Stainless | Capacity: | 0-4.5klb(Selectable) |
|---|---|---|---|
| Output: | Analog | Mounting: | Flange-to-Flange |
| Type: | Tension/Compression |

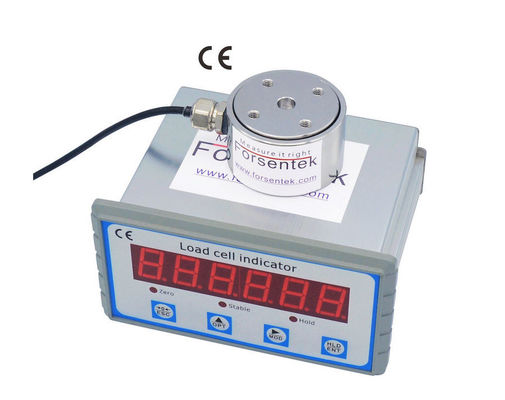

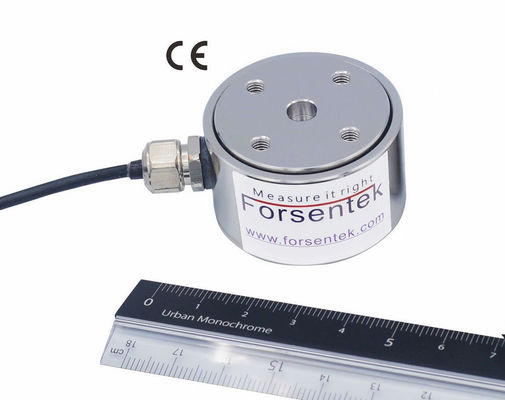

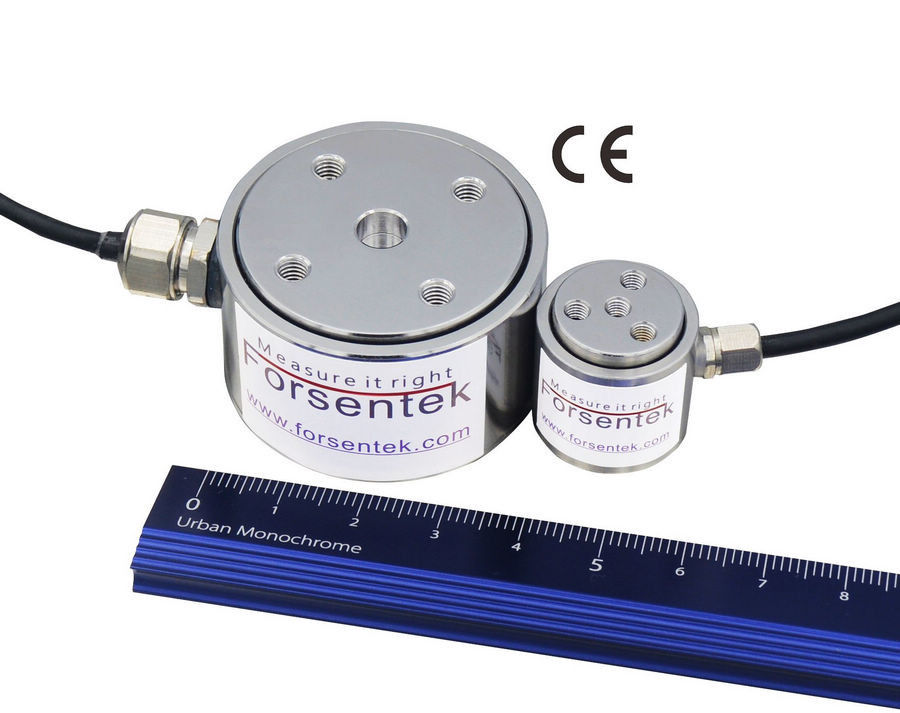

Flange Type Compression Load Cell 50 lb 100lb 200 lbf 400lb 1klb 2klb 4.5klb Force Sensor
Flange-to-Flange Tension And Compression Load Cell Force Sensor FFA is made of stainless steel utilizing strain gauge technology to deliver maximum 0.1% non-linearity of full scale.Tension Compression Force Sensor FFA offers 0-45lb / 0-112 lb / 0-225lb / 0-450 lb / 0-1.12klb / 0-2.25klb / 0-4.5klb seven rated measuring ranges to choose from,Pull Push Load Cell FFA can be used for both tension and compression force measurement. Stainless steel construction, flange design, compact size, bidirectional force measurement, high accuracy, Flange Type Press Load Cell FFA offers a perfect force measuring solution for applications such as wire tension control, force distribution analysis, automated control, cylinder thrust measurement, assembly force monitoring, spring testing, ultrasonic welding clamp force control, hand press force verification,and so on. In addition to the standard specifications, Forsentek is also capable of and willing to provide custom design service to meet requirements of different applications.

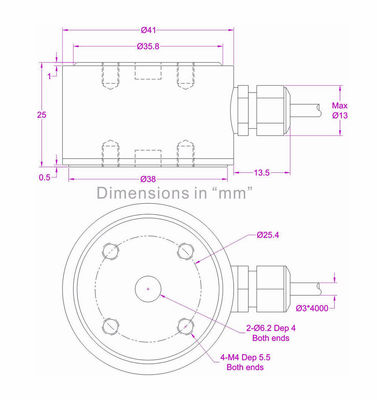

Specifications
| Rated capacity |
200N / 20kg / 45lbf 2000N / 200kg / 450lbf 20kN / 2000kg / 4.5klbf |
||
| Rated output | 2.0 mV/V | Compensated temperature | -10...+40oC |
| Excitation | 3-15V | Operating temperature | -20...+60oC |
| Zero balance | ±0.05mV/V | Temperature shift zero | ±0.02% R.O./oC |
| Nonlinearity | ±0.1% R.O. | Temperature shift span | ±0.02% R.O./oC |
| Hysteresis | ±0.1% R.O. | Input resistance | 400±50 ohms |
| Nonrepeatability | ±0.05% R.O. | Output resistance | 400±10 ohms |
| Creep(5min) | ±0.05% R.O. | Insulation resistance | >5000Mohms |
| Safe overload | 150% F.S. | Ingress protection | IP62 |
| Ultimate overload | 200% F.S. | Material of element | Stainless steel |
| Cable | Ø3*4000mm 4-core shielded cable | ||
| Wiring code |
Compression@ Red--Power input+ Black--Power input- Green--Signal output+ White--Signal output- |
||
A load cell (or loadcell) is a transducer which converts force into a measurable electrical output. Although there are many varieties of loadcells, strain gauge load cells are the most commonly used type which is comprised of a solid metal body on which strain gauges have been secured to form a wheatstone bridge which delivers mV/V output.
Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of Flange Load Cell FFA is around 2mV/V.
Power supply is normally within 3-15V.
Load / Capacity is within 0-1.
So the output signal of Flange Type Force Transducer FFA is normally within -30mV...+30mV for tension/compression measurement.
Example one: Flange Type Compression Load Cell FFA-500N with 2.0mV/V rated output powered by 3.3V DC,the output range is -6.6mV...+6.6mV.
Example two: Flange-to-Flange Tension/Compression Force Sensor FFA-1kN with 2.0mV/V rated output powered by 5V DC, the output range is -10mV...+10mV.
A load cell signal conditioner can be used to convert mV signal into 0-5V/0-10V/4-20mA for easy signal processing.
Example one: Tension Compression Force Sensor FFA-10kN working with amplifier FSC(-10-10V)-24V, the force-voltage relationship will be 0-10kN compression force VS 0-10V output, 0-10kN tension force VS 0-(-10V) output.
Example two: Pull And Push Load Cell FFA-5kN working with amplifier FSC(4-12-20mA)-24V,the force-current relationship will be 0-5000N compression force VS 12-20mA output, 0-5kN tension force VS 12-4mA output.
