| Place of Origin: | China |
| Brand Name: | Forsentek |
| Certification: | CE |
| Model Number: | FSSM |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | Shockproof carton |
| Delivery Time: | 3-20 working days |
| Payment Terms: | T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 3925pcs/month |
| Material: | Stainless | Capacity: | 0-220lb(Selectable) |
|---|---|---|---|
| Output: | Analog | Type: | Compression/Tension |
| Female Thread: | M3/M4 |

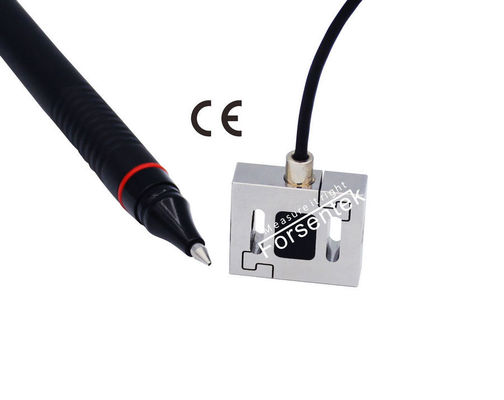

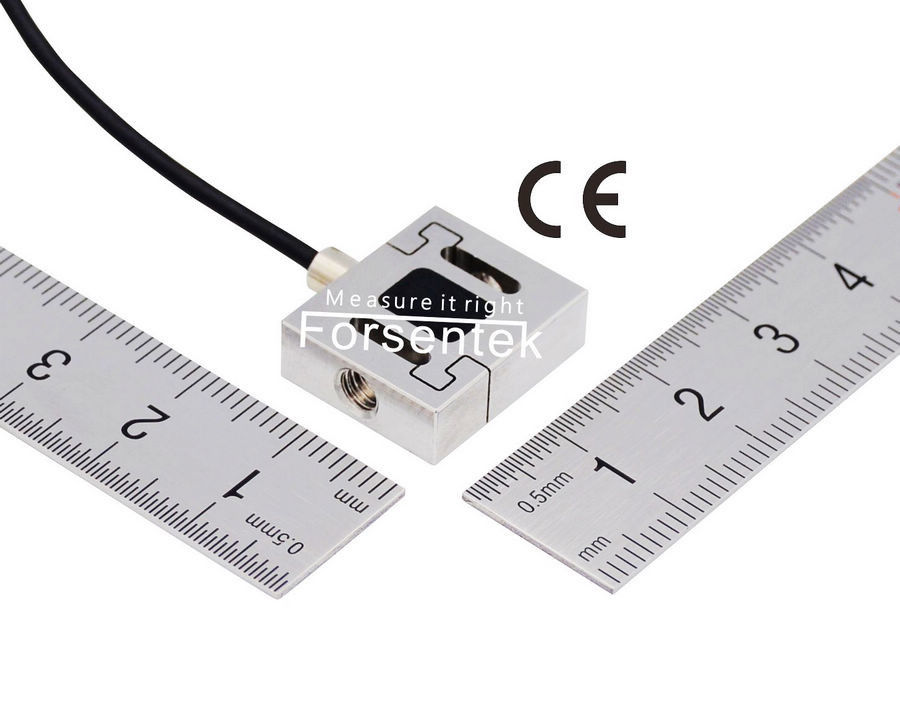

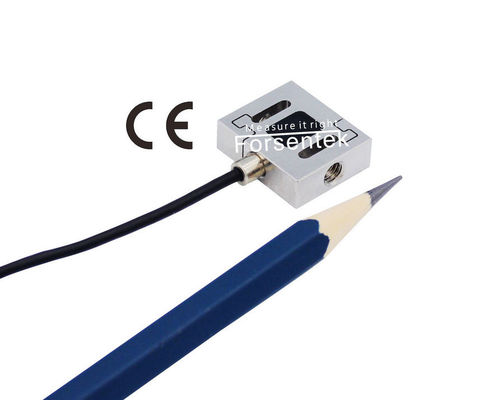

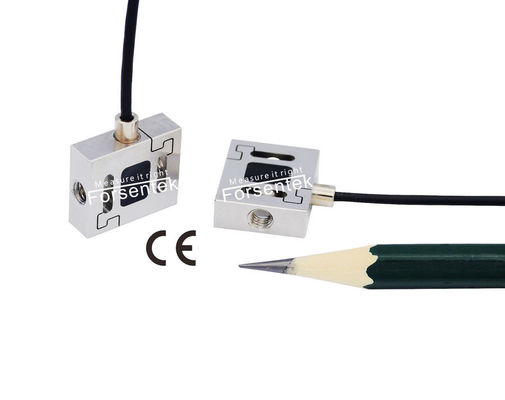

Micro Tension Load Cell 2lb 5lb 10lb 20 lb 50lbf 100 lb 200lb Miniature Pull Force Sensor
Miniature Tension Force Sensor FSSM offers a compact design for a variety of applications. the S Beam Tension Compression Load Cell series provide 0-2.2lbf / 0-4.4lbf / 0-11lbf / 0-22lbf / 0-45lbf / 0-67lbf / 0-112lbf / 0-224lbf eight rated measuring ranges with high accuracy and compact design features.The Micro Push Pull Load Cell FSSM utilizes metal foil strain gauge technology to deliver 2.0mV/V output with maximum 0.1% non-linearity of the capacity,the compact design enables the FSSM to be easily embedded into machinery or test equipment – ideal for packaging machinery, assembly machinery or end-of-line test equipment.Micro Pull Force Sensor FSSM features threaded holes on two sides for the mounting of attachments or implements,this micro force sensor can be used for both tension and compression force measurement in applications with limited space.You may find junior S beam load cell FSSM interchangeable with FUTEK load cell LSB200,Mark Miniature Force Sensors Series R04,flintec s-beam force sensor ISA,flintec load cell ISB,etc..In addition to the standard specifications,model FSSM can also be modified or customized to better fit clients' applications.

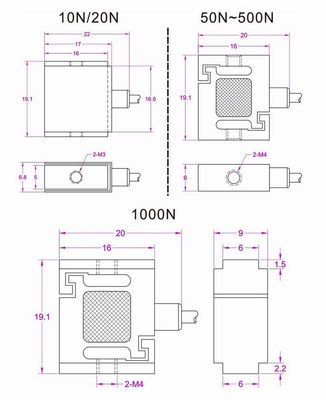

Specifications
| Rated capacity |
10N / 1kg / 2.2lb |
||
| Rated output | 2.0 mV/V | Compensated temperature | -10...+40oC |
| Excitation | 3-12V | Operating temperature | -20...+60oC |
| Zero balance | ±0.1mV/V | Temperature shift zero | ±0.03% R.O./oC |
| Nonlinearity | ±0.1% R.O. | Temperature shift span | ±0.02% R.O./oC |
| Hysteresis | ±0.1% R.O. | Input resistance | 380±30 ohms |
| Nonrepeatability | ±0.05% R.O. | Output resistance | 352±5 ohms |
| Creep(5min) | ±0.1% R.O. | Insulation resistance | >2000Mohms |
| Safe overload | 150% F.S. | Ingress protection | ≤20N IP50 ≥50N IP62 |
| Ultimate overload | 200% F.S. | Material of element | Stainless steel |
| Cable | Ø2*4000mm 4-core shielded | ||
| Wiring code |
Compression@ |
||
The output range of push and pull force transducer FSSM is normally within -25mV...+25mV,
Example one: Miniature Compression Tension Load Cell FSSM-10N with 1.9mV/V rated output powered by 10V DC,the output range is -19mV...+19mV.
Example two: Micro Push and Pull Force Sensor FSSM-20N with 2.1mV/V sensitivity powered by 5V DC,the output range is -10.5mV...+10.5mV.
A signal conditioner can be used to convert mV signal into 0-5V/0-10V/4-20mA for easy signal processing.
Example one: Miniature Compression Tension Sensor FSSM-100N working with amplifier FSC(-5-5V)-24V,the force-voltage relationship will be 0-100N compression force VS 0-5V output, 0-100N tension force VS 0-(-5V) output.
Example two: Micro Push Pull Load Cell FSSM-200N working with amplifier FSC(4-12-20mA)-24V,the force-current relationship will be 0-200N compression force VS 12-20mA output, 0-200N tension force VS 12-4mA output.
