| Place of Origin: | China |
| Brand Name: | Forsentek |
| Certification: | CE |
| Model Number: | FSKE |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | Quote by email |
| Packaging Details: | Shockproof carton |
| Delivery Time: | 3-20 working days |
| Payment Terms: | T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 3125pcs/month |
| Material: | Stainless | Capacity: | 0-445lbf(Selectable) |
|---|---|---|---|
| Output: | Analog | Type: | Compression/Tension |
| Connection: | M8-to-M8 |

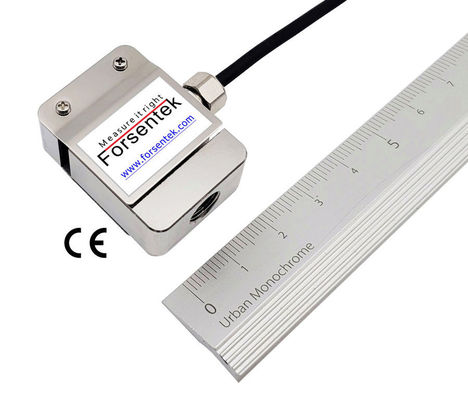

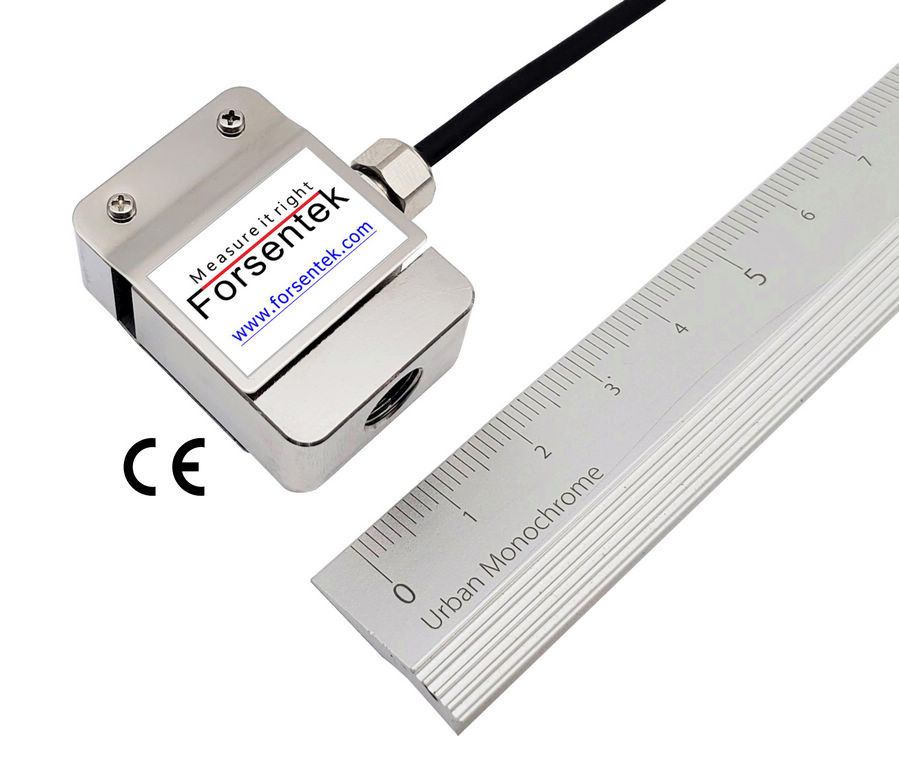

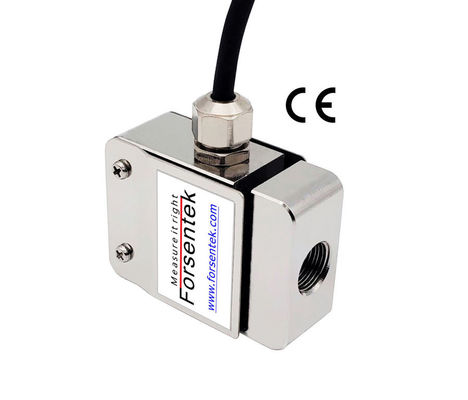

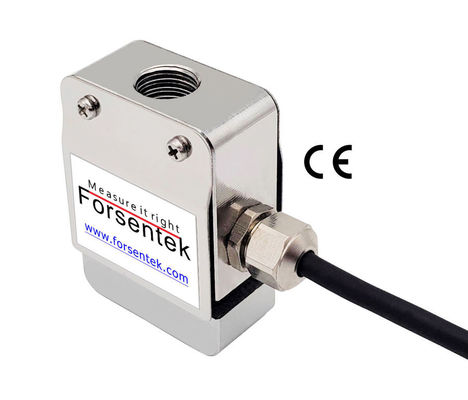

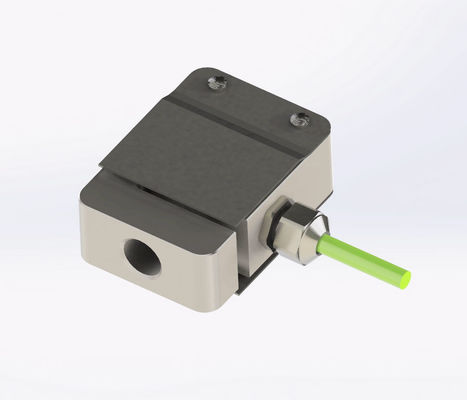

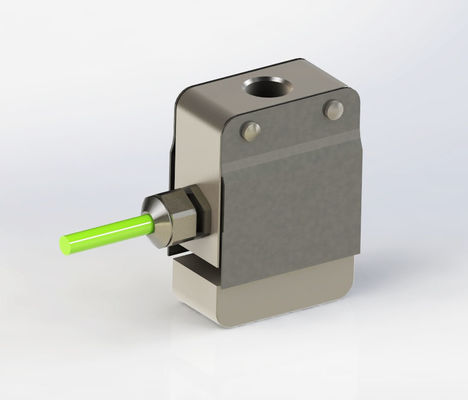

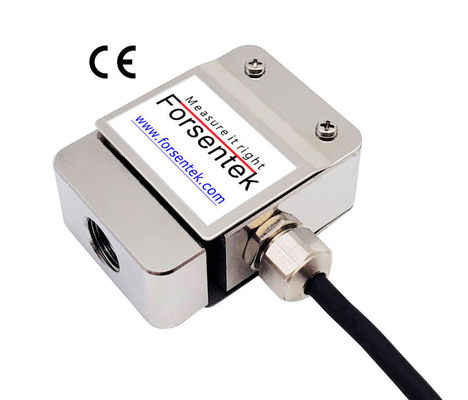

M8 Threaded Tension Force Transducer 445lb 225 lb 112lb 45lb 20 lb 10lb Pull Load Cell

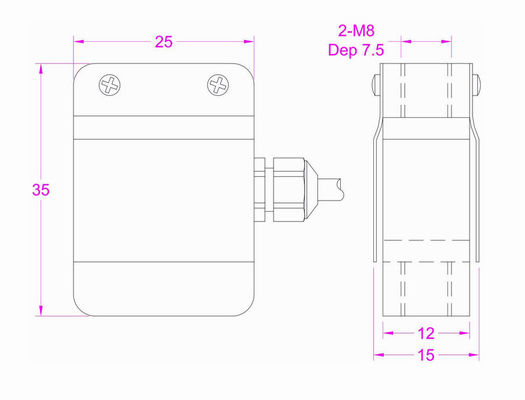

Miniature Compression And Tension Load Cell FSKE is made of stainless steel based on metal foil strain gauge technology. Small size compression and tension load cell FSKE offers 0-11 lbf / 0-22 lbf / 0-45 lbf / 0-110 lbf / 0-220 lbf / 0-445 lbf six rated measuring ranges to choose from,high accuracy with maximum 0.1% nonlinearity of the full capacity. M8 threaded holes located on both ends can be used to mount attachments like load buttons, eye bolts, hooks to fit different applications. Compact design makes Push Pull Force Transducer FSKE a perfect option for tension compression force measurement applications with limited space.Typical applications for Push Pull Load Cell FSKE are such as auto process control, connctor insertion/extraction force measurement, material testing machines, tension meters, hand press force measurement, assembly line,etc..Push Pull Loadcell FSKE can also be modified or customized as per request of our clients.
Specifications
| Rated capacity |
50N / 5kg / 11.2lb |
||
| Rated output | 2.0 mV/V | Compensated temperature | -10...+40oC |
| Excitation | 3-15V | Operating temperature | -20...+60oC |
| Zero balance | ±0.05mV/V | Temperature shift zero | ±0.02% R.O./oC |
| Nonlinearity | ±0.1% R.O. | Temperature shift span | ±0.02% R.O./oC |
| Hysteresis | ±0.1% R.O. | Input resistance | 380±30 ohms |
| Nonrepeatability | ±0.05% R.O. | Output resistance | 350±5 ohms |
| Creep(5min) | ±0.05% R.O. | Insulation resistance | >5000Mohms |
| Safe overload | 150% F.S. | Ingress protection | IP65 |
| Ultimate overload | 200% F.S. | Material of element | Stainless steel |
| Cable | Ø3*4000mm 4-core shielded | ||
| Wiring code |
Compression@ |
||
Load cell zero output(Zero Balance):The output signal of the loadcell with no-load applied,expressed in mV/V or as a percentage of rated output.The zero output is caused by the stress during strain gauge bonding,it can be handled during calibration or signal processing without affecting the measurement accuracy.
The output range of Compression Tension Load Cell FSKE is normally within -30mV...+30mV,
Example: S-Beam Push Pull Load Cell FSKE-50N with 2.0mV/V rated output powered by 5V DC,the output range is -10mV...+10mV.
A signal conditioner can be used to convert mV signal into 0-5V/0-10V/4-20mA for easy signal processing.
Example: S Type Compression Tension Sensor FSKE-1kN working with amplifier FSC(4-12-20mA)-24V,the force-current relationship will be 0-1000N compression force VS 12-20mA output, 0-1000N tension force VS 12-4mA output.
