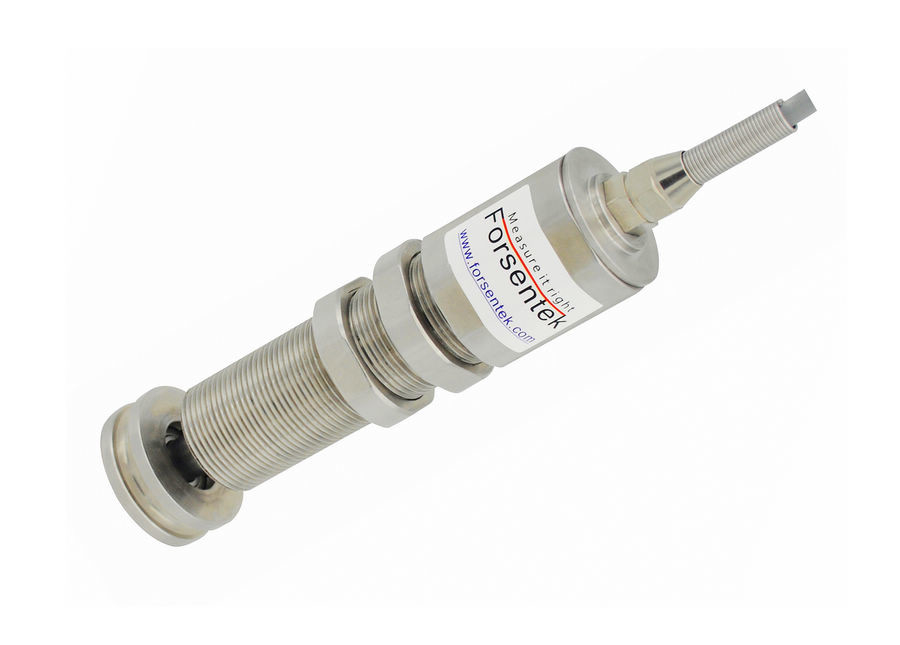

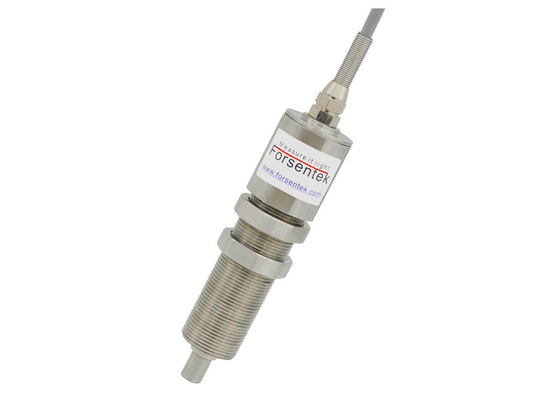

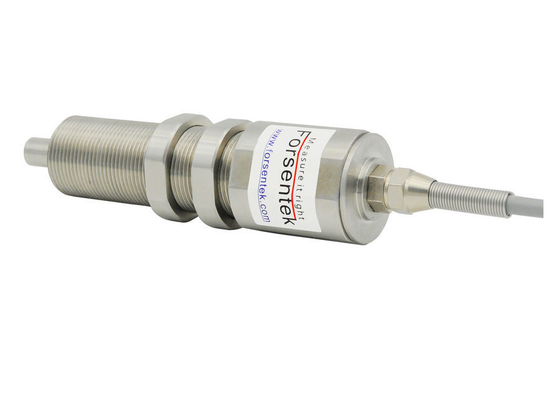

Single Pulley Roller Tension Sensor On-Line Tension Transducer

Single Pulley Roller Tension Sensor On-Line Tension Transducer

    • Single Pulley Roller Tension Sensor On-Line Tension Transducer
    • Single Pulley Roller Tension Sensor On-Line Tension Transducer
    • Single Pulley Roller Tension Sensor On-Line Tension Transducer
    • Single Pulley Roller Tension Sensor On-Line Tension Transducer
  • Single Pulley Roller Tension Sensor On-Line Tension Transducer

    Product Details:

    Place of Origin: China
    Brand Name: Forsentek
    Model Number: FZAD

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Packaging Details: Shockproof carton
    Delivery Time: 3-20 working days
    Payment Terms: T/T, Western Union, MoneyGram,Paypal
    Supply Ability: 1660pcs/month
    Contact Now
    Detailed Product Description
    Material: Stainless Steel Output: MV/V,0-5V,4-20mA
    Usage: Tension Force Measurement

    Single Pulley Roller Tension Sensor On-Line Tension Transducer

    Single Pulley Roller Rope Tension Sensor FZAD is a single roll tension transducer designed to measure the running line tensions of yarn, optic fibers, wires, webs, ropes, cables, tapes and other similar process materials which requires consistent tension to be maintained during production in order to deliver repeatable quality results, minimize downtime, and boost operator efficiency.The yarn is expected to run in a backward and forward motion, Tension sensors are used to measure the dynamical tension in a moving yarn and regulate the tension of the yarn on a winding machine. Wire Tension Transducer FZAD offers 0-10N / 0-20N / 0-50N / 0-100N / 0-200N / 0-300N / 0-500N seven measuring ranges to choose from, besides the mV/V output from the full wheatstone bridge, model FZAD can also deliver 0-5V, 0-10V, 4-20mA output through built-in amplifier. To meet requirements of different applications,Forsentek also provides tailor made service for our tension sensors.

    Single Pulley Roller Tension Sensor

    fiber tension measurement sensor

    Specifications

    Rated capacity

    10N / 20N / 50N / 100N / 200N / 300N / 500N

    Rated output 1.5mV/V / 0-5V / 0-10V / 4-20mA
    Excitation 3-15V / 12V DC / 24V DC
    Operating temperature -10...+60oC Temperature shift zero ±0.03% R.O./oC
    Nonlinearity ±0.5% R.O. Temperature shift span ±0.02% R.O./oC
    Hysteresis ±0.5% R.O. Input resistance 380±30 ohms
    Nonrepeatability ±0.2% R.O. Output resistance 350±5 ohms
    Creep(5min) ±0.1% R.O. Insulation resistance >2000Mohms
    Safe overload 120% F.S. Ingress protection IP50
    Ultimate overload 150% F.S. Material of element Stainless steel
    Cable Ø5*2000mm(Longer cable upon request)



    Single Pulley Roller Tension Transducer On-Line Tension Sensor

    Single Pulley Roller Tension Transducer

    Click here to download datasheet
