4-channel Load Cell Amplifier 0-3.3V 0-5V 4-20mA Signal Converter

Product Details:

Place of Origin:	China
Brand Name:	Forsentek
Model Number:	LC4A

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Packaging Details:	Shockproof carton
Delivery Time:	5 working days
Payment Terms:	T/T, Western Union, MoneyGram,Paypal
Supply Ability:	1475pcs/month

Contact Now

Detailed Product Description

Housing:	Aluminum	Power:	24V DC/12V DC
Excitation For Load Cell:	5V DC	Type:	Analog Type

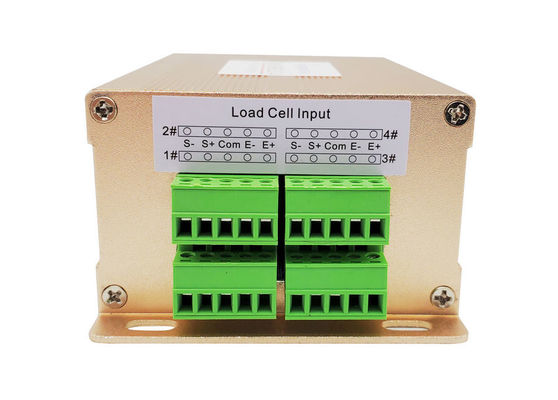

4-channel Load Cell Amplifier 0-3.3V 0-5V 4-20mA Signal Converter

Multi-Channel Load Cell Signal Conditioner LC4A can work with all our load cell sensors and torque transducers with mV/V configuration to deliver -5-5V / 0-3.3V / 0-5V / 0-10V / 0-20mA / 4-20mA for further data acquisition. Multi-channel load cell signal conditioner LC4A has 4 inputs and 4 outputs,each channel supports Zero adjustment and Gain adjustment for loadcell calibration. Analog Load Cell Signal Amplifier LC4A offers a compact signal processing solution for load measurement applications where multiple load cells are involved.

4_channel_load_cell_amplifier_0-3.3V

Specifications

Function	Turn mV signal into V or mA signal
Accuracy	0.15%
Power supply	24V DC or 12V DC
Output signal	-5-5V,-10-10V,0-5V,0-10V,4-20mA,0-20mA
Excitation for load cell	5V DC
Applicable sensitivity	0.6mV/V~3mV/V
Working temperature	-10...+60^oC
Material of housing	Aluminum
Ingress protection	IP40

4-channel Load Cell Signal Amplifier 0-3.3V 0-5V 4-20mA Signal Conditioner

multi_channel_signal_amplifier_0-3.3V

Click here to download datasheet
