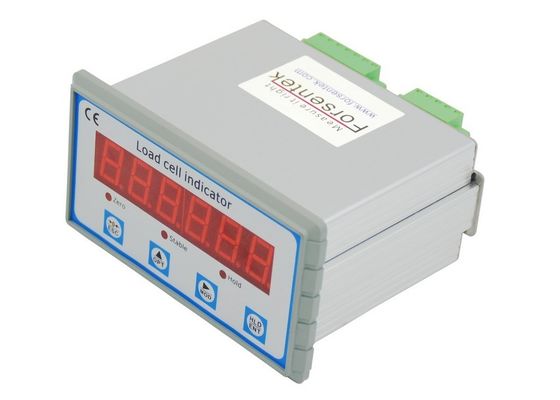

Load indicator weight controller torque display

Technical parameters

• CE approved

• Aluminum housing,compact size

• 24 bit Sigma-Delta ADC

• Power supply: 24V DC

• Load cell connection: 4-wire or 6-wire

• Load cell excitation: 5V DC

• Input range:-10mV~10mV

• Display range: -99999....999999

• High sampling speed:120Hz/480Hz/960Hz settable

• Working temperature:-10...+40^oC

• Humidity:<90% RH without dew

• Non-linearity:<0.01% F.S.

• I/O: 1 input and 2 outputs

• Communication interface:RS485 or RS232

• Analog output: 0-5V/0-10V/0-20mA/4-20mA/User self-define

Dimensions

Back panel

Load cell display weight controller

Load cell indicator FPT is specially designed for strain gauge based load cells,force sensors and torque transducers in the market.The display provides 5V DC as power supply for sensors.A high speed,low noice and high resolution 24 bit ADC is integrated in the controller to make it suitable for dynamic and high accuracy measurements.

Weight controller FPT is integrated with RS485 or RS232 communication port,supports amplified analog signal output like 0-5V,0-10V,0-20mA,4-20mA,which make it perfect for auto control in industrial applications.
