    Product Details:

    Place of Origin: China
    Brand Name: Forsentek
    Model Number: FZTE

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Packaging Details: Shockproof carton
    Delivery Time: 3-20 working days
    Payment Terms: T/T, Western Union, MoneyGram,Paypal
    Supply Ability: 5000pcs/month
    Contact Now
    Detailed Product Description
    Capacity: 10N 20N 50N 100N 200N 300N 500N Output: 1.5mV/V 0-5V 0-10V 4-20mA
    Principle: Strain Gauge Load Cell

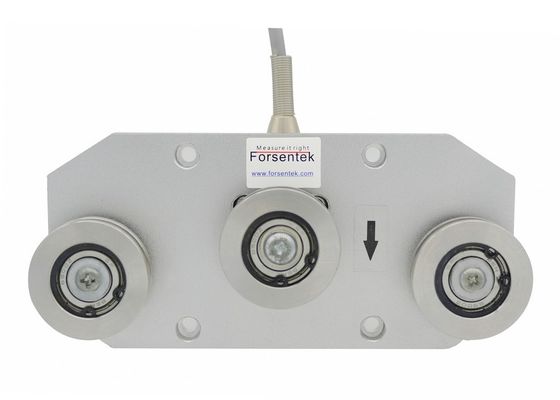

    Tension transducer|Tension measurement sensor

    tension transducer

    tension sensor

    Features

    • Stainless steel construction,strain gauge technology
    • 0-5V,0-10V or 4-20mA amplified output achievable

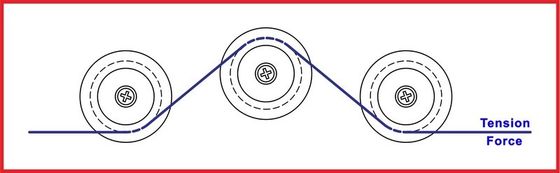

    • Widely used for yarn tension force measurement,cable tension force measurement.etc.

    Dimensions

    tension sensor
    tension transducer
    tension measurement
    Specifications

    Capacity 10N 20N 50N 100N 200N 300N 500N
    Rated output 1.5mV/V 0-5V 0-10V 4-20mA
    Excitation  5-15V
    Zero balance  ±2% R.O.
    Non-linearity  ±0.3% R.O.
    Hysteresis  ±0.3% R.O.
    Non-repeatability  ±0.1% R.O.
    Creep(30min)  ±0.1% R.O.
    Safe overload  150% F.S.
    Ultimate overload  200% F.S.
    Compensated temperature  -10...+40oC
    Operating temperature  -20...+60oC
    Temperature shift zero  ±0.05% R.O./10oC
    Temperature shift span  ±0.05% R.O./10oC
    Input resistance  690±100 ohms
    Output resistance  650±10 ohms
    Insulation resistance  >2000M ohms
    Ingress protection  IP50
    Material of element  Aluminum alloy
    Cable  Ø5*2000mm(Longer cable available)
    Wiring code

     Red--Exc+ Black--Exc-

     Green--Sig+ White--Sig-


    Wire tension transducer tensionmeasurement sensor

    wire tension sensor
