Low Profile Press Load Cell 500N 1000N 2000N Pull Push Force Sensor

Low Profile Press Load Cell 500N 1000N 2000N Pull Push Force Sensor

    • Low Profile Press Load Cell 500N 1000N 2000N Pull Push Force Sensor
    • Low Profile Press Load Cell 500N 1000N 2000N Pull Push Force Sensor
    • Low Profile Press Load Cell 500N 1000N 2000N Pull Push Force Sensor
    • Low Profile Press Load Cell 500N 1000N 2000N Pull Push Force Sensor
  • Low Profile Press Load Cell 500N 1000N 2000N Pull Push Force Sensor

    Product Details:

    Place of Origin: China
    Brand Name: Forsentek
    Certification: CE/RoHS
    Model Number: FCB-A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Packaging Details: Shockproof carton
    Delivery Time: 3-20 working days
    Payment Terms: T/T, Western Union, MoneyGram,Paypal
    Supply Ability: 2160pcs/month
    Contact Now
    Detailed Product Description
    Material: Aluminum Capacity: 500N 1kN 2kN
    Output: Analog Type: Tension/Compression
    Thread: M8*1

    Low Profile Press Load Cell 500N 1000N 2000N Pull Push Force Sensor

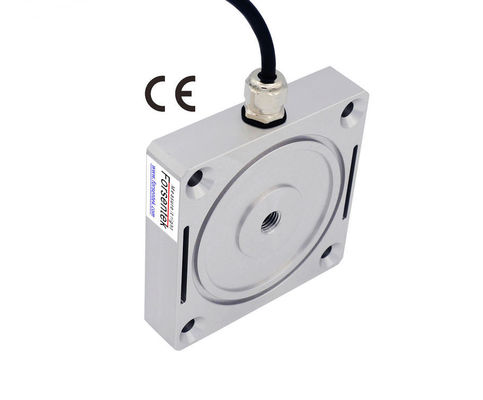

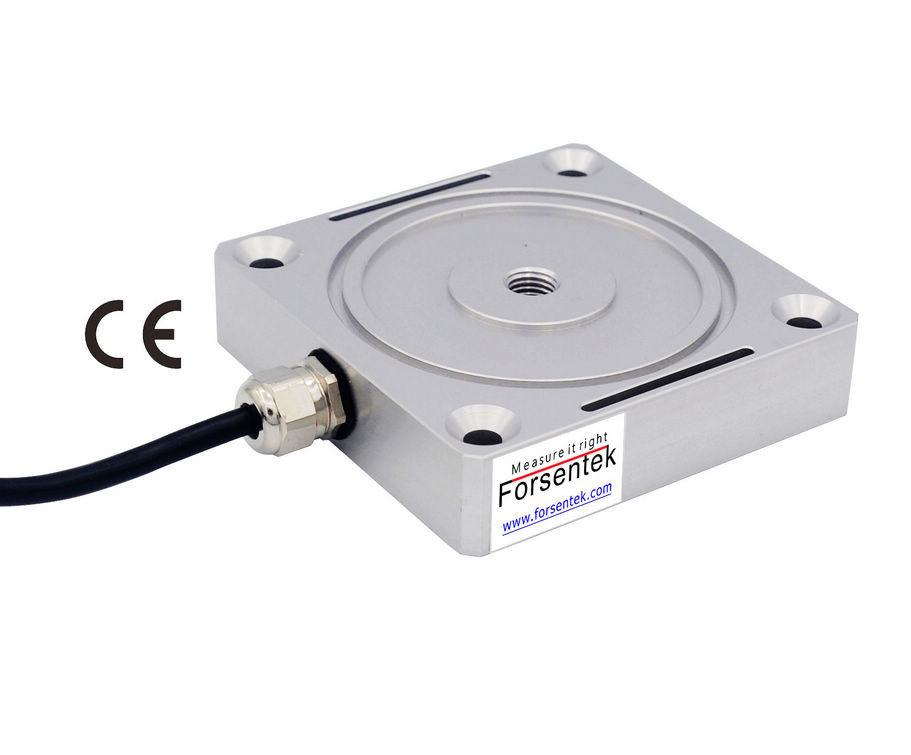

    Low Profile Press Force Sensor FCB-A utilizes strain gauge technology inteneded for both tension and compression force measurement. Compact design, suitable for force measuring applications where installation height is limited. Compression Force Sensor FCB-A offers 0-500N / 0-1kN / 0-2kN three rated measuring ranges to choose from, Press Load Cell FCB-A delivers mV/V output proportional to the applied load from the full wheatstone bridge. Different force loading tools can be attaached to the M8*1 threaded hole located at the center of the force sensor for different applications. Low profile load cell FCB-A is RoHS compliant and CE certified, it can also be modified or customized as per client's request.

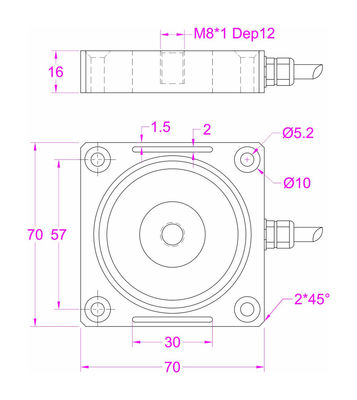

    press force transducer 2kN 1kN 500Npress force sensor 500N 1kN 2kN

    Specifications

    Rated capacity

    500N / 50kg / 110lb

    1kN / 100kg / 220lb

    2kN / 200kg / 440lb

    Rated output 1.5mV/V Compensated temperature -10...+40oC
    Excitation 3-15V Operating temperature -20...+60oC
    Zero balance ±0.05mV/V Temperature shift zero ±0.05% R.O./10oC
    Nonlinearity ±0.2% R.O. Temperature shift span ±0.05% R.O./10oC
    Hysteresis ±0.2% R.O. Input resistance 750±30 ohms
    Nonrepeatability ±0.1% R.O. Output resistance 700±10 ohms
    Creep(10min) ±0.1% R.O. Insulation resistance >5000Mohms
    Safe overload 150% F.S. Ingress protection IP62
    Ultimate overload 200% F.S. Material of element Aluminum
    Cable Ø4*2000mm 4-core shielded cable
    Wiring code

    Red--Power input+    Black--Power input-

    Green--Signal output+    White--Signal output-


    A load cell (or loadcell) is a transducer which converts force into a measurable electrical output. Although there are many varieties of loadcells, strain gauge load cells are the most commonly used type which is comprised of a solid metal body on which strain gauges have been secured to form a wheatstone bridge which delivers mV/V output.

    Load cell output: = (Power supply * Rated output) * Load / Capacity

    Rated output of FCB-A is around 1.5mV/V.
    Power supply is normally within 3-15V.
    Load / Capacity is within 0-1.
    So the output range of Push Pull Load Cell FCB-A is -25mV...+25mV.
    Example: Press Force Transducer FCB-A-500N
     with 1.5mV/V rated output powered by 10V DC, the output range is -15mV...+15mV.
    A signal conditioner can be used to convert mV signal into 0-5V/0-10V/4-20mA for easy signal processing.

    Example: Low Profile Press Load Cell FCB-A-2kN working with amplifier FSC(0-10V)-24V, the force-voltage relationship will be 0-2000N compressive force VS 0-10V output.

    Low Profile Press Force Transducer 500N 1000N 2000N Pull Push Load Cell

    press load cell 50kg 100kg 200kg

    Click here to download datasheet
