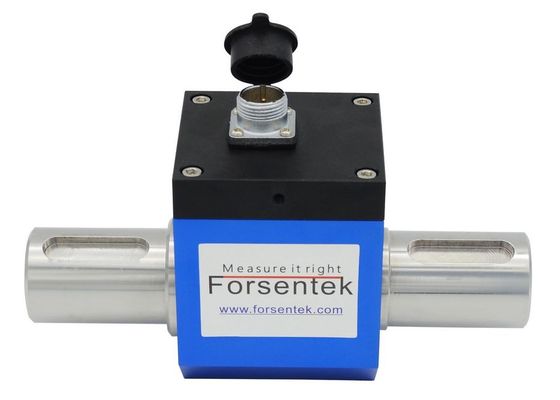

Rotary torque sensor 10NM 20NM 50NM 100NM 200NM 300NM 500NM torque transducer

Rotary torque sensor 10NM 20NM 50NM 100NM 200NM 300NM 500NM torque transducer

    • Rotary torque sensor 10NM 20NM 50NM 100NM 200NM 300NM 500NM torque transducer
    • Rotary torque sensor 10NM 20NM 50NM 100NM 200NM 300NM 500NM torque transducer
    • Rotary torque sensor 10NM 20NM 50NM 100NM 200NM 300NM 500NM torque transducer
    • Rotary torque sensor 10NM 20NM 50NM 100NM 200NM 300NM 500NM torque transducer
    • Rotary torque sensor 10NM 20NM 50NM 100NM 200NM 300NM 500NM torque transducer
    • Rotary torque sensor 10NM 20NM 50NM 100NM 200NM 300NM 500NM torque transducer
  • Rotary torque sensor 10NM 20NM 50NM 100NM 200NM 300NM 500NM torque transducer

    Product Details:

    Place of Origin: China
    Brand Name: Forsentek
    Certification: CE
    Model Number: FY01

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Packaging Details: Shockproof packing
    Delivery Time: 3-12 working days
    Payment Terms: Western Union, T/T,Paypal, MoneyGram
    Supply Ability: 1996pcs/month
    Contact Now
    Detailed Product Description
    Type: Rotary Torque Sensor Capacity: 10NM 20NM 30NM 50NM 100NM 200NM 300NM 500NM
    Output: Analog Output Structure: Shaft-to-shaft
    Usage: Rotating Torque Measurement

    Rotary torque sensor 10NM 20NM 50NM 100NM 200NM 300NM 500NM torque transducer

    rotary torque sensor



    Features

    • CE certified
    • Stainless steel measure element,aluminum housing
    • Shaft to shaft structure,easy to install
    • Strain gauge technology,analog output
    • Both clockwise and counterclockwise measurement
    • Up to 4000 r/m
    • Rotary torque measurement,dynamic torque measuring

    dynamic torque sensor

    Dimensions(unit in "mm")

    rotating torque measurement sensor

    rotary torque transducer

    Ordering code Measurement Range Torque direction
    FY01-10NM 0-10Nm

    Clockwise

    &

    Counterclockwise

    FY01-20NM 0-20N*m
    FY01-30NM 0-30N-m
    FY01-50NM 0-50Nm
    FY01-100NM 0-100N*m
    FY01-200NM 0-200Nm
    FY01-300NM 0-300N-m
    FY01-500NM 0-500Nm

    Specifications

    Rated capacity 10Nm / 1kg*m / 89 lbf-in
    20N*m / 2kgf*m / 177 lbf*in
    30Nm / 3kgf-m / 266 lbf-in
    50Nm / 5kgf*m / 443 lb-in
    100N*m / 10kgf*m / 885 in*lb
    200Nm / 20kg*m / 1770 lb-in
    300Nm / 30kg*m / 2655 lbf-in
    500N-m / 50kgf-m / 4425 in*lb
    Rated output 1.5 mV/V Compensated temperature -10...+40oC
    Excitation 3-15V Operating temperature -20...+60oC
    Zero balance ±0.05mV/V Temperature shift zero ±0.02% R.O./oC
    Nonlinearity ±0.2% R.O. Temperature shift span ±0.02% R.O./oC
    Hysteresis ±0.2% R.O. Input resistance 380±30 ohms
    Nonrepeatability ±0.1% R.O. Output resistance 352±5 ohms
    Creep(5min) ±0.1% R.O. Insulation resistance >5000Mohms
    Safe overload 150% F.S. Ingress protection IP40
    Ultimate overload 200% F.S. Material of element Stainless steel
    Cable Ø5*3000mm 4-core shielded
    Wiring code Clockwise@
    Red--Power input+ Black--Power input-
    Green--Signal output+ White--Signal output-

    slip ring torque transducer

    A torque sensor is a transducer that converts a torsional mechanial input into an electrical output signal.Rotary torque sensor is designed to measure rotating torque like motor torque , rotating shaft torque,mixture torque,etc..Rotary torque transducer can also be used to measure static torque(which is also known as reaction torque).

    torque measurement device

    FY01 is a slip ring torque transducer,utilizing strain gauge technology,compact size,shaft to shaft design,analog output,working with signal conditioner can get ±5V,±10V,0-5V,0-10V or 4-20mA output which is proportional to applied torque.The measured torque can also be display through torque indicator.



    torque measurement

    Click here to download datasheet
