Tension force sensor 1kN 500N 300N 200N 100N 50N 20N 10N tension force measurement

Tension force sensor 1kN 500N 300N 200N 100N 50N 20N 10N tension force measurement

    • Tension force sensor 1kN 500N 300N 200N 100N 50N 20N 10N tension force measurement
    • Tension force sensor 1kN 500N 300N 200N 100N 50N 20N 10N tension force measurement
    • Tension force sensor 1kN 500N 300N 200N 100N 50N 20N 10N tension force measurement
  • Tension force sensor 1kN 500N 300N 200N 100N 50N 20N 10N tension force measurement

    Product Details:

    Place of Origin: China
    Brand Name: Forsentek
    Model Number: FSSM

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Packaging Details: Shockproof carton
    Delivery Time: 3-20 working days
    Payment Terms: T/T, Western Union, MoneyGram,Paypal
    Supply Ability: 5000pcs/month
    Contact Now
    Detailed Product Description
    Material: Stainless Steel Capacity: 10N 20N 50N 100N 200N 300N 500N 1000N
    Output: Analog Output Principle: Strain Gauge Force Sensor
    Force Measure Direction: Tension Compression Force Measurement

    Tension force sensor 1kN 500N 300N 200N 100N 50N 20N 10N tension force measurement
    500N tension force sensor 300N
    Features

    • Miniature load cell,very compact size
    • Strain gauge technology,high accuracy
    • Tension and compression force measurement

    Specifications

    Capacity 10N / 1kgf / 2.2lbs
    20N / 2kgf / 4.4lb
    50N / 5kgf / 10 lbs
    100N / 10kgf / 20lb
    200N / 20kgf / 40 lbs
    300N / 30kgf / 60 lb
    500N / 50kgf / 110 lbs
    1kN / 100kgf / 220 lb
    Rated output 2.0mV/V
    Excitation 3-12V
    Zero balance ±0.05mV/V
    Nonlinearity ±0.1% R.O.
    Hysteresis ±0.1% R.O.
    Nonrepeatability ±0.05 R.O.
    Creep(30min) ±0.1 R.O.
    Safe overload 150% F.S.
    Ultimate overload 200% F.S.
    Compensated temperature -10...+40oC
    Operating temperature -20...+60oC
    Temperature shift zero ±0.01% R.O./oC
    Temperature shift span ±0.01% R.O./oC
    Input resistance 380±30 ohms
    Output resistance 350±5 ohms
    Insulation resistance >2000M ohms
    Ingress protection IP62
    Material of element Stainless steel
    Cable Ø2*4000mm
    Wiring code Compression@
    Red--E+ Black--E- Green--S+ White--S-



    Compression and tension force sensor FSSM

    200N tension force sensor 100N

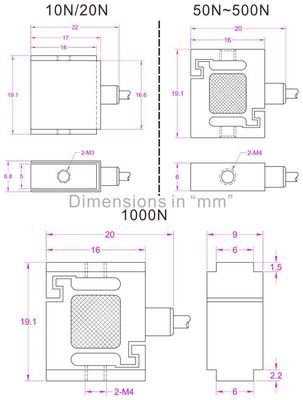

    Dimensions(in milimeter)

    100N tension force measurement 50N

    Ordering Code:
    FSSM-10N, FSSM-20N, FSSM-50N, FSSM-100N, FSSM-200N, FSSM-300N, FSSM-500N, FSSM-1kN
