IP68 waterproof load cell stainless steel shear beam load cell

IP68 waterproof load cell stainless steel shear beam load cell

    • IP68 waterproof load cell stainless steel shear beam load cell
    • IP68 waterproof load cell stainless steel shear beam load cell
  • IP68 waterproof load cell stainless steel shear beam load cell

    Product Details:

    Place of Origin: China
    Brand Name: Forsentek
    Model Number: FHSR

    Payment & Shipping Terms:

    Minimum Order Quantity: 3pcs
    Packaging Details: Shockproof carton
    Delivery Time: 3-20 working days
    Payment Terms: T/T, Western Union, MoneyGram,Paypal
    Supply Ability: 5000pcs/month
    Contact Now
    Detailed Product Description
    Material: Stainless Steel Capacity: 110kg 220kg 550kg 1100kg 1760kg 2200kg 4400kg
    Output: Analog Output Usage: Load Measurement

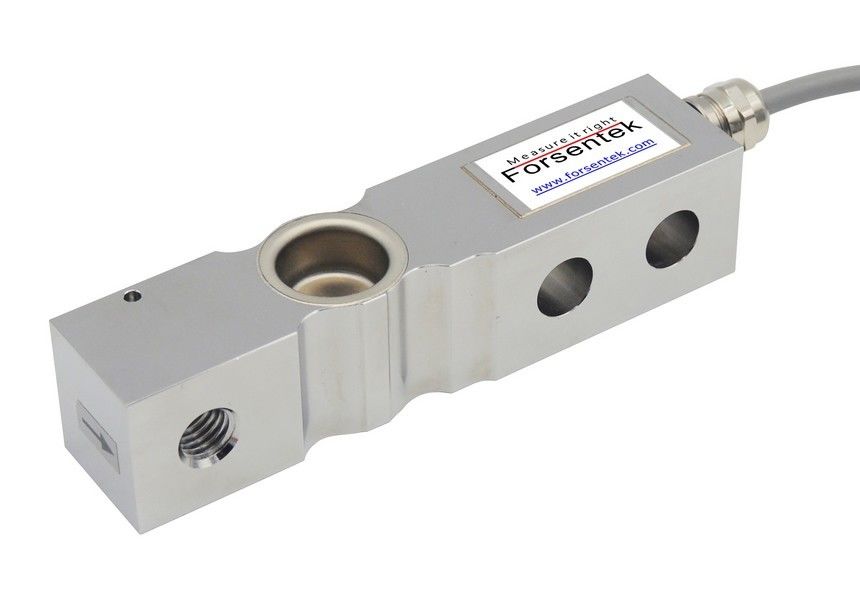

    IP68 waterproof load cell stainless steel shear beam load cell

    IP68 waterproof load cell FHSR is made of stainless steel with IP68 waterproof using laser welding technology which makes it suitable for industrial weighing applications with harsh environment.High accuracy load cell FHSR offers 110kg / 220kg / 550kg / 1100kg / 1760kg / 2200kg / 4400kg seven different measuring ranges to choose from,weight sensor FHSR delivers maximum 0.02% non-linearity of the rated output.You may find FHSR applicable for applications such as tank weighing,hopper weighing,batching or platform scales as well as for level monitoring,etc..

    load cell waterproof

    Specifications

    Capacity 110kg 220kg 550kg 1100kg 1760kg 2200kg 4400kg
    Rated output 1.94mV/V
    Excitation 3-15V
    Zero balance ±2% R.O.
    Nonlinearity ±0.02% R.O.
    Hysteresis ±0.02% R.O.
    Nonrepeatability ±0.02% R.O.
    Creep(30min) ±0.02% R.O.
    Safe overload 150% F.S.
    Ultimate overload 200% F.S.
    Compensated temperature -10...+40oC
    Operating temperature -20...+65oC
    Temperature shift zero ±0.02% R.O./10oC
    Temperature shift span ±0.02% R.O./10oC
    Input resistance 390±30 ohms
    Output resistance 352±3 ohms
    Insulation resistance >5000M ohms
    Ingress protection IP68
    Material of element Stainless steel
    Cable Ø5.4*3000mm
    Wiring code

    Blue--Exc+ Black--Exc-

    Green--Sen+ Grey--Sen-

    White--Sig+ Red--Sig-

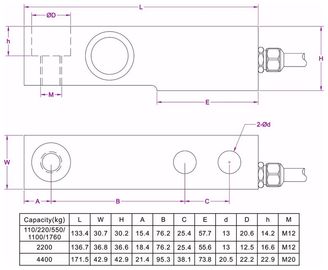

    Dimensions(Unit in "mm")

    shear beam load cell stainless steel

    stainless steel load cell pdf
