Low profile reaction torque transducer thru hole robot joint torque sensor

Low profile reaction torque transducer thru hole robot joint torque sensor

    • Low profile reaction torque transducer thru hole robot joint torque sensor
    • Low profile reaction torque transducer thru hole robot joint torque sensor
    • Low profile reaction torque transducer thru hole robot joint torque sensor
    • Low profile reaction torque transducer thru hole robot joint torque sensor
  • Low profile reaction torque transducer thru hole robot joint torque sensor

    Product Details:

    Place of Origin: China
    Brand Name: Forsentek
    Model Number: FTHB

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Packaging Details: Shockproof carton
    Delivery Time: 3-20 working days
    Payment Terms: Western Union, MoneyGram, T/T,Paypal
    Supply Ability: 2000pcs/month
    Contact Now
    Detailed Product Description
    Material: Stainless Steel Capacity: 5NM 10NM 15NM (Customizable)
    Type: Reaction Torque Sensor Principle: Strain Gauge Torque Sensor
    Application: Robot Arm Torque Measurement

    Low profile reaction torque transducer thru hole robot joint torque sensor

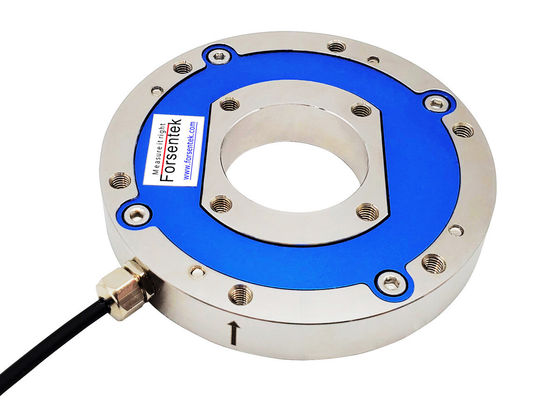

    Low profile through hole flange mounted robot torque sensor FTHB is made of stainless steel based on strain gauge technology to deliver maximum 0.3% non-linearity of the rated output, Torque Transducer FTHB offers 5NM/10NM two rated capacities to choose from. Besides the standard specifications, model FTHB can also be modified or customzied as per clients' requirements. Low profile thru-hole design, flange to flange mounting, which enables FTHB to be easily mounted with servo or stepper motor and get the rotating torque measured.

    robot_torque_sensor
    Dimensions(Customizable)
    Low profile reaction torque transducer thru hole robot joint torque sensor
    Specifications(Customizable)

    Rated capacity 5NM 10NM(Customizable)
    Rated output 1.0 mV/V
    Excitation 3-12V
    Zero balance ±0.05mV/V
    Non-linearity ±0.3% F.S.
    Hysteresis ±0.3% F.S.
    Non-repeatability ±0.1% F.S.
    Creep(10min) ±0.1% F.S.
    Safe overload 150% F.S.
    Ultimate overload 200% F.S.
    Compensated temp. -10...+40oC
    Operating temp. -20...+60oC
    Temp. shift zero ±0.02% F.S./oC
    Temp. shift span ±0.02% F.S./oC
    Input resistance 380±30 ohms
    Output resistance 380±30 ohms
    Insulation resistance >2000M ohms
    Ingress protection IP50
    Material of element Stainless steel
    Cable Ø3*3000mm 4-core shielded cable
    Wiring code

    Red--Exc+ Black--Exc-

    Green--Sig+ White--Sig-



    A torque sensor is a transducer that converts mechanical torque into mV signal proportional to the applied torque.The acting torsion causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply, the output signal between Sig+ and Sig- will change proportionally,thus the moment can be measured by measuring the output signal from the transducer.The output range of FTHB is normally within -20mV...+20mV, signal amplification may be required for most applications, a signal conditioner can be used to get -5~5V, 0-10V or 4-20mA output for easy data processing.
