Place of Origin: | China |
Brand Name: | Forsentek |
Certification: | CE |
Model Number: | FFA |
Minimum Order Quantity: | 1pc |
---|---|
Packaging Details: | Shockproof carton |
Delivery Time: | 3-20 working days |
Payment Terms: | T/T, Western Union, MoneyGram,Paypal |
Supply Ability: | 2190pcs/month |
Type: | Flange Mounted Load Cell | Capacity: | 4.5klb 2.25klb 1.12klb 450lb 225lb 112lb 45lb |
---|---|---|---|
Load Direction: | Compression/Tension | Connection: | Flange-to-Flange |
Output: | Analog Transducer |

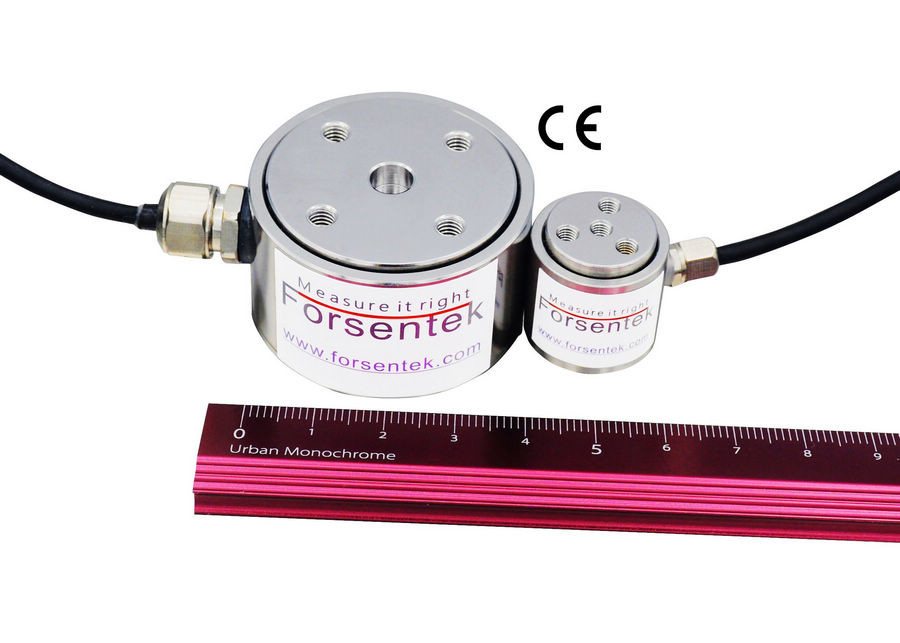

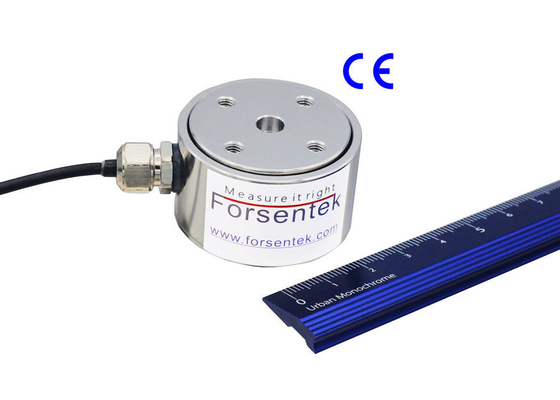

Flange Type Compression Force Transducer 4.5klb 2.25klb 1.12klb Compression Load Cell

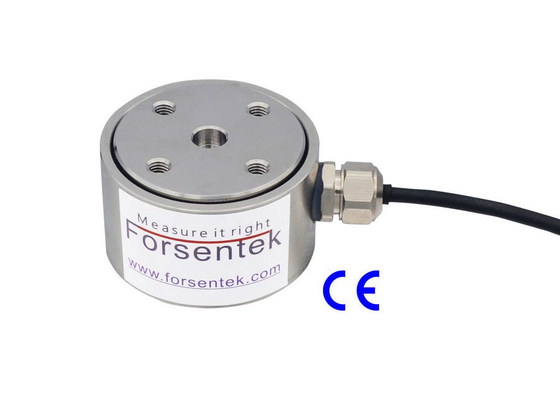

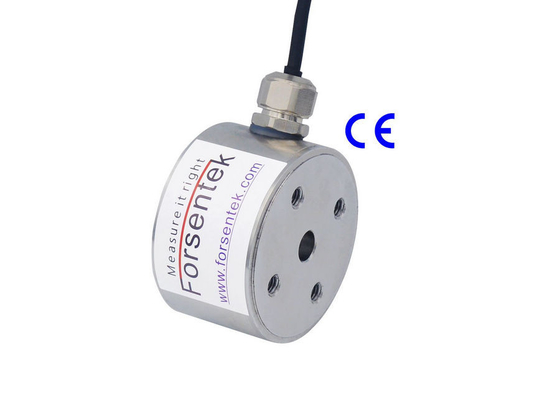

Flange Mounted Compression Force Load Cell FFA is made of stainless steel utilizing strain gauge technology to deliver maximum 0.1% non-linearity of full scale.Tension Compression Force Sensor FFA offers 0-45lb / 0-112lb / 0-225lb / 0-450lb / 0-1.12klb / 0-2.25klb / 0-4.5klb seven rated measuring ranges to choose from,Cylindrical Force Transducer FFA can be used for both tension and compression force measurement. Stainless steel construction, flange design, compact size, bidirectional force measurement, high accuracy, Flange Type Load Cell FFA offers a perfect force measuring solution for applications such as wire tension control, force distribution analysis, automated control, cylinder thrust measurement, assembly force monitoring, spring testing, ultrasonic welding clamp force control, hand press force verification,and so on. In addition to the standard specifications, Forsentek is also capable of and willing to provide custom design service to meet requirements of different applications.
Ordering code | Measurement Range | Force direction |
FFA-200N | 0-200N / 0-20kgf | Tension/compression |
FFA-500N | 0-500N / 0-50kgf | |
FFA-1kN | 0-1kN / 0-100kgf | |
FFA-2kN | 0-2kN / 0-200kgf | |
FFA-5kN | 0-5kN / 0-500kgf | |
FFA-10kN | 0-10kN / 0-1000kgf | |
FFA-20kN | 0-20kN / 0-2000kgf |

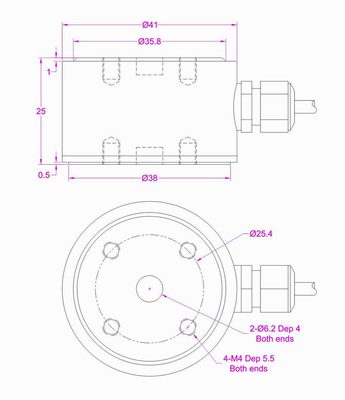

Specifications
Rated capacity | 200N / 500N / 1kN / 2kN / 5kN / 10kN / 20kN 20kg / 50kg / 100kg / 200kg / 500kg / 1000kg / 2000kg 45lb / 110lb / 220lbs / 450lbf / 1.1klb / 2.2klb / 4.5klb |
||
Rated output | 2.0 mV/V | Compensated temperature | -10...+40oC |
Excitation | 3-15V | Operating temperature | -20...+60oC |
Zero balance | ±0.05mV/V | Temperature shift zero | ±0.02% R.O./oC |
Nonlinearity | ±0.1% R.O. | Temperature shift span | ±0.02% R.O./oC |
Hysteresis | ±0.1% R.O. | Input resistance | 385±30 ohms |
Nonrepeatability | ±0.05% R.O. | Output resistance | 350±10 ohms |
Creep(5min) | ±0.05% R.O. | Insulation resistance | >5000Mohms |
Safe overload | 150% F.S. | Ingress protection | IP62 |
Ultimate overload | 200% F.S. | Material of element | Stainless steel |
Cable | Ø3*3000mm 4-core shielded cable | ||
Wiring code |
Compression@ Red--Power input+ Black--Power input- Green--Signal output+ White--Signal output- |
A load cell (or loadcell) is a transducer which converts force into a measurable electrical output. Although there are many varieties of loadcells, strain gauge load cells are the most commonly used type which is comprised of a solid metal body on which strain gauges have been secured to form a wheatstone bridge which delivers mV/V output.
Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of flange type compression load cell FFA is around 2.0mV/V.
Power supply of cylindrical force sensor FFA is normally within 3-15V.
Load / Capacity is within 0-1.
So the output range of column type load cell FFA is normaly within -30mV...+30mV for tension and compression force measurement.
Example one: Flange Type Tension Compression Force Transducer FFA-5kN with 2.0mV/V rated output powered by 3.3V DC,the output range is -6.6mV...+6.6mV.
Example two: Tension/Compression Load Cell FFA-2kN with 2.0mV/V rated output powered by 10V DC,the output range is -20mV...+20mV.
A loadcell signal conditioner can be used to convert mV signal into 0-5V/0-10V/4-20mA for easy signal processing.
Example one: Tension And Compression Force Transducer FFA-1kN working with amplifier FSC(-10-10V)-24V, the force-voltage relationship will be 0-1kN compression force VS 0-10V output, 0-1kN tension force VS 0-(-10V) output.
Example two: Pull And Push Load Cell FFA-500N working with amplifier FSC(4-12-20mA)-24V,the force-current relationship will be 0-500N compression force VS 12-20mA output, 0-500N tension force VS 12-4mA output.
