    Detailed Product Description
    Type: Miniature Button Load Cell Usage: Compression Force Measurement
    Capacity: 11lb 22lb 45lb 112lb Output: Analog Sensor
    Diameter: 8mm Height: 6mm

    Micro Compression Load Cell 11lb 22lb 45lb 112lb Miniature Compression Force Sensor

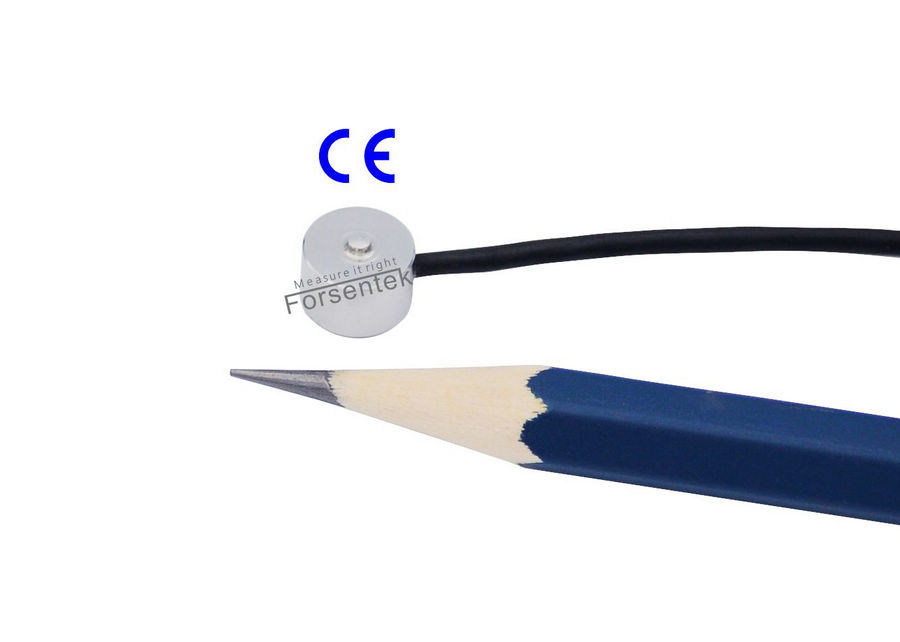

    Miniature Compression Force Load Cell FC8E is made of stainless steel based on metal foil strain gauge technology intended for compression force measurement. Subminiature button load cell FC8E offers 0-11 lb / 0-22 lb / 0-45 lb / 0-112 lb four rated measuring ranges to choose from. Micro compression load cell FC8E is featured with only 8mm outer diameter and 6mm total height which makes it extremely suitable for force measurement applications where mounting space is limited. Typical applications for smallest compression sensor FC8E are such as clamping force measurement, force overload protection, load distribution analysis, pressing die force measurement, auto equipment, assembly line and so on. Compression type loadcell FC8E can also be modified or customzied as per request of our clients.

    45lb miniature compression load cell 112lb45lb micro compression force transducer 110lb

    Specifications

    Rated capacity

    5kg / 50N / 11lb

    10kg / 100N / 22lb

    20kg / 200N / 45lb

    50kg / 500N / 112lb

    Rated output 1.0 mV/V Compensated temperature -10...+40oC
    Excitation 3-10V Operating temperature -20...+60oC
    Zero balance ±0.1mV/V Temperature shift zero ±0.05% R.O./oC
    Nonlinearity ±1% R.O. Temperature shift span ±0.05% R.O./oC
    Hysteresis ±1% R.O. Input resistance 900±100 ohms
    Nonrepeatability ±0.5% R.O. Output resistance 900±100 ohms
    Creep(5min) ±0.5% R.O. Insulation resistance >2000Mohms
    Safe overload 150% F.S. Ingress protection IP65
    Ultimate overload 200% F.S. Material of element Stainless steel
    Cable Ø2*4000mm 4-core shielded cable
    Wiring code

    Red--Power input+    Black--Power input-

    Green--Signal output+    White--Signal output-


    A load cell (or loadcell) is a transducer which converts force into a measurable electrical output. Although there are many varieties of loadcells, strain gauge load cells are the most commonly used type which is comprised of a solid metal body on which strain gauges have been secured to form a wheatstone bridge which delivers mV/V output.

    Load cell output: = (Power supply * Rated output) * Load / Capacity

    Rated output of micro load cell FC8E is normally around 1mV/V.
    Power supply miniature force sensor FC8E is normally within 3-10V.
    Load / Capacity is within 0-1.
    So the output range of subminiature button load cell FC8E is normally with 0...10mV.
    Example one: Smallest Compression Sensor FC8E-500N with 1.0mV/V rated output powered by 5V DC,the output range is 0~5mV.
    Example two: Micro Button Load Cell FC8E-200N with 1.0mV/V rated output powered by 3.3V DC,the output range is 0~3.3mV.

    A signal conditioner can be used to convert mV signal into 0-5V/0-10V/4-20mA for easy signal processing.
    Example one: Miniature Compression Force Transducer FC8E-100N working with amplifier FSC(0-10V)-24V,the load-voltage relationship will be 0-100N compression force VS 0-10V output.

    Example two: Smallest Compression Load Cell FC8E-50N working with amplifier FSC(4-20mA)-24V,the force-current relationship will be 0-200N compression load VS 4-20mA output.

    Micro Compression Force Sensor 11lb 22lb 45lb 112lb Miniature Compression Load Cell

    11lb micro compression load cell 22lb

    Click here to download datasheet
