Type: | Universal Pancake Load Cell | Load Direction: | Tension/Compression |
---|---|---|---|
Usage: | Force Measurement | Capacity: | 2klb 1klb 500lb 200lb 100lb 50lb |
Output: | Analog | Thread: | M16*1.5 |

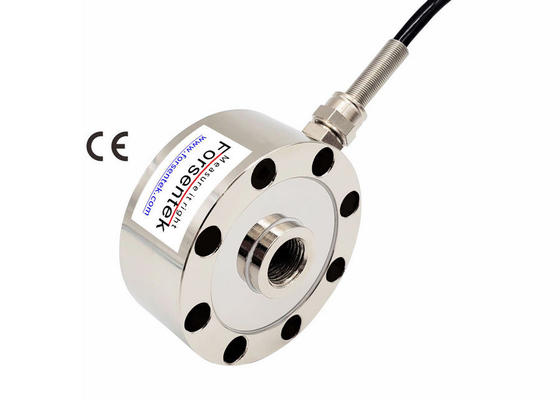

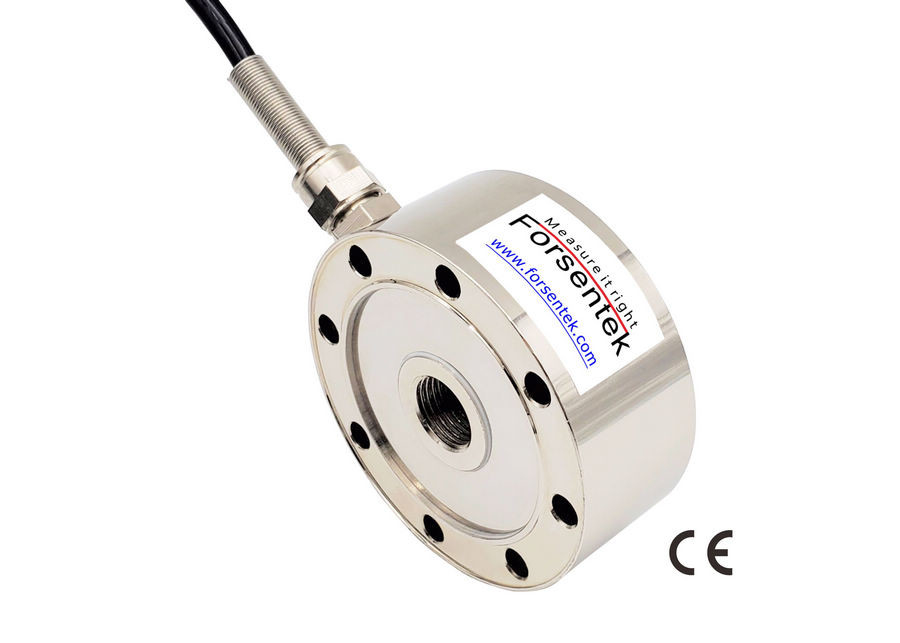

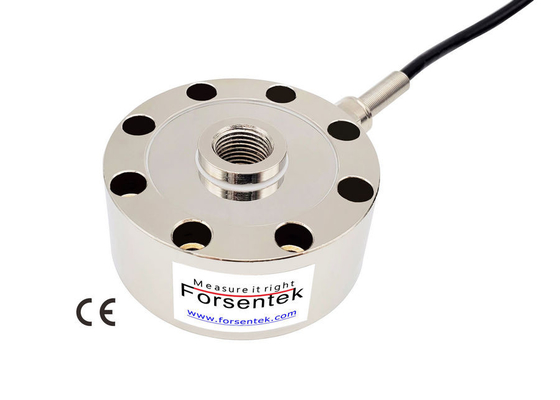

Compression Force Transducer 200lb 100lb 50lb Universal Pancake Load Cell

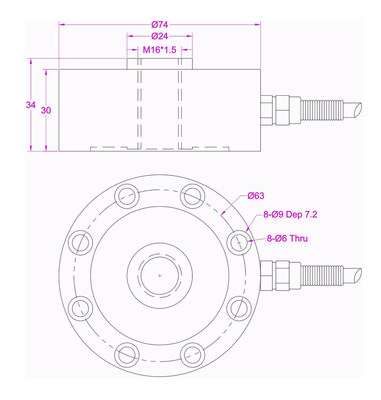

M16 threaded Universal Compression Force Load Cell FCMA is made of high stiffness alloy steel based on foil strain gauge technology to deliver 2.0mV/V rated output proportional to the applied force.Pancake load cell FCMA offers 0-66lb / 0-110lb / 0-220lb / 0-440lb / 0-660lb / 0-1100lb / 0-2200lb seven rated measuring ranges with maximum 0.1% non-linearity of the full capacity to choose from intended for both static and dynamic force measurement, universal load cell FCMA can be used for both tension and compression measurement,low profile structure makes it also suitable for in-line force monitoring. Press Force Transducer FCMA is designed with a M16x1.5 threaded hole running through the center of the transducer which can be used to mount attachments such as load buttons,eye bolts or other adapters for force loading,this makes spoke type load cells very adaptable to various cases,you may find pancake type load cell FCMA applicable for force measurement in injection-molding machines,press machines and material testing equipment,weight measurement for tanks,vessels and hoppers, and so on.
Specifications
Rated capacity |
30kg / 300N / 66lbf 50kg / 500N / 110lb 100kg / 1kN / 220lb 200kg / 2kN / 440lb 300kg / 3kN / 660lb 500kg / 5kN / 1.1klb 1000kg / 10kN / 2.2klb |
||
Rated output | 2.0 mV/V | Compensated temperature | -10...+40oC |
Excitation | 3-15V | Operating temperature | -20...+60oC |
Zero balance | ±0.05mV/V | Temperature shift zero | ±0.05% R.O./10oC |
Nonlinearity |
±0.1% R.O. |
Temperature shift span | ±0.05% R.O./10oC |
Hysteresis |
±0.1% R.O. |
Input resistance | 750±50 ohms |
Nonrepeatability |
±0.05% R.O. |
Output resistance | 700±10 ohms |
Creep(10min) | ±0.05% R.O. | Insulation resistance | >2000Mohms |
Safe overload | 150% F.S. | Ingress protection | IP65 |
Ultimate overload | 200% F.S. | Material of element | Alloy steel |
Cable | Ø5*2000mm 4-core shielded cable | ||
Wiring code |
Compression@ Red--Power input+ Black--Power input- Green--Signal output+ White--Signal output- |

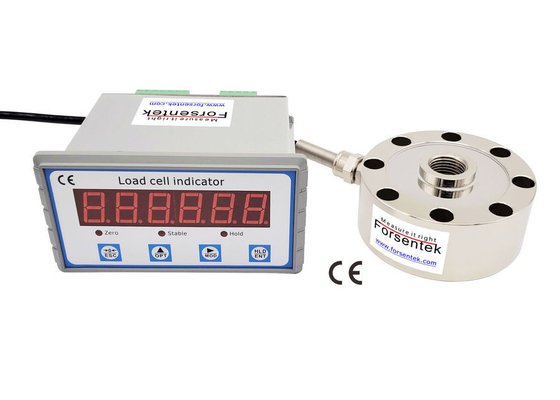

A load cell (or loadcell) is a transducer which converts force into a measurable electrical output. Although there are many varieties of loadcells, strain gauge load cells are the most commonly used type which is comprised of a solid metal body on which strain gauges have been secured to form a wheatstone bridge which delivers mV/V output.The output range of compression sensor FCMA is normally within -30mV...+30mV,and signal amplification may be required for most applications,a load cell signal transmitter can be used to get 0-5V,0-10V or 4-20mA signal for easy data acquisition afterwards. For example: Compression Transducer FCMA-500kg working with amplifier FSC(0-10V)-24V, the load-output relationship will be 0-500kg compression load VS 0-10V output. Weight indicator can be used to display the measured value, load cell display FPT is integrated with high accuracy 24 bit Sigma-Delta ADC, sampling speed up to 960Hz,supports RS485 or RS232 communication port,can also output 0-5V,0-10V,0-20mV or 4-20mA amplified signal.
