    Type: Push And Pull Load Cell Capacity: 50N 100N 200N 500N 1000N
    Structure: Threaded Inline Load Cell Output: Analog Sensor
    Thread: M5/M6 Load Direction: Tension/Compression

    Pull Load Cell 100N Pull Force Transducer 200N Pull Force Measurement 500N

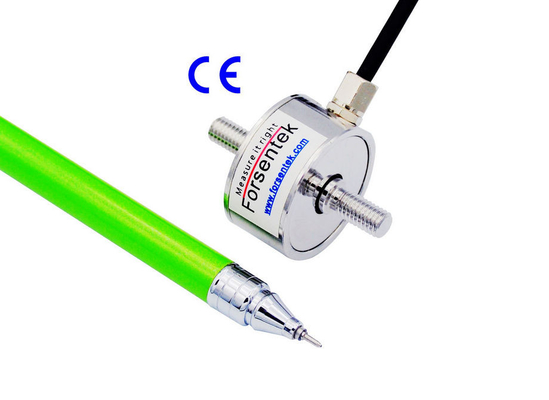

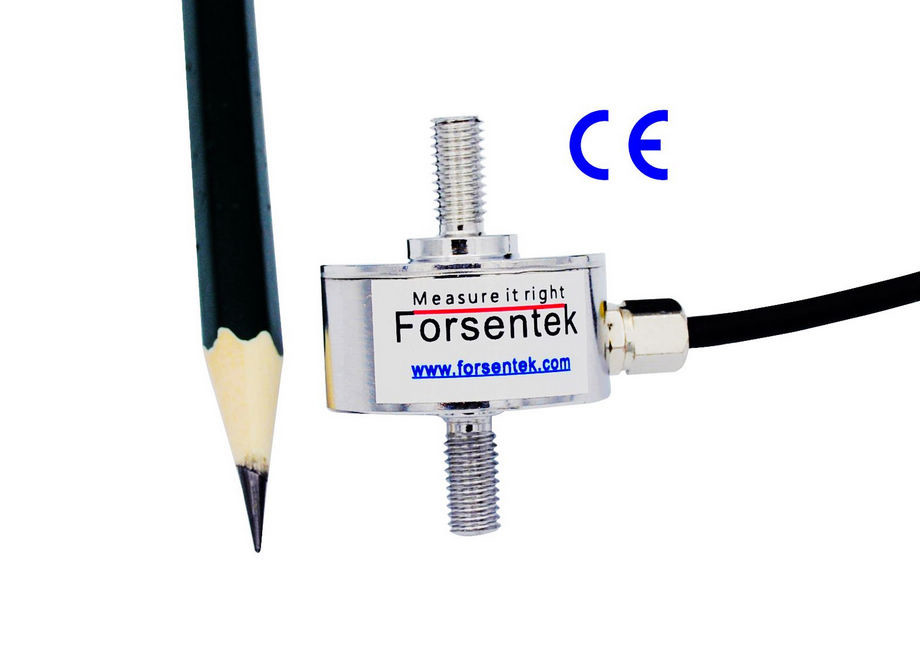

    Threaded in-line Push Pull Load Cell FL25 is made of 17-4 stainless steel and CE certified. Rod End Push Pull Force Transducer FL25 offers rugged structure for industrial applications. Inline load cells are designed to be mounted inline to the load axis for both tension and compression force measurement. In-line Push And Pull Force Sensor FL25 can be easily mounted to existing system through M5 or M6 threaded rods located on both sides of the transducer,these metric threads can also be used to mount attachments,such as female eye bolt, bolt adapter,etc., to fit different usage requirements. Pull And Push Force Transducer FL25 uses metal foil strain gauge technology to deliver 2.0mV/V rated output with 0-50N / 0-100N / 0-200N / 0-300N / 0-500N / 0-600N / 0-1000N seven rated measuring ranges to choose from. Each sensor is integrated with a 4-meter-long 4-core shielded cable,the cable comes with a free end which makes it easy to assemble any types of connectors for electrical connection. Inline Type Push Pull Load Cell FL25 is normally used for press-in force measurement, cylinder push pull force measurement, auto equipment, production line, hand press machine.etc. Transducer FL25 can be modified or customized as per request of our clients.

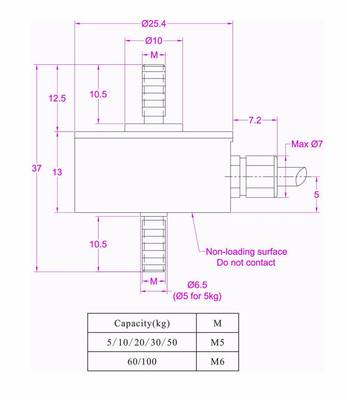

    Pull_Load_Cell_100NPull_Force_Transducer_500N

    Ordering code: FL25-5kg,    FL25-10kg,    FL25-20kg,    FL25-30kg,    FL25-50kg,    FL25-60kg,    FL25-100kg

    Specifications

    Rated capacity

    50N / 5kg / 11lb

    100N / 10kg / 22lb

    200N / 20kg / 44lb

    300N / 30kg / 66lb

    500N / 50kg / 110lb

    600N / 60kg / 130lb

    1kN / 100kg / 220lb

    Rated output 2.0 mV/V Compensated temperature -10...+40oC
    Excitation 3-15V Operating temperature -20...+60oC
    Zero balance ±0.05mV/V Temperature shift zero ±0.02% R.O./oC
    Nonlinearity ±0.5% R.O. Temperature shift span ±0.02% R.O./oC
    Hysteresis ±0.5% R.O. Input resistance 750±100 ohms
    Nonrepeatability ±0.2% R.O. Output resistance 750±100 ohms
    Creep(10min) ±0.1% R.O. Insulation resistance >5000Mohms
    Safe overload 150% F.S. Ingress protection IP64
    Ultimate overload 200% F.S. Material of element Stainless steel
    Cable Ø3*4000mm 4-core shielded cable
    Wiring code

    Red--Power input+    Black--Power input-

    Green--Signal output+    White--Signal output-



    A load cell (or loadcell) is a transducer which converts force into a measurable electrical output. Although there are many varieties of loadcells, strain gauge load cells are the most commonly used type which is comprised of a solid metal body on which strain gauges have been secured to form a wheatstone bridge which delivers mV/V output.

    Load cell output: = (Power supply * Rated output) * Load / Capacity

    Rated output of Pull Load Cell FL25 is around 2.0mV/V.
    Power supply of Push Pull Force Sensor FL25 is normally within 3-15V.
    Load / Capacity is within 0-1.
    So the output range of Pull And Push Load Cell FL25 is normally within -30mV...+30mV for push and pull force measurement.
    Example one: Miniature Pull Load Cell FL25-50kg with 2.0mV/V sensitivity powered by 5V DC,the output range is -10mV...+10mV.
    Example two: In-line Push Pull Load Cell FL25-10kg with 2.0mV/V rated output powered by 10V DC,the output range is -20mV...+20mV.

    Load cell + Signal amplifier:
    A signal conditioner can be used to convert mV signal into 0-5V/0-10V/4-20mA for easy signal processing.
    Example: Push And Pull Load Cell FL25-20kg working with amplifier FSC(-10-10V)-24V,the load-voltage relationship will be 0-20kg compression load VS 0-10V output, 0-20kg tension load VS 0-(-10V) output, which is linear regardless of the measurement error.

    Pull Load Cell 100N Pull Force Transducer 200N Pull Force Measurement 500N

    Pull_Load_Cell_200N

    Click here to download datasheet
