| Place of Origin: | China |
| Brand Name: | Forsentek |
| Certification: | CE |
| Model Number: | FSKE |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | Quote by email |
| Packaging Details: | Shockproof carton |
| Delivery Time: | 3-20 working days |
| Payment Terms: | T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 3420pcs/month |
| Type: | Compression And Traction Load Cell | Capacity: | 2kN 1kN 500N 200N 100N 50N |
|---|---|---|---|
| Structure: | S Beam Force Sensor | Load Direction: | Push/Pull |

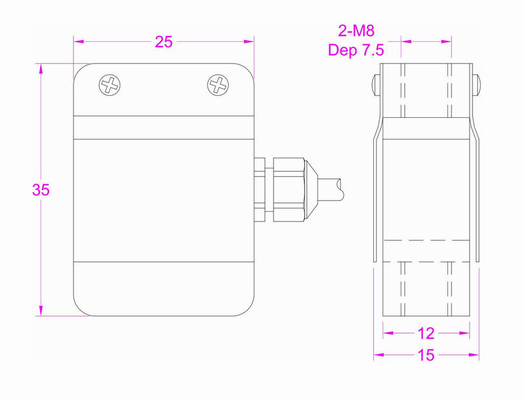

| Output: | Analog Force Transducer | Connection: | M8 Threaded Hole |
Compression And Traction Load Cell 2kN 1kN 500N 200N 100N 50N Pull Force Sensor

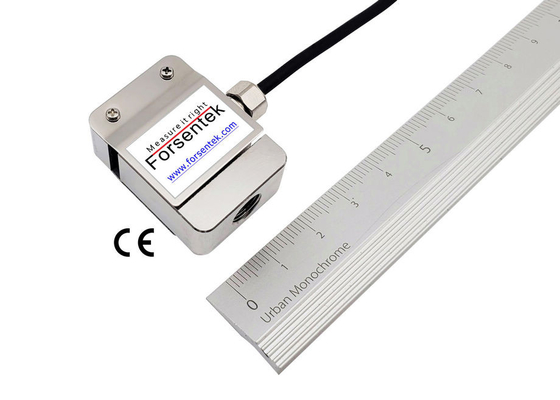

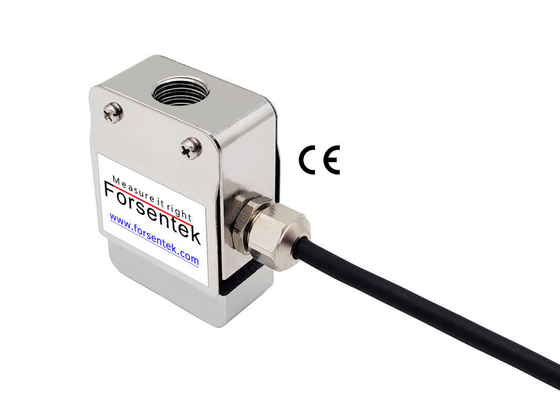

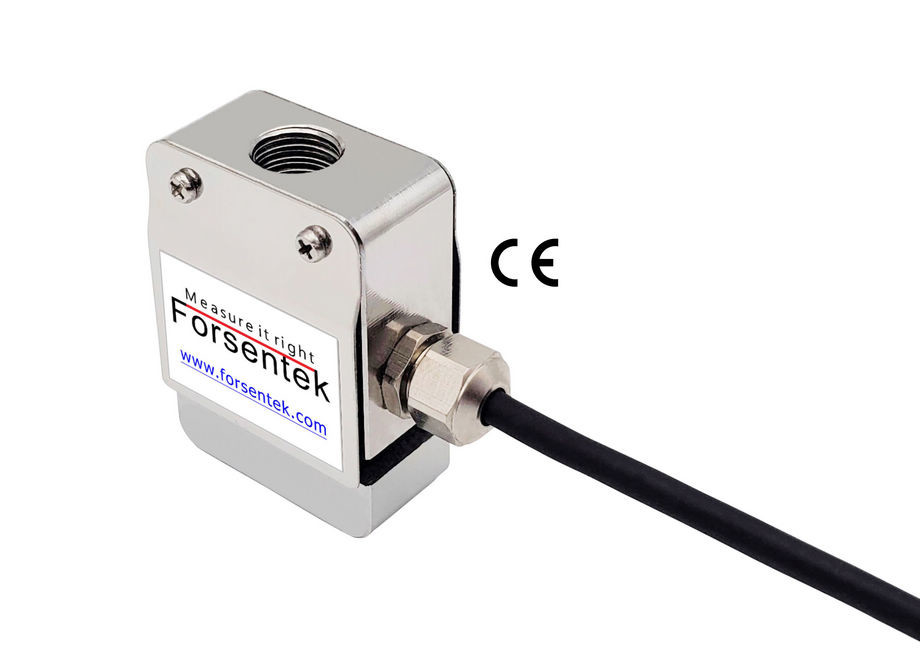

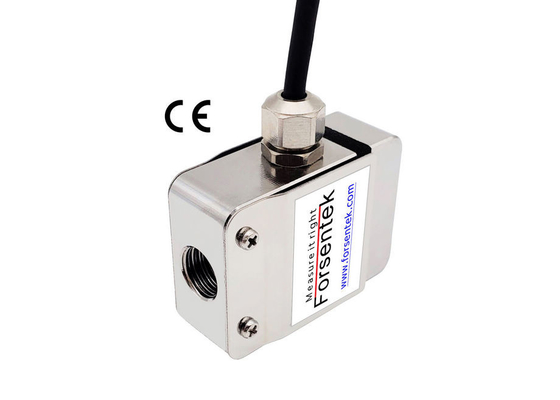

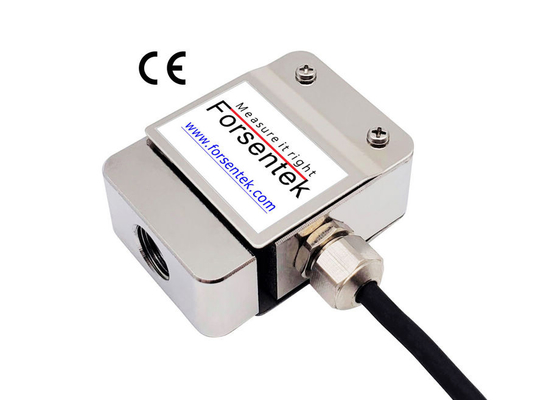

Miniature Compression And Traction Load Cell FSKE is made of stainless steel based on metal foil strain gauge technology. Small size compression and traction force sensor FSKE offers 0-50N / 0-100N / 0-200N / 0-500N / 0-1000N / 0-2000N six rated measuring ranges to choose from,high accuracy with maximum 0.1% nonlinearity of the full capacity. M8 threaded holes located on both ends can be used to mount attachments like load buttons, eye bolts, hooks to fit different applications. Compact design makes Compression/Traction Force Transducer FSKE a perfect option for tension compression force measurement applications with limited space.Typical applications for push pull force sensor FSKE are such as auto process control, connctor insertion/extraction force measurement, material testing machines, tension meters, hand press force measurement, assembly line,etc..Push Pull Load Cell FSKE can also be modified or customized as per request of our clients.
Ordering code: FSKE-50N, FSKE-100N, FSKE-200N, FSKE-500N, FSKE-1kN, FSKE-2kN
Specifications
| Rated capacity |
50N / 100N / 200N / 500N / 1000N / 2000N |
||
| Rated output | 2.0 mV/V | Compensated temperature | -10...+40oC |
| Excitation | 3-15V | Operating temperature | -20...+60oC |
| Zero balance | ±0.05mV/V | Temperature shift zero | ±0.02% R.O./oC |
| Nonlinearity | ±0.1% R.O. | Temperature shift span | ±0.02% R.O./oC |
| Hysteresis | ±0.1% R.O. | Input resistance | 380±30 ohms |
| Nonrepeatability | ±0.05% R.O. | Output resistance | 350±5 ohms |
| Creep(5min) | ±0.05% R.O. | Insulation resistance | >5000Mohms |
| Safe overload | 150% F.S. | Ingress protection | IP65 |
| Ultimate overload | 200% F.S. | Material of element | Stainless steel |
| Cable | Ø3*4000mm 4-core shielded | ||
| Wiring code |
Compression@ |
||
The output range of Compression and Traction Force Transducer FSKE is normally within -30mV...+30mV,
Example: S-Beam Traction Load Cell FSKE-500N with 2.0mV/V rated output powered by 5V DC,the output range is -10mV...+10mV.
A signal conditioner can be used to convert mV signal into 0-5V/0-10V/4-20mA for easy signal processing.
Example: S Type Compression Traction Force Sensor FSKE-200N working with amplifier FSC(4-12-20mA)-24V,the force-current relationship will be 0-200N compression force VS 12-20mA output, 0-200N tension force VS 12-4mA output,which is linear.
Calibration is needed for load cells and force sensors which determines the relationship between the displayed value and true mass by comparison with a known mass.
