Miniature Compression Load Cell 1kg Compression Force Measurement 10N

Miniature Compression Load Cell 1kg Compression Force Measurement 10N

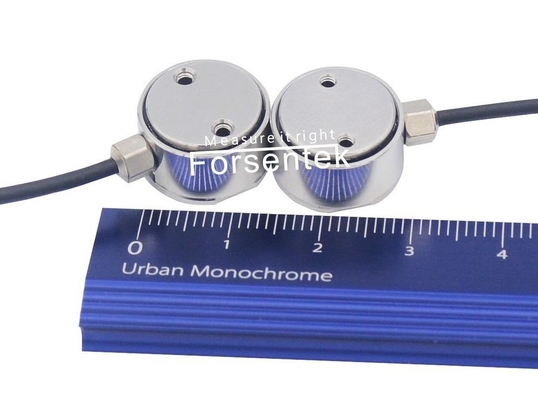

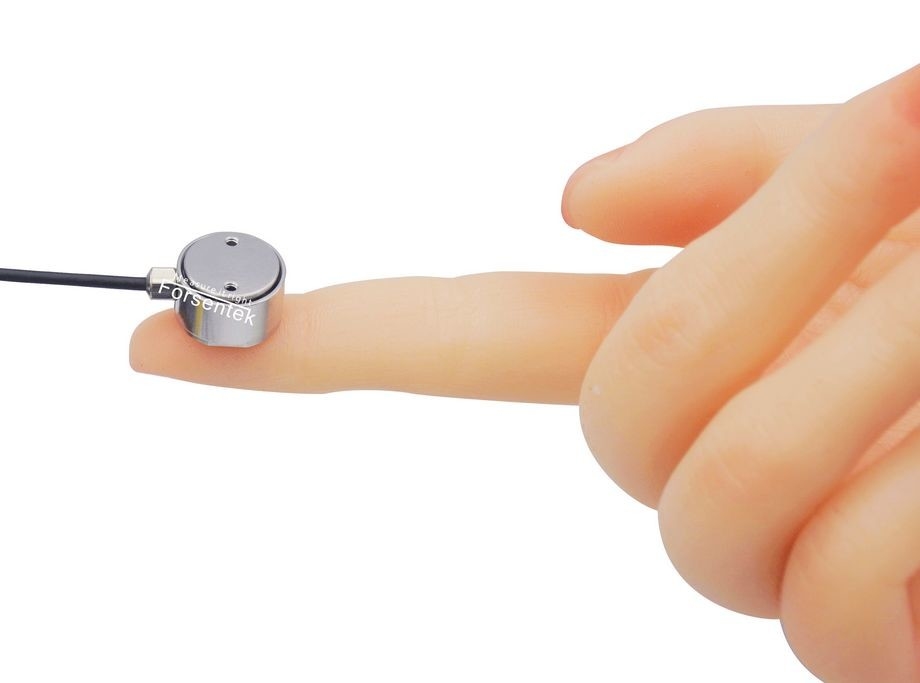

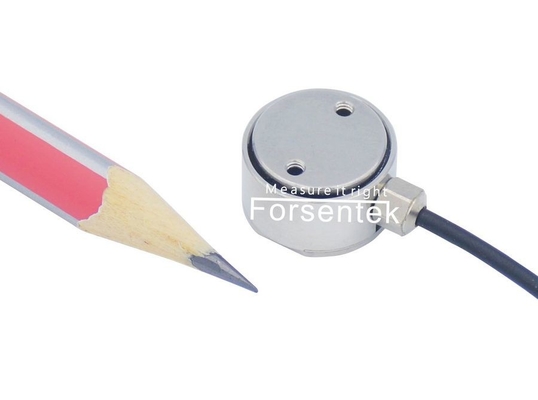

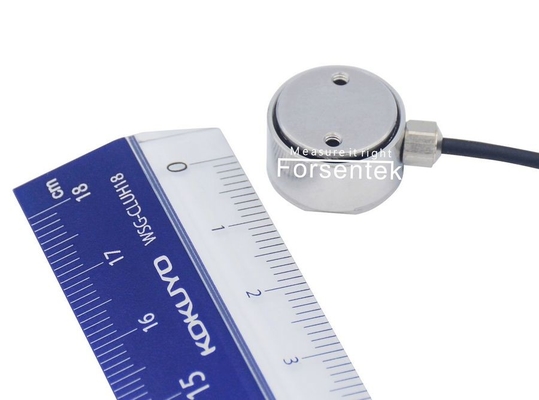

Miniature Compression Sensor FCFK is made of stainless steel based on strain gauge technology to deliver maximum 0.3% non-linearity of the rated capacity. Micro Compression Load Cell FCFK offers 0-10N / 0-20N / 0-50N / 0-100N / 0-200N five rated measuring ranges to choose from, flange to flange mounting,compact design, you may find micro compression sensor FCFK applicable for compression force measurement applications where mounting space is limited, such as mold clamping force measurement, assembly force monitoring, force distribution test,etc..Model FCFK can also be modified or customized as per client's request.

Specifications

A load cell (or loadcell) is a transducer which converts force into a measurable electrical output. Although there are many varieties of loadcells, strain gauge load cells are the most commonly used type which is comprised of a solid metal body on which strain gauges have been secured to form a wheatstone bridge which delivers mV/V output.

Output signal of load cell FCFK:
Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of Miniature Flange Load Cell FCFK is normally around 2.0mV/V.
Power supply of Thrust Force Sensor FCFK is normally within 3-15V.
Load / Capacity is within 0-1.
So the output range of Compression Type Force Transducer FCFK is normally within 0…+30mV.
Example one: Miniature Column Load Cell FCFK-100N with 2.0V/V sensitivity powered by 5V DC,the output range is 0mV...+10mV.
Example two: Miniature Flanged Load Cell FCFK-200N with 2.0mV/V rated output powered by 10V DC,the output range is -0mV...+20mV.

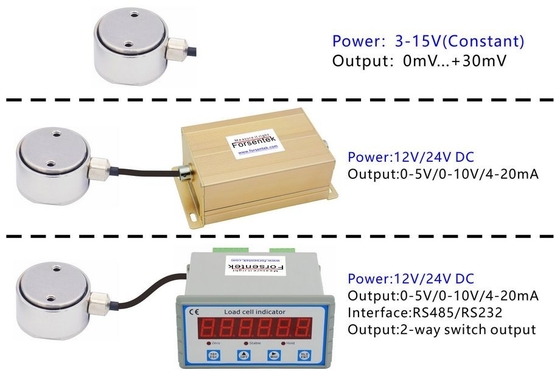

The mV/V output from the wheatstone bridge sometimes can hardly be processed directly, a signal conditioner can be used with the load cell to deliver 0~5V, 0-10V or 4-20mA output.
Example one: Micro Compression Load Cell FCFK-10N working with amplifier FSC(0-10V)-24V,the Load-Voltage relationship will be 0-10N compression force VS 0-10V output, which is linear regardless of the measurement error, 1V output corresponds to 1N compression load, 2V output corresponds to 2N compression load, and so on.
Example two: Miniature Thrust Force Load Cell FCFK-20N working with amplifier FSC(4-20mA)-24V,the Force-Current relationship will be 0-20N compression force VS 4-20mA output, which is linear regardless of the measurement error, 4mA output corresponds to “0” load, 5.6mA output corresponds to 2N thrust force, 12mA output corresponds to 10N thrust force, and so on.
Load cell FCFK can also work with digital indicator FPT to deliver below functions:
-Display force value in real time
-Peak holding to grab the maximum force during testing
-RS485 or RS232 interface
-0-5V/0-10V/4-20mA analog output
-Switch output

Miniature Compression Load Cell FCFK

Click here to download datasheet
