Place of Origin: | China |
Brand Name: | Forsentek |
Model Number: | FSSP |
Minimum Order Quantity: | 1pc |
---|---|
Packaging Details: | Shockproof carton |
Delivery Time: | 3-25 working days |
Payment Terms: | T/T, Western Union, MoneyGram,Paypal |
Supply Ability: | 3225pcs/month |
Type: | Miniature Jr. S-Beam Load Cell | S-beam Jr. Load Cell: | LSB201 |
---|---|---|---|
Force Direction: | Tension/Compression | Output: | Analog Transducer |
Connection: | M3/M4 Threaded Hole | 1lb: | QSH02029 |
2lb: | QSH02030 | 5lb: | QSH02031 |
10lb: | QSH02032 | 25lb: | QSH02033 |
50lb: | QSH02034 | 100lb: | QSH02035 |
Miniature S-Beam Jr. Load Cell 10lb Futek QSH02031 Small Size Force Sensor 50N
Miniature S-Type Load Cell FSSP offers a compact design for a variety of applications. the S Beam Load Cell series provides accuracy, compact design features, micro Junior Load Cell FSSP offers 500gf / 1kgf / 2kgf / 5kgf / 10kgf / 20kgf / 30kgf / 50kgf eight rated capacities to choose from.The mini jr. s beam Pull Load Cell FSSP utilizes metal foil strain gauge technology to deliver 2.0mV/V output with maximum 0.1% non-linearity,the compact design enables s type pull force sensor FSSP to be easily embedded into machinery or test equipment – ideal for packaging machinery, assembly machinery or end-of-line test equipment. The tension sensor features M3/M4 threaded holes on two sides for the mounting of attachments or implements, this micro load cell force sensor can be used for both tension and compression force measurement in applications with limited mounting space. You may find junior S beam load cell FSSP interchangeable with FUTEK jr s-beam load cell LSB201, Mark Miniature Force Sensors Series R04, flintec s-beam force sensor ISA, flintec force transducer ISB,etc..

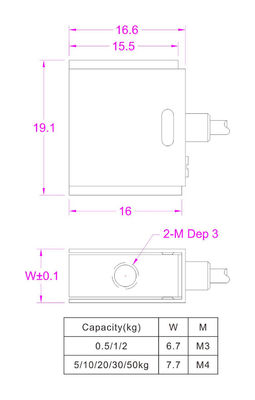

Specifications
Rated capacity |
5N / 500g / 1.1lb 10N / 1kg / 2.2lbf |
||
Rated output | 2.0 mV/V | Compensated temperature | -10...+40oC |
Excitation | 3-12V | Operating temperature | -20...+60oC |
Zero balance | ±0.1mV/V | Temperature shift zero | ±0.03% R.O./oC |
Nonlinearity | ±0.1% R.O. | Temperature shift span | ±0.02% R.O./oC |
Hysteresis | ±0.1% R.O. | Input resistance | 380±30 ohms |
Nonrepeatability | ±0.05% R.O. | Output resistance | 352±5 ohms |
Creep(5min) | ±0.1% R.O. | Insulation resistance | >5000Mohms |
Safe overload | 150% F.S. | Ingress protection | IP50 |
Ultimate overload | 200% F.S. | Material of element | Stainless steel |
Cable | Ø2*4000mm 4-core shielded | ||
Wiring code |
Compression@ |
QSH02029 QSH02030 QSH02031 QSH02032 QSH02033 QSH02034 QSH02035 Futek LSB201
Instruction of load cell output:
Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of Miniature Junior S-beam Load Cell FSSP is around 2.0mV/V.
Power supply of Miniature Push Pull Force Sensor FSSP is normally within 3-12V.
Load / Capacity is within 0-1.
So the output range of Micro Force Load Cell FSSP is normally within -24mV...+24mV for tension/compression force measurement.
Example: Miniature Jr S-beam Load Cell FSSP-2kg with 2.0mV/V sensitivity powered by 10V DC,the output range is -20mV...+20mV.
A signal conditioner can be used with the load cell to deliver -5~5V, 0-10V or 4-20mA output.
Example: Miniature S Type Load Cell FSSP-2kg working with -10-10V amplifier,the Force-Voltage relationship will be 0-2kgf compression load VS 0-10V output,0-2kgf pull load VS 0-(-10V) output,when you get 2V output,it means the current load is 400gf compression force,when you get -1V output,it means the current load is 200gf traction force,and so on.
