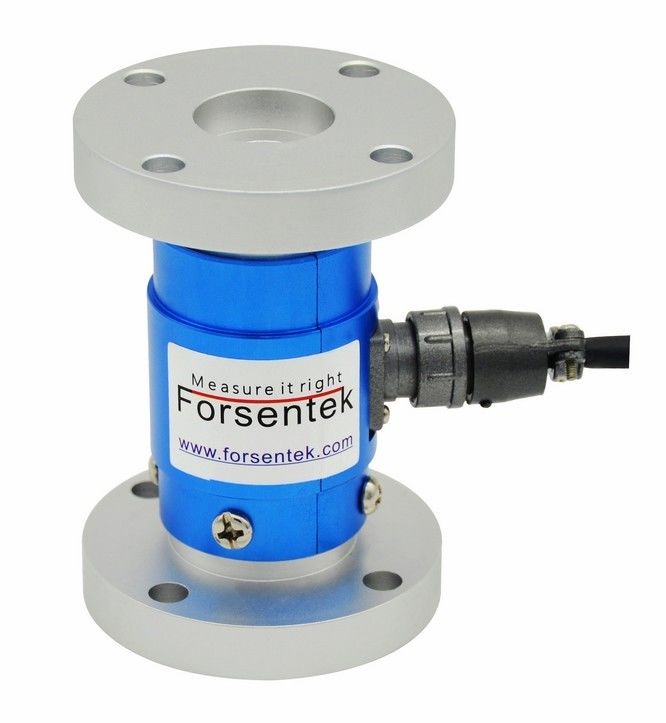

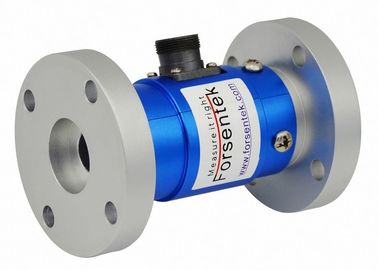

Flange to flange reaction torque sensor torque measurement transducer

Flange to flange reaction torque sensor torque measurement transducer

    • Flange to flange reaction torque sensor torque measurement transducer
    • Flange to flange reaction torque sensor torque measurement transducer
    • Flange to flange reaction torque sensor torque measurement transducer
    • Flange to flange reaction torque sensor torque measurement transducer
    • Flange to flange reaction torque sensor torque measurement transducer
    • Flange to flange reaction torque sensor torque measurement transducer
    • Flange to flange reaction torque sensor torque measurement transducer
  • Flange to flange reaction torque sensor torque measurement transducer

    Product Details:

    Place of Origin: China
    Brand Name: Forsentek
    Certification: CE
    Model Number: FTA

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Packaging Details: Shockproof carton
    Delivery Time: 3-10 working days
    Payment Terms: Western Union, MoneyGram, T/T,Paypal
    Supply Ability: 2688pcs/month
    Contact Now
    Detailed Product Description
    Connection: Flange-to-Flange Capacity: 0-100Nm(Selectable)
    Type: Reaction Type Torque Sensor

    Flange to flange reaction torque sensor torque measurement transducer

    Flange to flange reaction torque sensor torque measurement transducer

    Flange to flange reaction torque sensor torque measurement transducer


    Features

    • Aluminum or alloy steel construction
    • Strain gauge technology,analog output
    • Flange to flange design,easy to insall
    • Non-rotating torque measurement

    Flange to flange reaction torque sensor torque measurement transducer
    Dimensions
    Flange to flange reaction torque sensor torque measurement transducer

    Flange to flange reaction torque sensor torque measurement transducer

    Specifications

    Rated capacity

    0.2N*m / 2kgf*cm / 0.15lb*ft

    0.5N-m / 5kgf*cm / 0.37lb*ft

    1Nm / 10kgf-cm / 0.74lb*ft

    2N*m / 20kgf*cm / 1.5 lb-ft

    3N-m / 30kgf-cm / 2.2lb-ft

    5N*m / 50kgf*cm / 3.7lb-ft

    10N-m / 1kgf-m / 7.4lb*ft

    20Nm / 2kgf*m / 15lb*ft

    30N*m / 3kgf*m / 22lb*ft

    50N-m / 5kgf*m / 37lb*ft

    100N*m / 10kgf*m / 74lb-ft

    Rated output 1.5 mV/V
    Excitation 3-15V
    Zero balance ±0.05mV/V
    Nonlinearity ±0.2% R.O.
    Hysteresis ±0.2% R.O.
    Nonrepeatability ±0.1% R.O.
    Creep(10min) ±0.1% R.O.
    Safe overload 150% F.S.
    Ultimate overload 200% F.S.
    Compensated temp. -10...+40oC
    Operating temp. -20...+60oC
    Temp. shift zero ±0.02% R.O./oC
    Temp. shift span ±0.02% R.O./oC
    Input resistance 350(700) ohms
    Output resistance 350(700) ohms
    Insulation resistance >2000M ohms
    Ingress protection IP62
    Material of element Aluminum alloy/Alloy steel
    Cable Ø5*3000mm 4-core shielded cable
    Wiring code

    Red-Excitation+   Black-Excitation-

    Green-Signal+   White-Signal-


    Flange to flange reaction torque sensor torque measurement transducer
    A torque sensor is a transducer that converts a torsional mechanial input into an electrical output signal. There are two different types for torque transducers:Rotary torque sensor and reaction torque transducer.Reaction torque sensor FTA is designed to measure non-rotating torque which is also known as reaction torque.The standard output of FTA is normally between -20~20mV which is proportional to applied torque,signal conditioner can be used to get ±5V,±10V,0-5V,0-10V or 4-20mA output for easy data acquisition.
    Flange to flange reaction torque sensor torque measurement transducer
    Flange to flange reaction torque sensor torque measurement transducer
