Small load cell 5kg 10kg 20kg 50kg 100kg 200kg button type load cell

Small load cell 5kg 10kg 20kg 50kg 100kg 200kg button type load cell

    • Small load cell 5kg 10kg 20kg 50kg 100kg 200kg button type load cell
    • Small load cell 5kg 10kg 20kg 50kg 100kg 200kg button type load cell
    • Small load cell 5kg 10kg 20kg 50kg 100kg 200kg button type load cell
    • Small load cell 5kg 10kg 20kg 50kg 100kg 200kg button type load cell
  • Small load cell 5kg 10kg 20kg 50kg 100kg 200kg button type load cell

    Product Details:

    Place of Origin: China
    Brand Name: Forsentek
    Model Number: FC20

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Packaging Details: Shockproof carton
    Delivery Time: 3-20 working days
    Payment Terms: T/T, Western Union, MoneyGram,Paypal
    Supply Ability: 5000pcs/month
    Contact Now
    Detailed Product Description
    Material: Stainless Steel Capacity: 2000kg 1000kg 500kg 300kg 200kg 100kg 50kg 30kg 20kg 10kg 5kg
    Output: Analog Output Principle: Strain Gauge Load Cell

    Small load cell button type load cell

    button type load cell



    load cell datasheet
    Features

    • Stainless steel construction
    • Button type load cell,small size with 20mm outer diameter
    • Mounting holes on the bottom,easy to install
    • Strain gauge technology,analog output
    • Compression force measurement for limited space
    • Widely used for force overload protection,pressure distribution measurement,auto equipment,production line,keyboard press force test.etc.

    Dimensions(unit in "mm“)
    button load cell FC20

    Specifications

    Rated capacity2000kg 1000kg 500kg 300kg 200kg 100kg 50kg 30kg 20kg 10kg 5kg
    Rated output 1.2-1.8mV/V
    Excitation 5-12V
    Zero balance ±3% of R.O.
    Nonlinearity ±0.5% of R.O.
    Hysteresis ±0.5% of R.O.
    Nonrepeatability ±0.2% of R.O.
    Creep(30min) ±0.2% of R.O.
    Safe overload 150% of F.S.
    Ultimate overload 200% of F.S.
    Compensated temperature -10...+40oC
    Operating temperature -20...+60oC
    Temperature shift zero ±0.01% R.O./oC
    Temperature shift span ±0.01% R.O./oC
    Input resistance 350±30 ohms
    Output resistance 350±10 ohms
    Insulation resistance >5000M ohms
    Ingress protection IP65
    Material of element Stainless steel
    Cable Ø3*2800mm(Longer cable available)
    Wiring code

     Red--Exc+   Black--Exc-
     Green--Sig+ White--Sig-



    button load cell
    A load sensor is a transducer that converts a load or force acting on it into electronic signal which is proportional to the load or force being applied.The measured load or force causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply,the output signal between Sig+ and Sig- will change proportionally,thus the load/force can be measured by measuring the output signal from the load cell.

    button load cell 0-10V
    Button load cell FC20 outputs millivolt signal ranging 0-15mV, and signal amplification may be required for most applications, a load cell signal conditioner can be used to get 0-5V, 0-10V or 4-20mA signal which is proportional to applied force.The amplified output is can be easily processed by PLCs and data acquisition software.

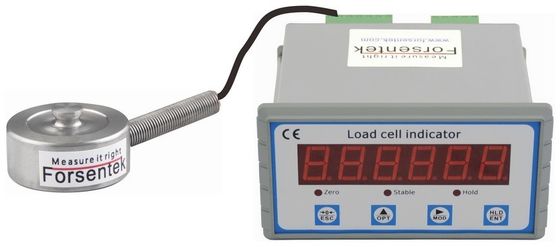

    button load cell with indicator
    The applied force can be displayed through a force indicator,force meter FPT is integrated with high accuracy/low noise 24 bit Sigma-Delta ADC,sampling speed up to 960Hz makes it suitable for both static and dynamic measurement,supports RS485 or RS232 communication port,can also output 0-5V,0-10V,0-20mV or 4-20mA amplified signal.
