    Detailed Product Description
    Material: Alloy Steel Capacity: 5/10/20/30/50/70/100/200/250/300/500/600/800/1000KN
    Output: Analog Output Principle: Strain Gauge Load Cell

    Pancake load cell spoke type load cell

    pancake load cell


    Features

    • Alloy steel construction,low profile design,easy to install
    • Strain gauge technology,analog output
    • Temperature compensated,high performance
    • Widely usede for testing machines,weighing systems like hopper scales,tank weighing,etc..

    Dimensions
    pancake load cell

    Specifications

    Rated capacity 5KN 10KN 20KN 30KN 50KN 70KN 100KN 200KN 250KN 300KN 500KN 600KN 800KN 1000KN
    Rated output  2.0±10%mV/V
    Excitation  5-15V
    Zero balance  ±2% of R.O.
    Nonlinearity  ±0.05% of R.O.
    Hysteresis  ±0.05% of R.O.
    Nonrepeatability  ±0.03% of R.O.
    Creep(30min)  ±0.03% of R.O.
    Safe overload  150% of F.S.
    Ultimate overload  200% of F.S.
    Compensated temperature  -10...+40oC
    Operating temperature  -20...+60oC
    Temperature shift zero  ±0.05% R.O./10oC
    Temperature shift span  ±0.05% R.O./10oC
    Input resistance  385±30 ohms
    Output resistance  350±10 ohms
    Insulation resistance  >5000M ohms
    Ingress protection  IP66
    Material of element  Alloy steel
    Cable Ø5*3000mm(Longer cable available)
    Wiring code

    Red--Exc+   Black--Exc-
    Green--Sig+ White--Sig-


    A load cell sensor is a transducer that converts a load or force acting on it into electronic signal which is proportional to the load(or force) being applied.The measured load or force causes deformation of the measuring element(elastic body),the bonded strain gauge deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply,the output signal between Sig+ and Sig- will change proportionally,thus the load/force can be measured by measuring the output signal from the load cell.

    compression load cell 100KN

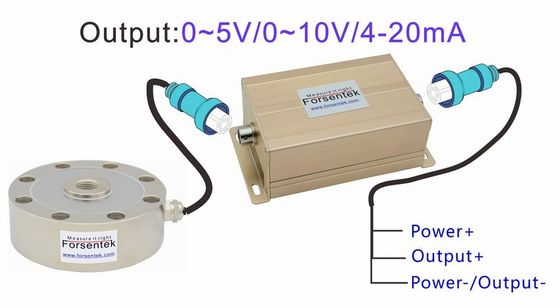

    Pancake load cell FCM outputs millivolt signal ranging 0-30mV,and signal amplification may be required for most applications,a load cell signal transmitter can be used to get 0-5V,0-10V or 4-20mA signal for easy data acquisition afterwards.

    pancake load cell 0-10V
    Weight indicator can be used to display the measured value,load cell display FPT is integrated with high accuracy 24 bit Sigma-Delta ADC,sampling speed up to 960Hz,supports RS485 or RS232 communication port,can also output 0-5V,0-10V,0-20mV or 4-20mA amplified signal.
    pancake load cell with display
