Mini torque sensor for torque testers small torque transducers

Mini torque sensor for torque testers small torque transducers

    • Mini torque sensor for torque testers small torque transducers
    • Mini torque sensor for torque testers small torque transducers
    • Mini torque sensor for torque testers small torque transducers
    • Mini torque sensor for torque testers small torque transducers
    • Mini torque sensor for torque testers small torque transducers
    • Mini torque sensor for torque testers small torque transducers
    • Mini torque sensor for torque testers small torque transducers
    • Mini torque sensor for torque testers small torque transducers
    • Mini torque sensor for torque testers small torque transducers
    • Mini torque sensor for torque testers small torque transducers
  • Mini torque sensor for torque testers small torque transducers

    Product Details:

    Place of Origin: China
    Brand Name: Forsentek
    Certification: CE
    Model Number: FTE

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Packaging Details: Shockproof packing
    Delivery Time: 7-15 working days
    Payment Terms: Western Union, T/T,Paypal, MoneyGram
    Supply Ability: 2000pcs/month
    Contact Now
    Detailed Product Description
    Type: Reaction Torque Sensor Capacity: 01NM 0.2NM 0.5NM 1NM 2NM 3NM 5NM 10NM 15NM 20NM
    Output: Analog Structure: Flange-to-flange

    Mini torque sensor for torque tester small torque transducers

    torque sensor for torque tester

    torque sensor pdf
    Features

    • Aluminum construction,miniature size
    • Flange to flange structure,easy to insall
    • Analog output,high accuracy
    • Reaction torque measurement
    • Widely used for torque testers
    • Customizable

    mini torque sensor
    Dimensions(unit in "mm")
    small torque sensor FTE
    torque sensors
    Specifications

    Capacity

    0.1NM 0.2NM 0.5NM 1NM 2NM 3NM

    5NM 10NM 12NM 15NM 20NM

    Rated output 1.0 mV/V
    Excitation 3-15V
    Zero balance ±2% R.O.
    Nonlinearity ±0.2% R.O.
    Hysteresis ±0.2% R.O.
    Nonrepeatability ±0.1% R.O.
    Creep(10min) ±0.1% R.O.
    Safe overload 150% F.S.
    Ultimate overload 200% F.S.
    Compensated temp. -10...+40oC
    Operating temp. -20...+60oC
    Temp. shift zero ±0.02% R.O./oC
    Temp. shift span ±0.01% R.O./oC
    Input resistance 700ohms
    Output resistance 700ohms
    Insulation resistance >2000M ohms
    Ingress protection IP50
    Material of element Aluminum alloy/Stainless steel
    Cable Ø3.5*3000mm 4-core shielded
    Wiring code Red--E+ Black--E- Green--S+ White--S-


    Mini torque sensor for torque testers
    torque transducers

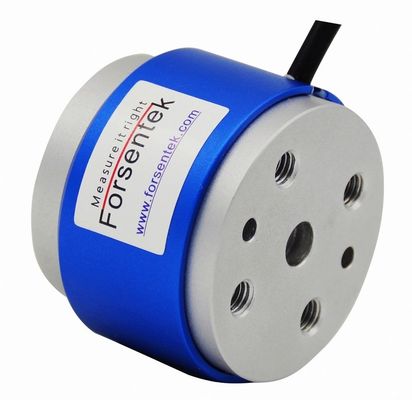

    A torque sensor is a transducer that converts a torsional mechanial input into an electrical output signal.Mini torque sensor FTE is designed to measure non-rotating torque which is also known as reaction torque in both clockwise and counterclockwise direction.
    torquemeter

    Miniature torque transducer FTE utilizes strain gauge technology,compact size,dual-flange design,analog output,working with signal conditioner can get ±5V,±10V,0-5V,0-10V or 4-20mA output which is proportional to applied torque.
    torque sensor 0-10V

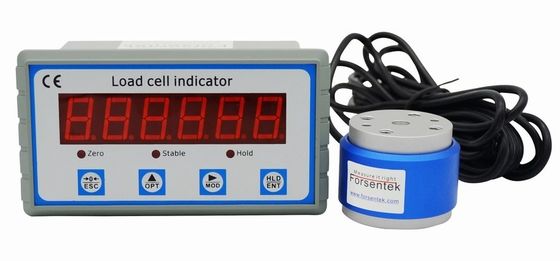

    Torque meter FPT can be used to display the real time torque value,indicator FPT is integrated with high accuracy 24-bit ADC,sampling speed up to 960Hz which makes it suitable for both static torque measurement and dynamic torque measurement. Modbus RTU protocol is supported through RS485 or RS232 communication interface;amplified analog output 0-10V or 4-20mA is achievable from the display.
    torque measurement unit
